Lighting

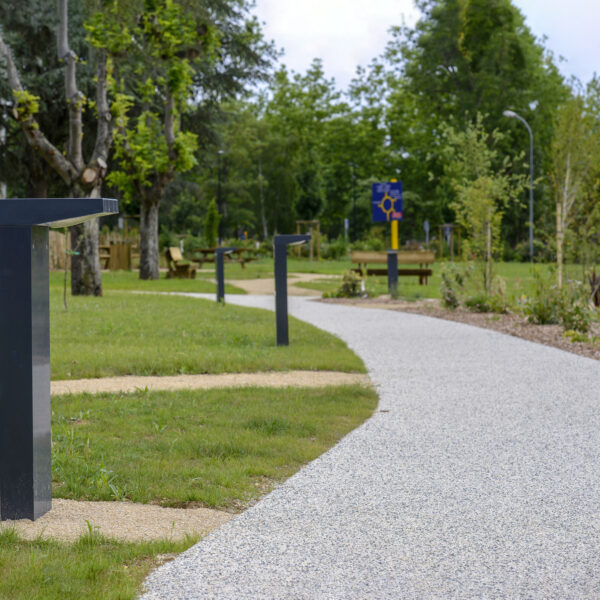

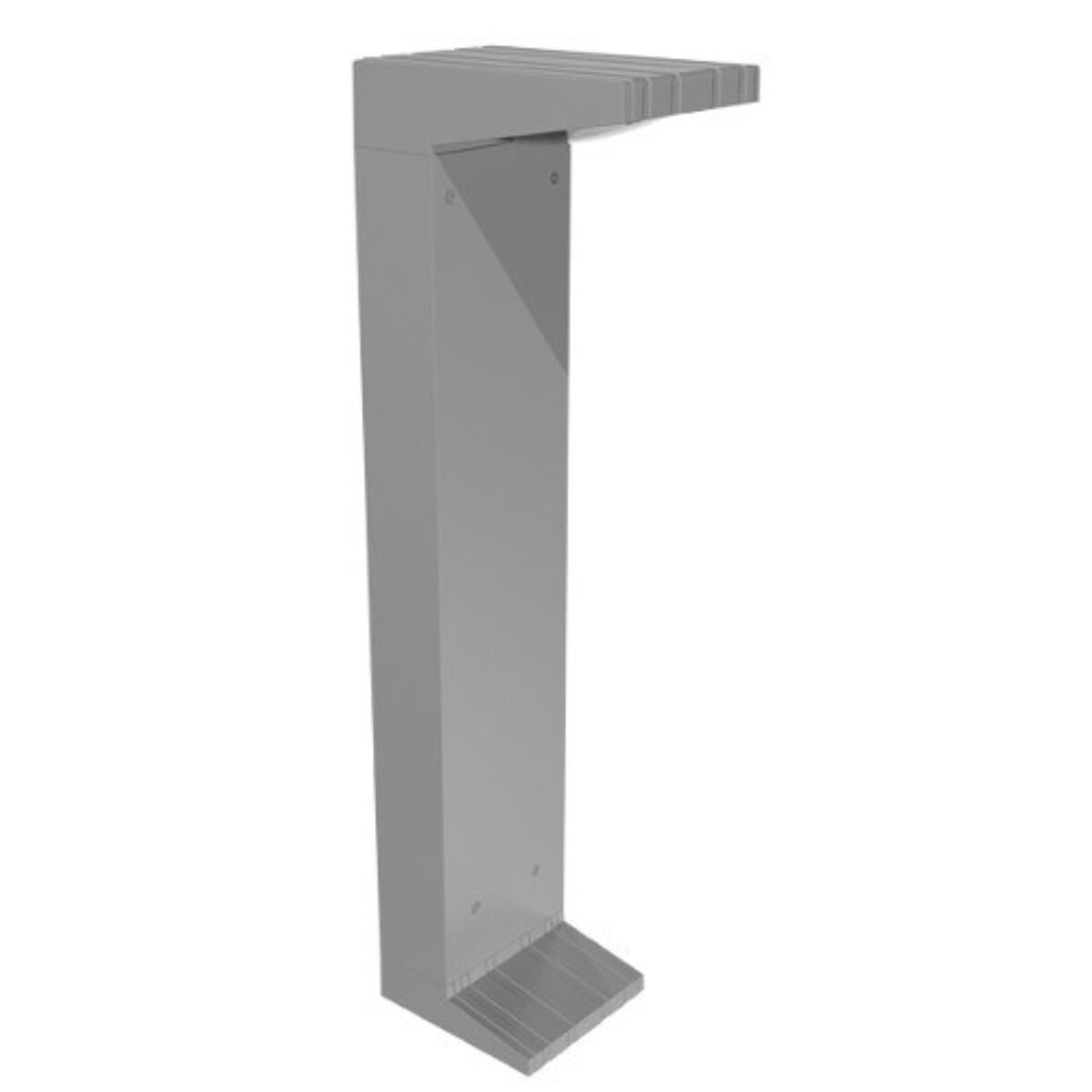

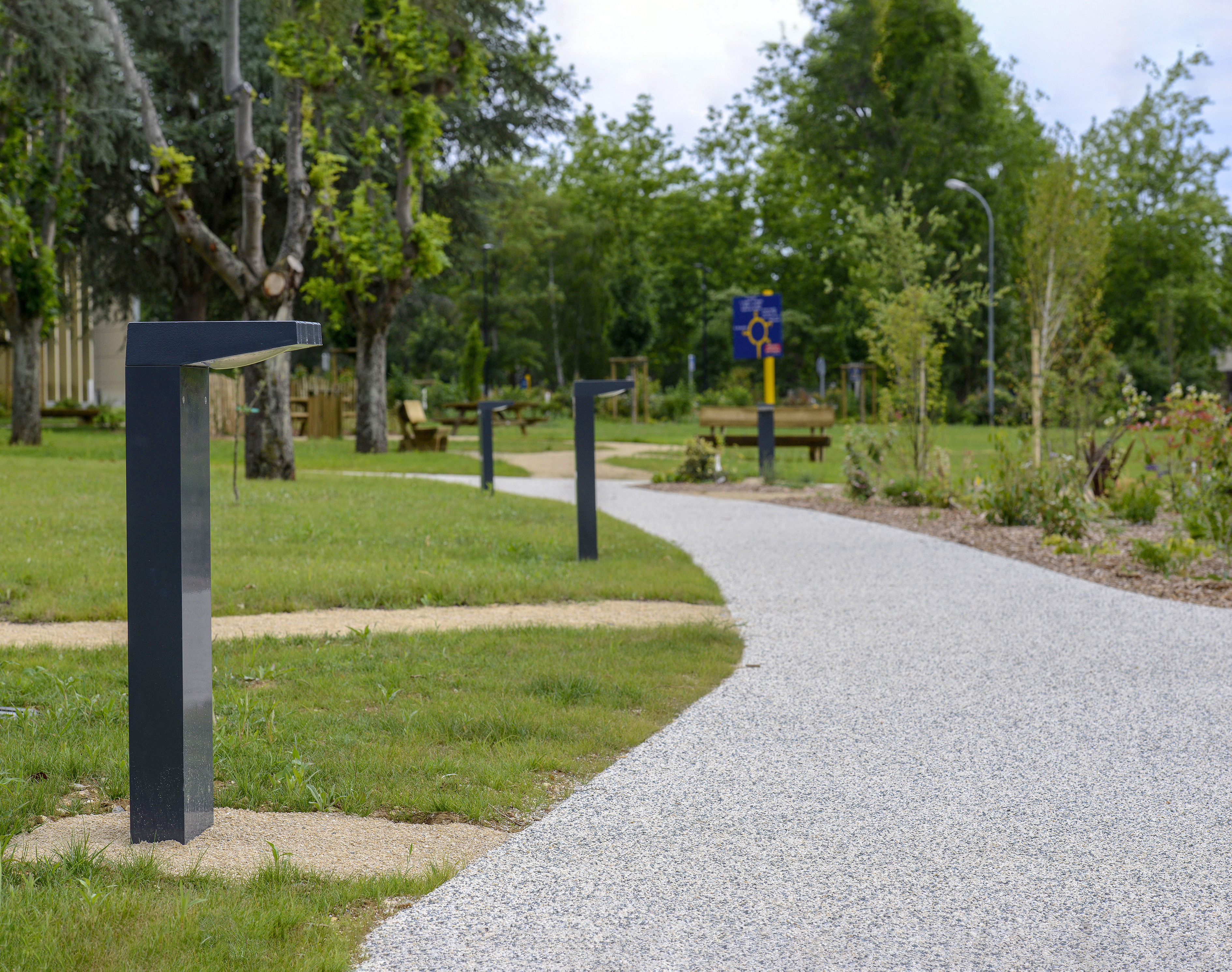

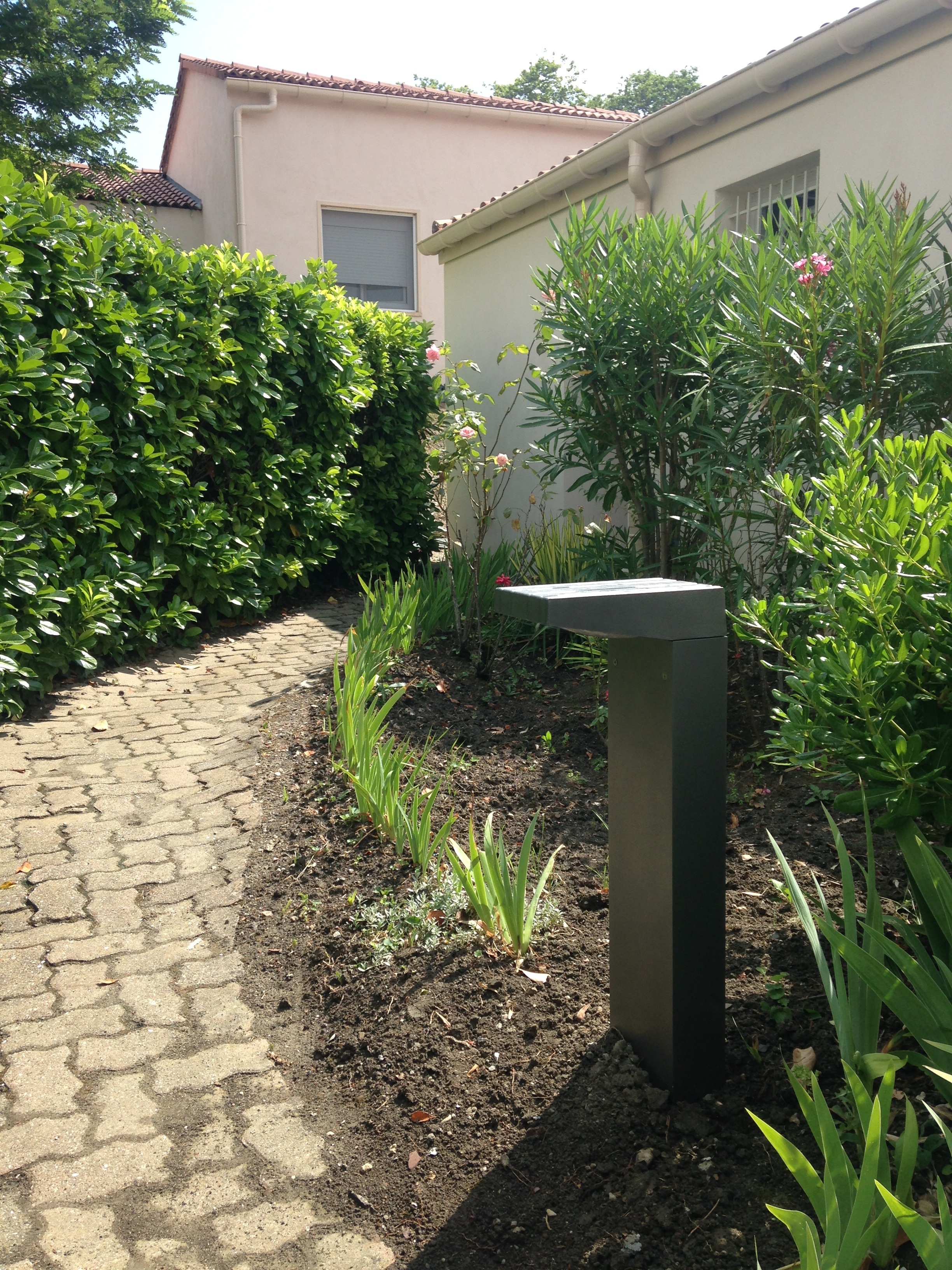

Taiga Bollard

design by Eclatec

Eight models of LED bollards now appear in the catalogue, including five recently added to reinforce the ECLATEC offering; these five latest models meet PMR* standards
(source allowing average lighting greater than 20 Lux, depending on the installation):

- TAÏGA: this bollard reuses the minimalist aesthetic principles of the poles in the TAÏGA range.


APPLICATIONS

Icon Residential streets

Residential streets

Icon Residence areas

Residence areas

Icon Parking lots

Parking lots

APPLICATIONS

DESCRIPTION

• Lighting head and module in die-cast aluminium
• Aluminium profile 200 x 100mm tube
• Polycarbonate bowl
• Polyester powder coating, any colour available
• IP 66 Module
• IK 10
• Class I or II
• Weight: 23 kg
• Standard BLS LED strips equipped with QUADRALENS lenses
• Colour temperatures:
- 2400 K, 2700 K, 3000 K and 4000 K

CITIZEN REFERENCE POINTS

• Materials used:
- Steel 56%, Aluminium 39%, Plastic 2%, Other 3%
• Complies with the RoHS directive
• High recyclability rate

INSTALLATION

• Cast iron base
• Internal fixing using 4 anchor rods, Ø 12 mm

MAINTENANCE

• Removable lighting head
• Access to the equipment after removal of the profiled tube
