Lighting

TEAM

design by Eclatec

Eight models of LED bollards now appear in the catalogue, including five recently added to reinforce the ECLATEC offering; these five latest models meet PMR* standards
(source allowing average lighting greater than 20 Lux, depending on the installation):

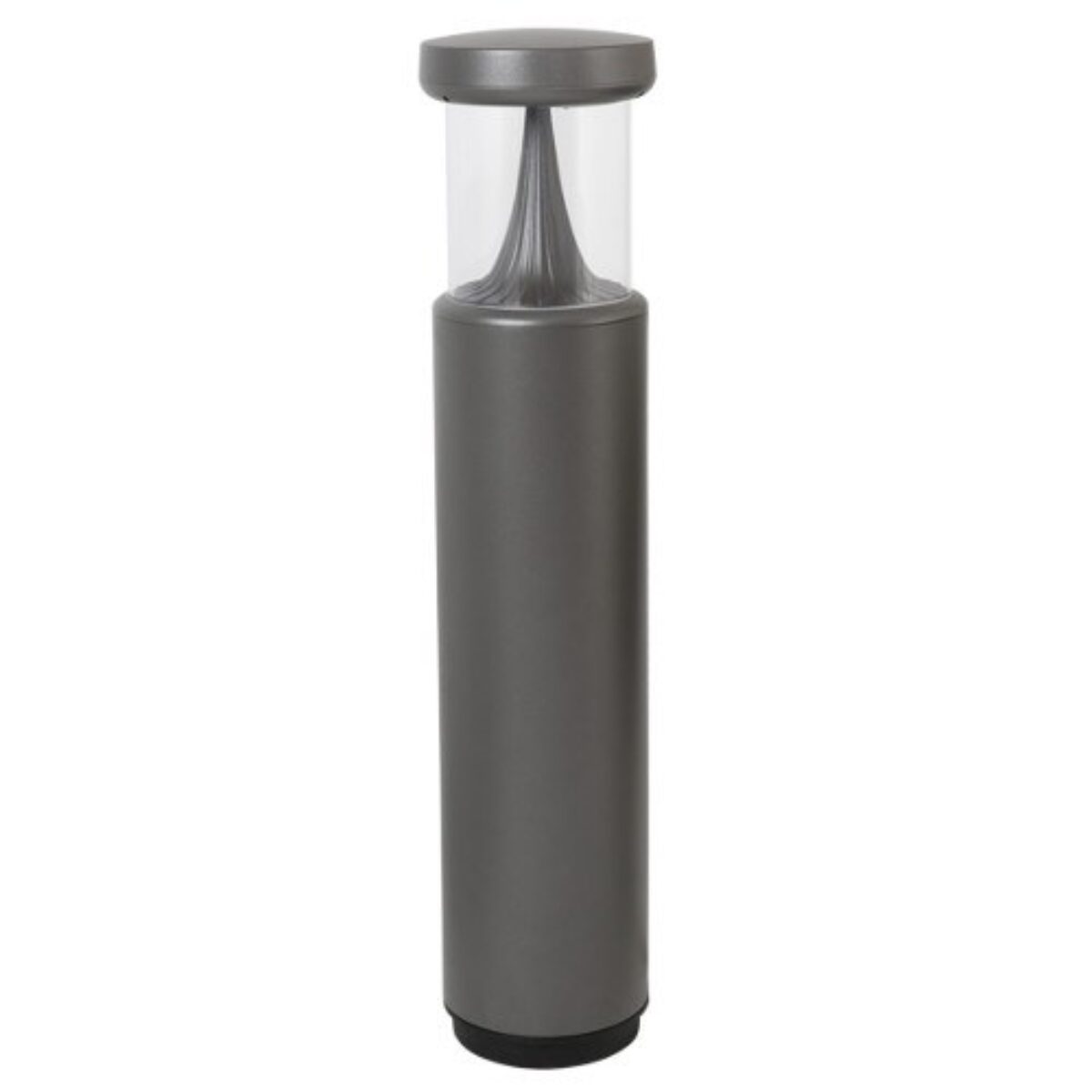

- TEAM: with its cylindrical form, TEAM has a more uniform distribution.


APPLICATIONS

Icon Footpaths

Footpaths

Icon Residence areas

Residence areas

Icon Parking lots

Parking lots

APPLICATIONS

DESCRIPTION

  • Aluminium profile 200 mm tube
  • Die-cast aluminium cap, polycarbonate bowl
  • Polyester powder coating finish, choice of colours
  • IP 66 Module / IK 10 - 60 joules / Class I or II
  • Weight: 14,2 kg
  • ORALENS mono lenses, ECL and EAH distribution
  • Specific LED source
  • Colour temperatures: 4000K and 3000K

CITIZEN REFERENCE POINTS

• Materials used:
- Aluminium 60%, Steel 28%, Plastic 7%, Other 5%
• Complies with the RoHS directive
• High recyclability rate

INSTALLATION

• Cast iron base
• Internal fixing using 3 anchor rods, Ø 12 mm on Ø 134 mm

MAINTENANCE

• Access to the LED module and equipment by removal of the profiled tube
