CHENONCEAUX

Lighting
← →

CHENONCEAUX: French Cultural Heritage

The CHENONCEAUX is our prince in the range.

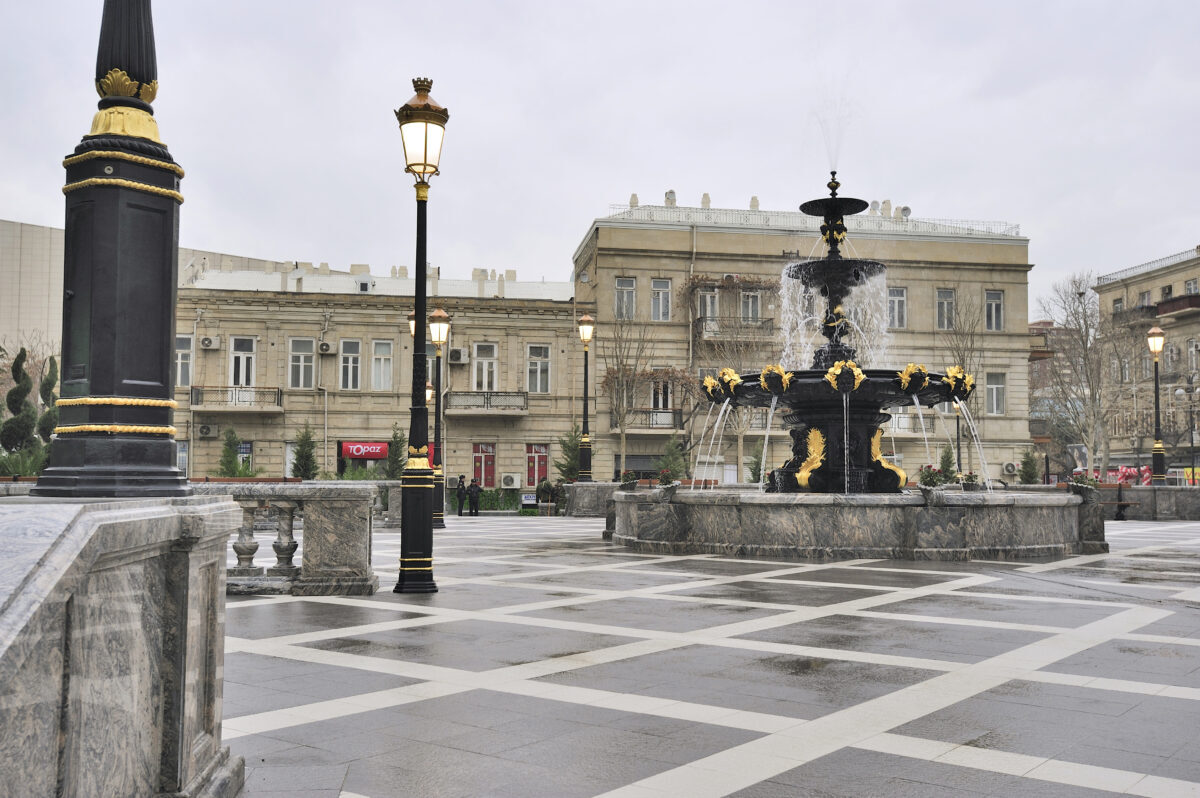

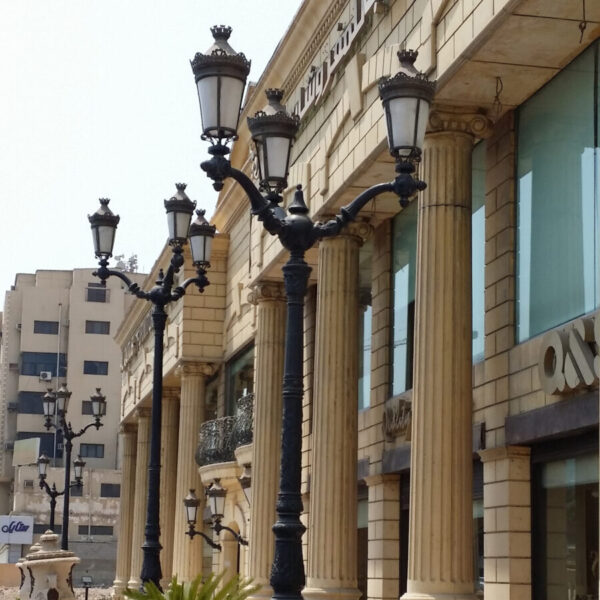

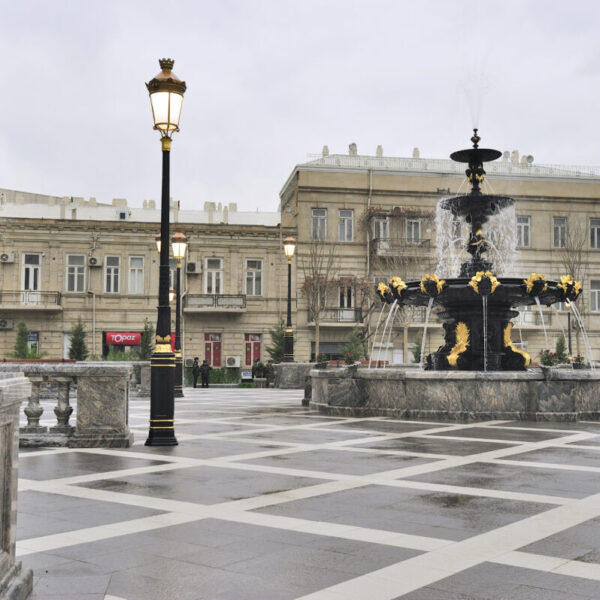

For decades an unmistakable sight in various French cities and in well-known tourist spots and determining the most famous street in France; the Champs Elysee.

We guard this piece of French heritage with the greatest care and we subtly adapt it to the latest requirements for public lighting without affecting the class, elegance and tradition of this luminaire.

Are you bringing this refined piece of heritage to the Netherlands?

APPLICATIONS

Cycle paths

Footpaths

Residential streets

Residence areas

APPLICATIONS

• Mounting: suspended and post top
• Recommended heights: 4 to 6 m
• Urban streets, pedestrians, cycle paths, squares

DESCRIPTION

Available in 2 sizes: Chenonceaux II and Chenonceaux III
3 polycarbonate bowls aluminium version: PHC: deep clear polycarbonate bowl PHS: deep structured polycarbonate bowl PHO: deep opaline polycarbonate bowl
Polyester powder coating, any colour available
Varnish on copper
IP 66
Chenonceaux III: IK 10
Class I or II
2 types of sources:
- Chenonceaux II sources
- Chenonceaux III module (ORALED 1 module type) with ORALENS lenses, module painted 2150 or 2900 sanded grey
Colour temperature: 4000 K and 3000 K

CITIZEN REFERENCE POINTS

• Materials used:
- Chenonceaux II aluminium version: Aluminium 78%, Plastic 14%, Steel 6%, Other 2%.
- Chenonceaux II bronze/copper version: Bronze 69%, Plastic 15%, Other 11%, Copper 5%.
- Chenonceaux III aluminium version: Aluminium 79%, Plastic 11%, Other 7%, Steel 3%.
- Chenonceaux III bronze/copper version: Bronze 69%, Plastic 15%, Other 11%, Copper 5%.
• Complies with the RoHS directive
• High recyclability rate

WATERPROOFING

• IP 66 waterproofing in accordance with the standard EN 60 529
• Extruded silicone gasket - high temperature on the body and glass
• Breathing system with activated carbon filter

MECHANICAL INTERFACES

Suspended: standard, with threaded swivel joint Ø 27 pdg (G3/4”)
Post top: clearance hole for a 27 mm gas thread

DIMENSIONS

CHENONCEAUX II:
Ø: 390mm
Height: post top: 740mm suspended: 770mm
Weight: 7,2kg
Scx: 0,12m2

CHENONCEAUX III:
Ø: 500mm
Height: post top: 920mm suspended: 975mm
Weight: 15,3kg
Scx: 0,23m2
