CHORUS

design by Eclatec

CHORUS: Fits everything

No fuss and no frills about the Chorus' spherical, smooth design.

Sounds simple, but the application possibilities of the CHORUS are enormous.

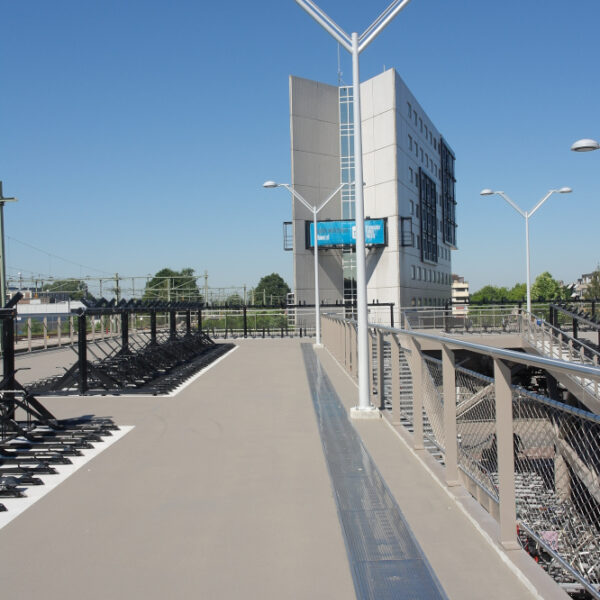

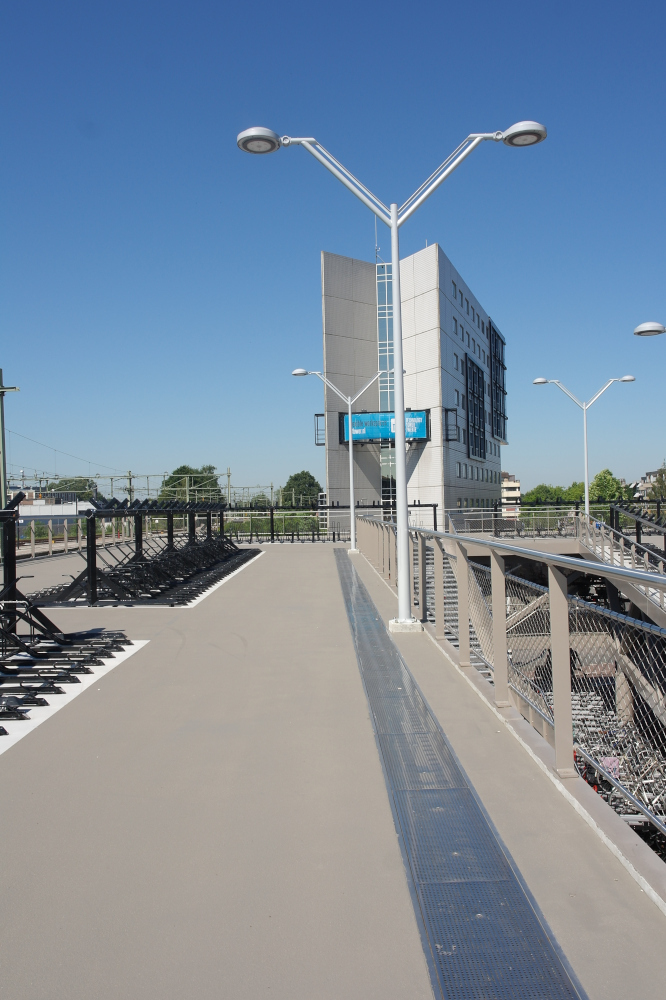

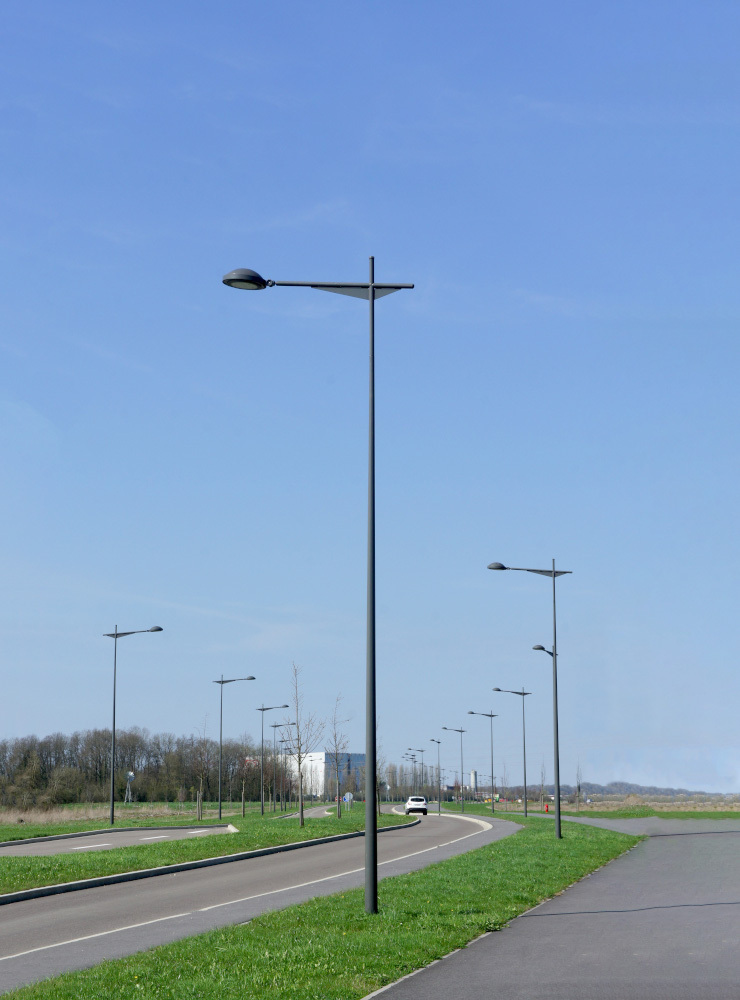

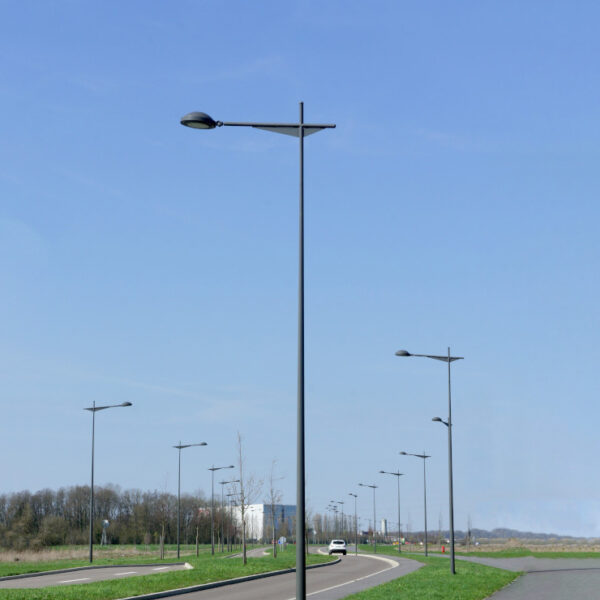

Post top, pendant, on a bracket or a span, on a wall arm or bracket, the CHORUS fits everything.

The wide choice of light colors and lenses makes the CHORUS an asset in public spaces.

APPLICATIONS

Icon cycle-paths

Cycle paths

Icon Footpaths

Footpaths

Icon Residential streets

Residential streets

Icon Residence areas

Residence areas

Icon Parking lots

Parking lots

APPLICATIONS

• Mounting: top, bitop and side entry
• Chorus 45: Pedestrian areas, cycle paths, residential areas, street lighting
Chorus 55: Roads, secondary urban and inter-urban streets
• Recommended heights:
Chorus 45: 4 to 6 m
Chorus 55: 6 to 10 m

DESCRIPTION

• Luminaire available in 2 sizes: Chorus 45 and Chorus 55 • Body and frame in injected die-cast aluminium
• Spun aluminium dome
• Polyester powder coating, any colour available
• IP 66
• Class I or II
• 2 types of sources:
ORALED 1 and 2 modules :
- equipped with an ORALENS mono lens in PMMA, IK 08, module colour grey 2150 sanded or 2900 sanded
- colour temperature: 3000 K or 4000 K

REOLED 1 and 2 modules:
- equipped with BLS with QUADRALENS lenses and PC bowl, IK 10, module colour grey 2900 sanded
- colour temperature: 2400 K, 2700 K, 3000 K or 4000 K

CITIZEN REFERENCE POINTS

• Materials used:
- Chorus 45: Aluminium 84%, Other 9%, Steel 4%, Plastic 3%
Chorus 55: Aluminium 86%, Other 7%, Steel 4%, Plastic 3%

• Complies with the RoHS directive
• High recyclability rate

WATERPROOFING

• IP 66 waterproofing in accordance with the standard EN 60 529
• Extruded pneumatic silicone gasket
• Cable gland with anchoring device
• Breathing system with activated carbon filter

MECHANICAL INTERFACES

• LRL: Chorus Side entry with plain swivel joint coupled with sleeve for bracket end with external Ø 60 mm. Tilts from -90° to + 90°

• LRM: Chorus Smooth Lateral Ball with wrapping sleeve for the end of the cross-arm Ø 60 mm and Ø 42 mm outside

• LR: Chorus side entry with swivel joint and Ø 3⁄4” thread. Tilts from -90° to + 90°

• Top or Bitop fitting for pole Ø 60/62 mm / l=100 mm
For pole Ø 76 mm top, optional spigot A Luminaire tilted at 0° and 10°

• LL: Chorus side entry coupled with sleeve for bracket end with external Ø 60 mm

• Chorus on cast aluminium plate

• Chorus on cast aluminium wall bracket

• SR: Chorus suspended with swivel joint

• CATELUX: Chorus with SM Ø 27 pdg (G3/4”) fixation. Fixation on 5 to 14 mm diameter mechanical cable

• SCO: Chorus on catenary mounting. Fixation on 5 to 14 mm diameter mechanical cable

DIMENSIONS

CHORUS 45
Ø: 455mm Height: 175/158mm
Weight: 9,9kg
Scx: 0,07m2

CHORUS 55
Ø: 555mm Height: 210/193mm
Weight: 13,7kg
Scx: 0,09m2

CONNECTIVITY

• 0-10V
• DALI
• SR+Zhaga (D4I)
• Bluetooth
