ELIPT

design by J.M. Wilmotte

ELIPT is a well-bred luminaire, a cross between deep appreciation of the lines and rigorous control of its volumes. Associated with a rich combination of cross-arms, ELIPT maintains a timeless balance under all circumstances.

Its subtle modernism is most welcome in all contexts, bringing energy and dynamism.

ELIPT accepts ORALED modules 1 and 2 or REOLED modules 1 and 2. In X version, ELIPT receives XEOLED modules 1 and 2.

The luminaire is associated with a rich choice of rods and cross-arms.

APPLICATIONS

Icon cycle-paths

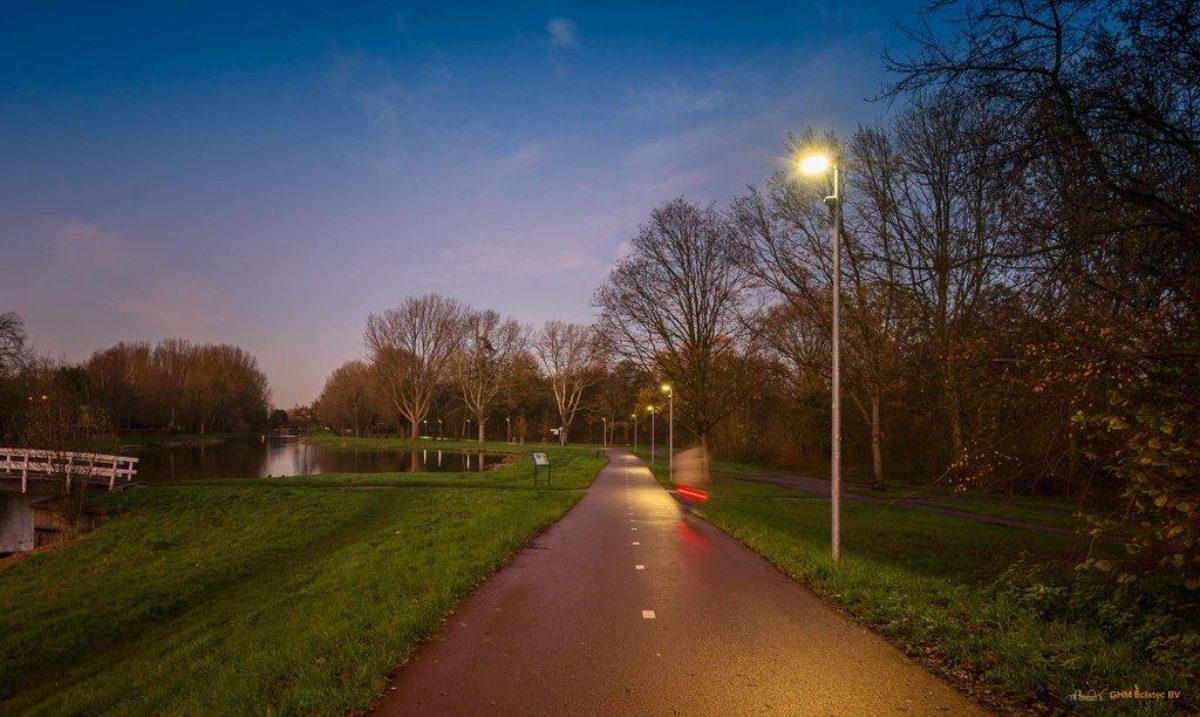

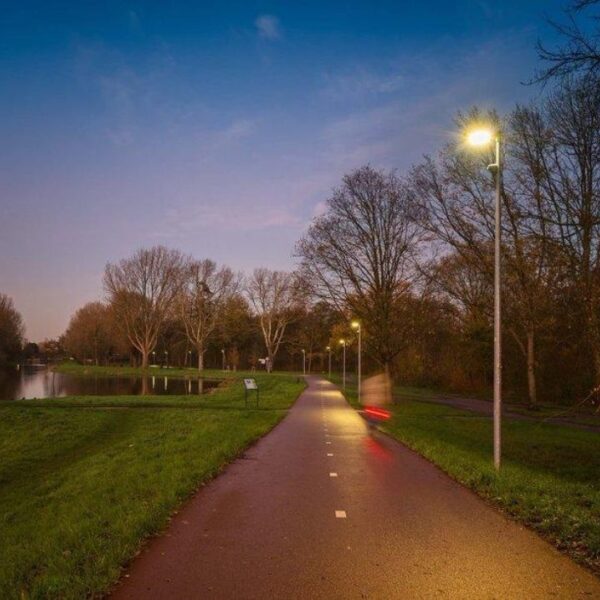

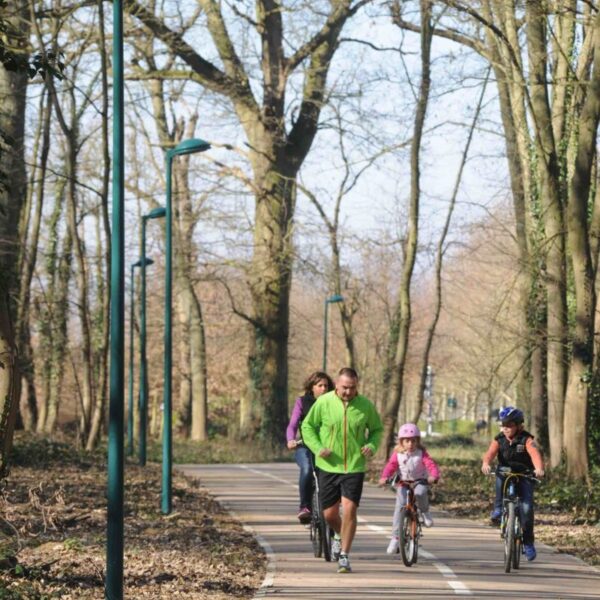

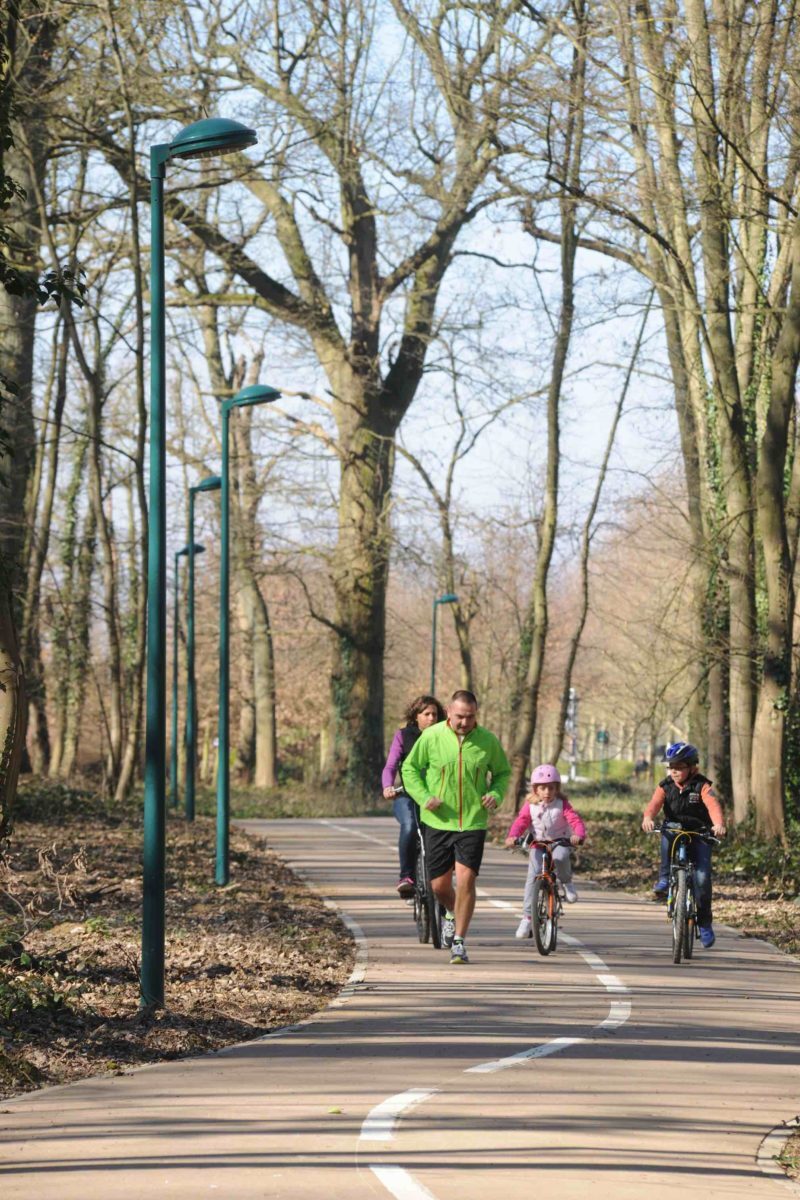

Cycle paths

Icon Footpaths

Footpaths

Icon Residential streets

Residential streets

Icon Main roads

Main roads

Icon Terrain lighting

Terrain lighting

Icon Residence areas

Residence areas

Icon Parking lots

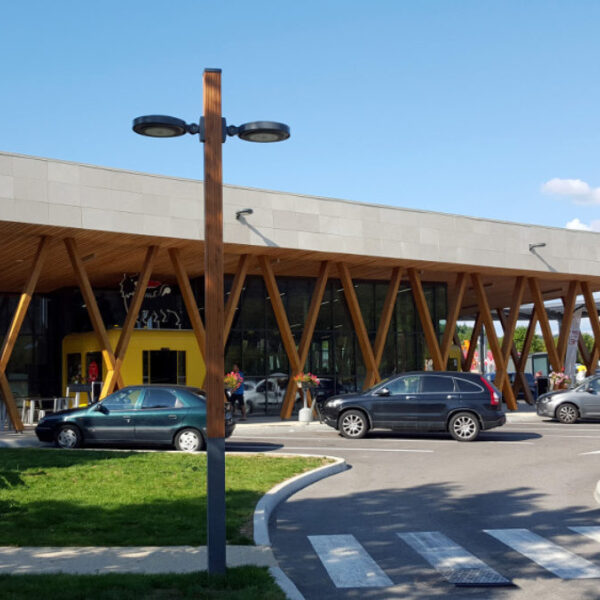

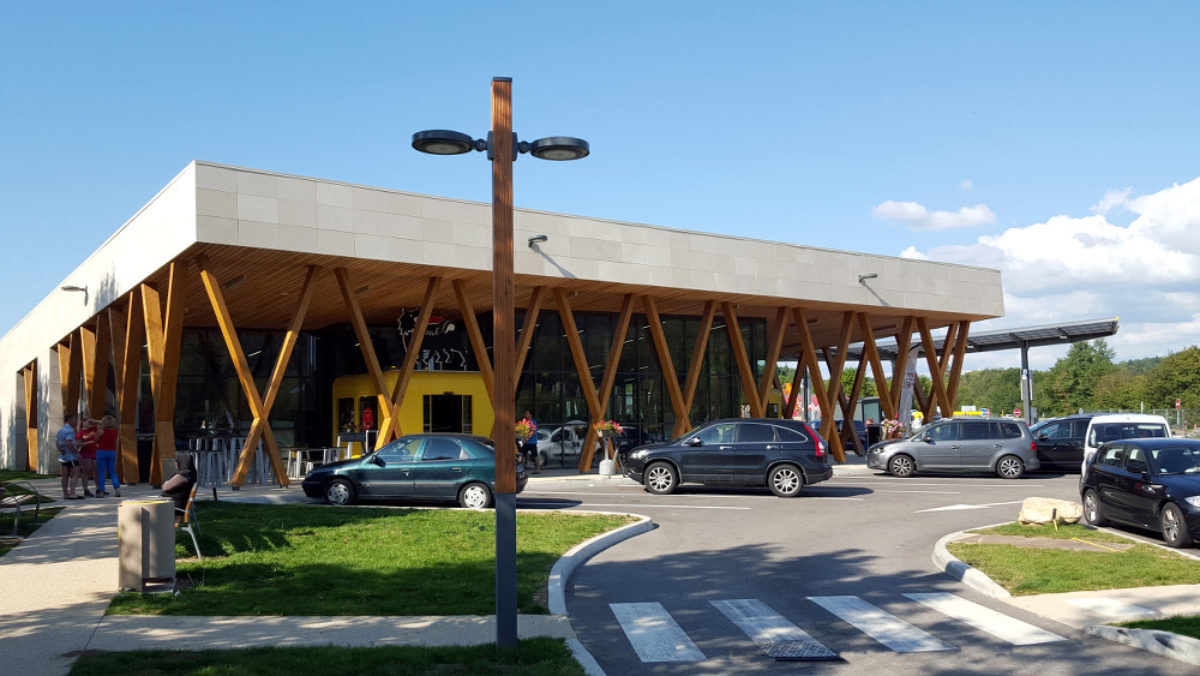

Parking lots

APPLICATIONS

APPLICATIONS

• Mounting: top, bitop and side entry
• Elipt 45: Pedestrian areas, cycle paths, residential areas, street lighting
• Elipt 55: Roads, secondary urban and inter-urban streets
• Recommended heights:
Elipt 45: 4 to 6 m
Elipt 55: 6 to 10 m

DESCRIPTION

• Luminaire available in 2 sizes: Elipt 45 and Elipt 55
• Body and frame in injected die-cast aluminium
• Spun aluminium dome
• Polyester powder coating, any colour available
• IP 66
• Class I or II
• 2 types of sources:
ORALED 1 and 2 modules :
- equipped with an ORALENS mono lens in PMMA, IK 08, module colour grey 2150 sanded or 2900 sanded
- colour temperature: 3000 K or 4000 K

REOLED 1 and 2 modules:
- equipped with BLS with QUADRALENS lenses and PC bowl, IK 10, module colour grey 2900 sanded
- colour temperature:
2400 K, 2700 K, 3000 K or 4000 K

CITIZEN REFERENCE POINTS

• Materials used:
- Elipt 45: Aluminium 84%, Other 9%, Steel 4%, Plastic 3%
- Elipt 55: Aluminium 86%, Other 7%, Steel 4%, Plastic 3%
• Complies with the RoHS directive
• High recyclability rate

WATERPROOFING

• IP 66 waterproofing in accordance with the standard EN 60 529
• Extruded pneumatic silicone gasket
• Cable gland with anchoring device
• Breathing system with activated carbon filter

MECHANICAL INTERFACES

• LRL: Elipt side entry with plain swivel joint coupled with sleeve for bracket end with external Ø 60 mm.
Tilts from -90° to + 90°
• LRM: Elipt Smooth Lateral Ball with wrapping sleeve for the end of the cross-arm Ø 60 mm and Ø 42 mm outside
• LR: Elipt side entry with swivel joint and Ø 3⁄4” thread for female boss welded onto pole or bracket.
Tilts from -90° to + 90°
• Top or Bitop fitting for pole Ø 60/62 mm / l=100 mm
For pole Ø 76 mm top, optional spigot A
Luminaire tilted at 0° and 10°
• LL: Elipt side entry coupled with sleeve for bracket end with external Ø 60 mm
• Elipt on cast aluminium plate
• Elipt on cast aluminium wall bracket
• SR: Elipt suspended with swivel joint
• CATELUX: Elipt with SM Ø 27 pdg (G3/4”) fixation. Fixation on 5 to 14 mm diameter mechanical cable
• SCO: Elipt on catenary mounting. Attachment on 5 to 14 mm diameter mechanical cable

DIMENSIONS

ELIPT 45:
Ø: 455mm Height: 175/158mm
Weight: 9,9kg
Scx: 0,07m2

ELIPT 55:
Ø: 555mm Height: 215/199mm
Weight: 13,7kg
Scx: 0,09m2

CONNECTIVITY

• 0-10V
• DALI
• SR+Zhaga (D4I)
• Bluetooth
