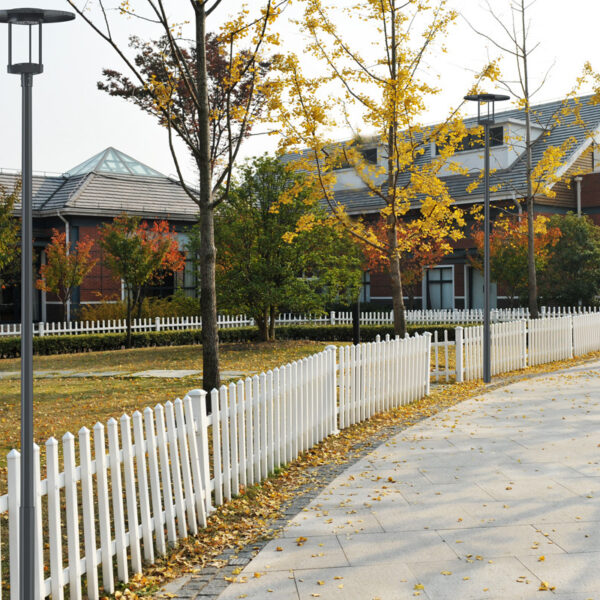

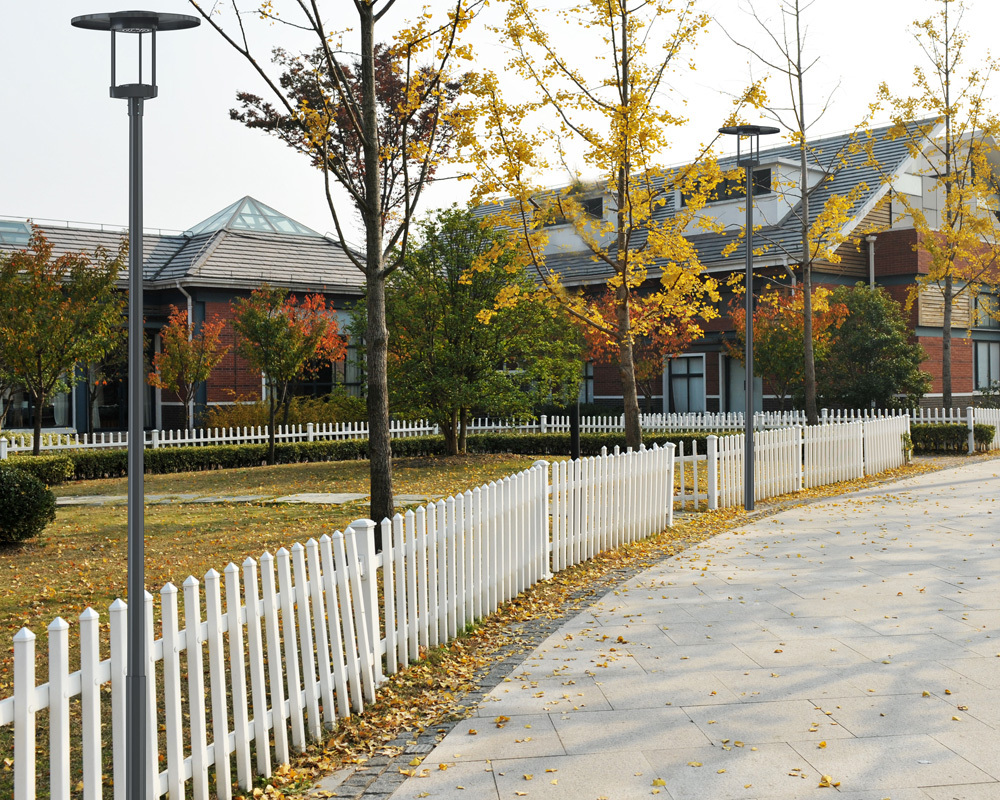

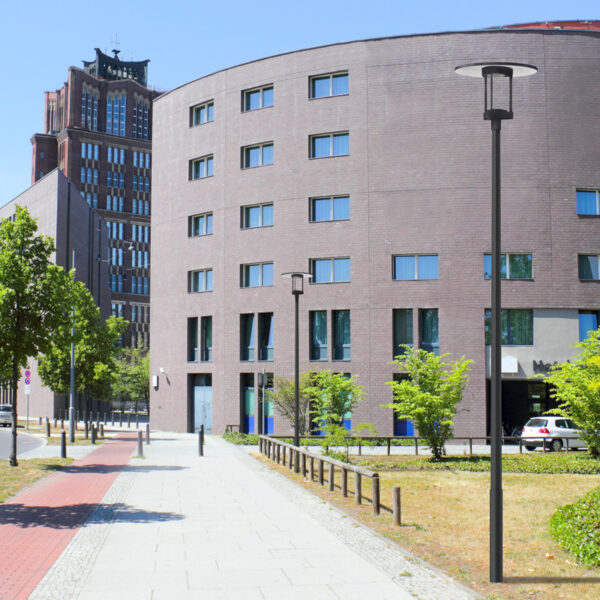

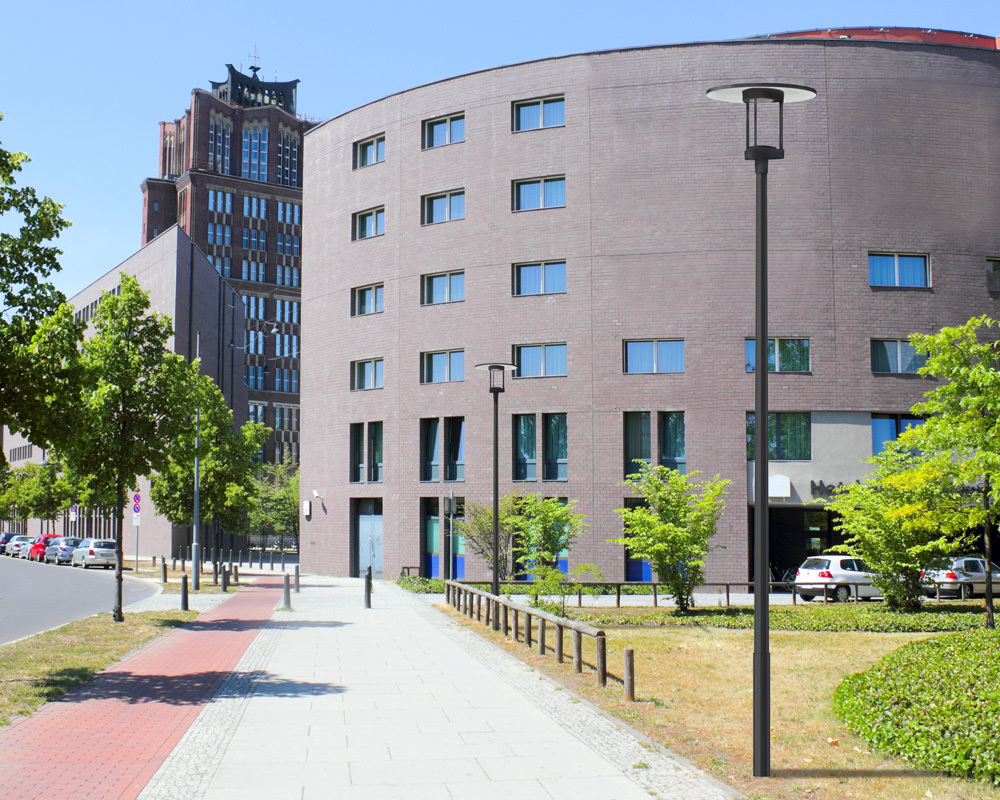

INDEX LED

design by Eclatec

INDEX gives an intelligible know-how to urban projects; its proportions come from the quasi- mathematical result of a rule of three:

- it fits into a contemporary equation with determination.
- resolve the triple proportions of a volume, with a scale and lightness targeting harmony
- offer a fundamental tool for the town, combining its outline with urban lines by day and dispensing a methodically dosed light by night

APPLICATIONS

Icon cycle-paths

Cycle paths

Icon Footpaths

Footpaths

Icon Residential streets

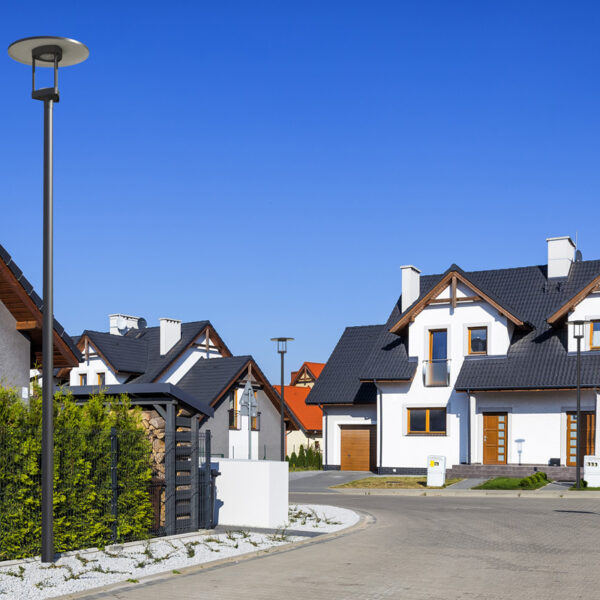

Residential streets

Icon Residence areas

Residence areas

APPLICATIONS

APPLICATIONS

• Mounting: top
• Car parks, parks and gardens, residential lighting
• Recommended heights: 3 to 6 m

DESCRIPTION

  • Injection die-cast aluminium body
  • Aluminium cap underside painted in white color, Ø 800mm
  • 3 extruded aluminium arms
  • base in injected aluminium
  • Domed base cover in injected aluminium, underside painted in white color to mirror the light
  • Polyester powder coating, any colour available
  • IP 66
  • IK 08
  • Class I or II
  • INDEX module with ORALENS PMMA lenses
  • Colour temperature: 4000 K and 3000 K

CITIZEN REFERENCE POINTS

• Materials used:
- Aluminium 93%, Other 4%, Inox 2%, Plastic 1%
• Complies with the RoHS directive
• High recyclability rate

WATERPROOFING

• IP 66 waterproofing in accordance with the standard EN 60 529
• Silicone gasket on the canopy and base
• Power cable secured by cable-gland

MECHANICAL INTERFACES

• Post-top fastening on pole Ø 76 mm, fastened with 6 STHC screws

DIMENSIONS

Ø: 800mm Height: 730mm
Weight: 11kg
Scx: 0,10m2

CONNECTIVITY

• 0-10V
• DALI
• SR+Zhaga (D4I)
• Bluetooth
