INDICE CONIC

Lighting
← →

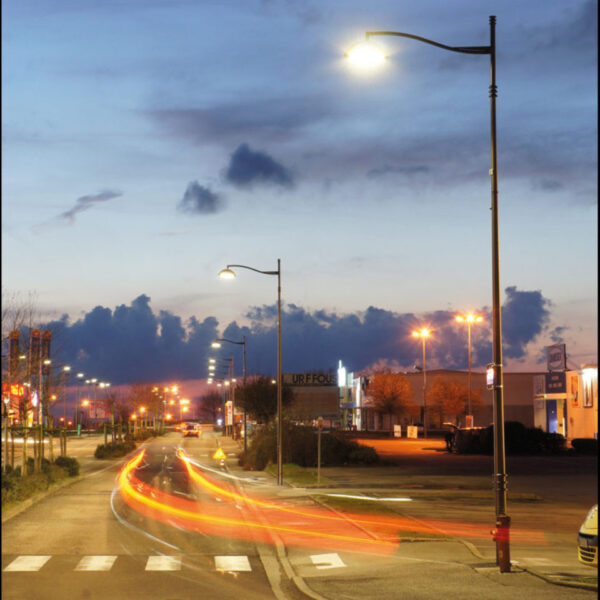

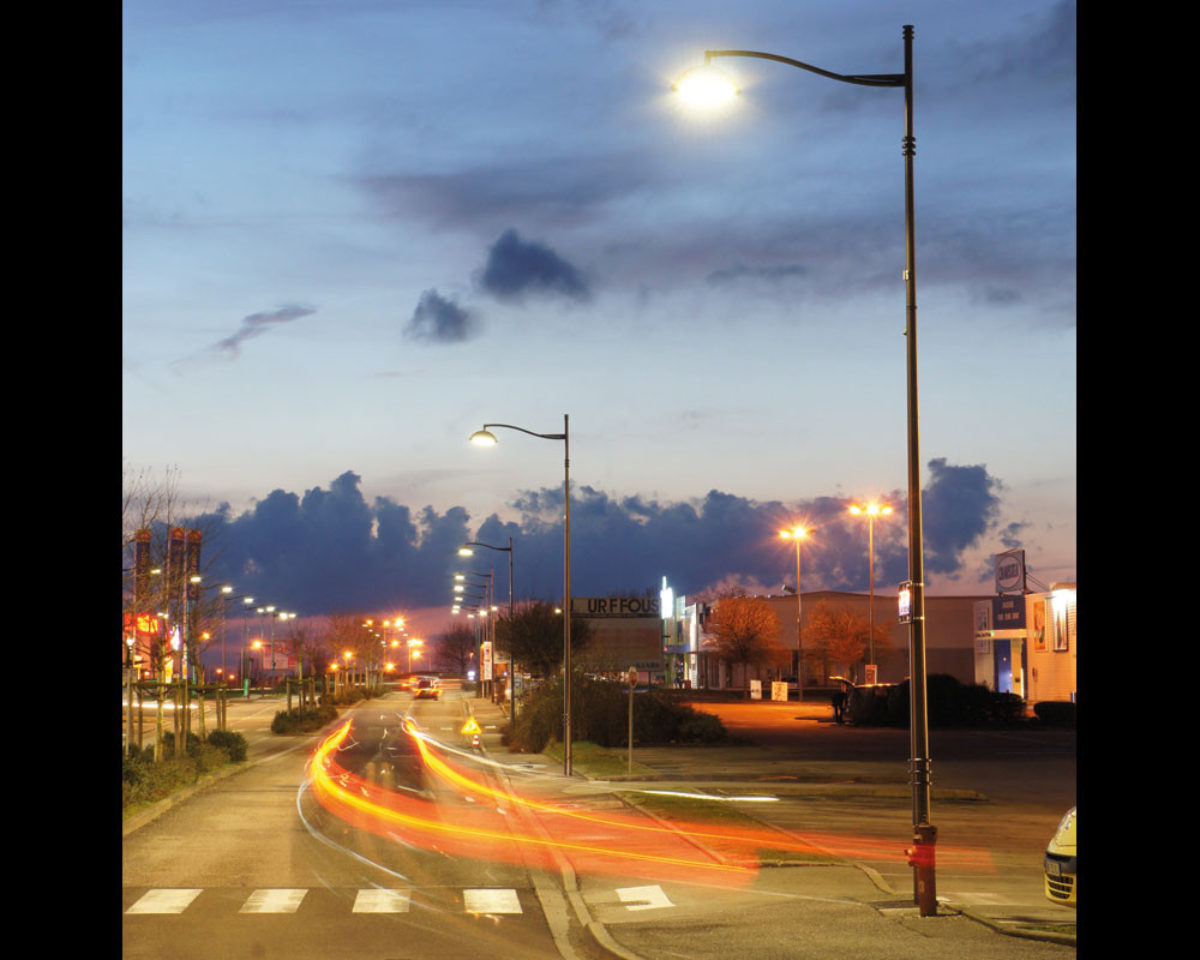

The shape and volume of INDICE CONIC make it one of the most popular luminaires for road and urban lighting, in a semi-decorative interpretation.

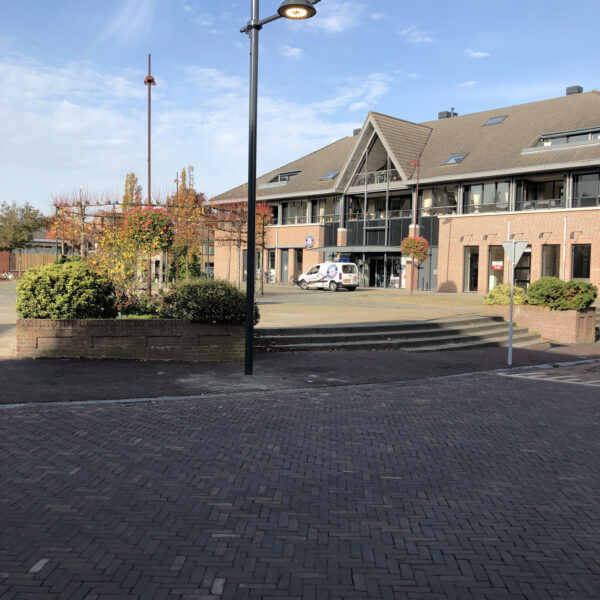

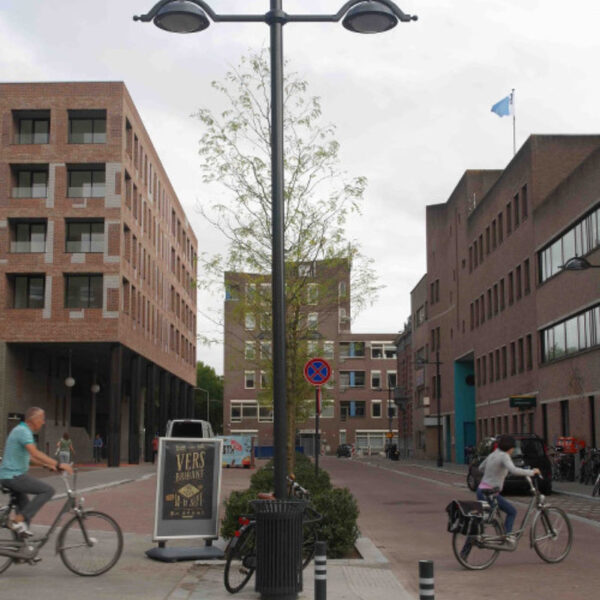

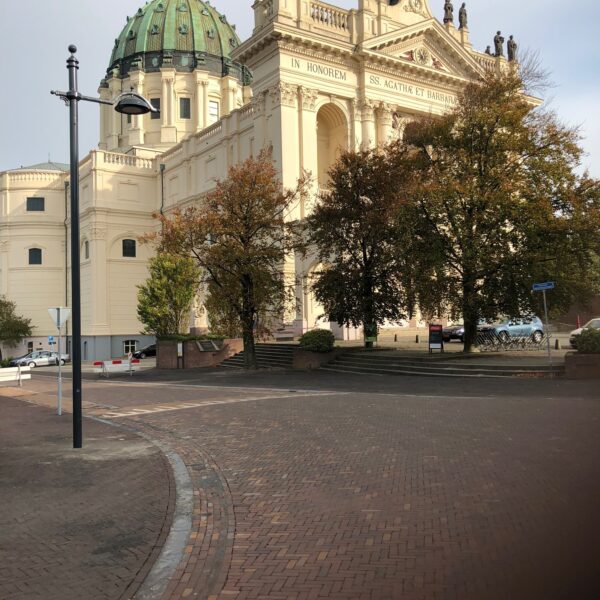

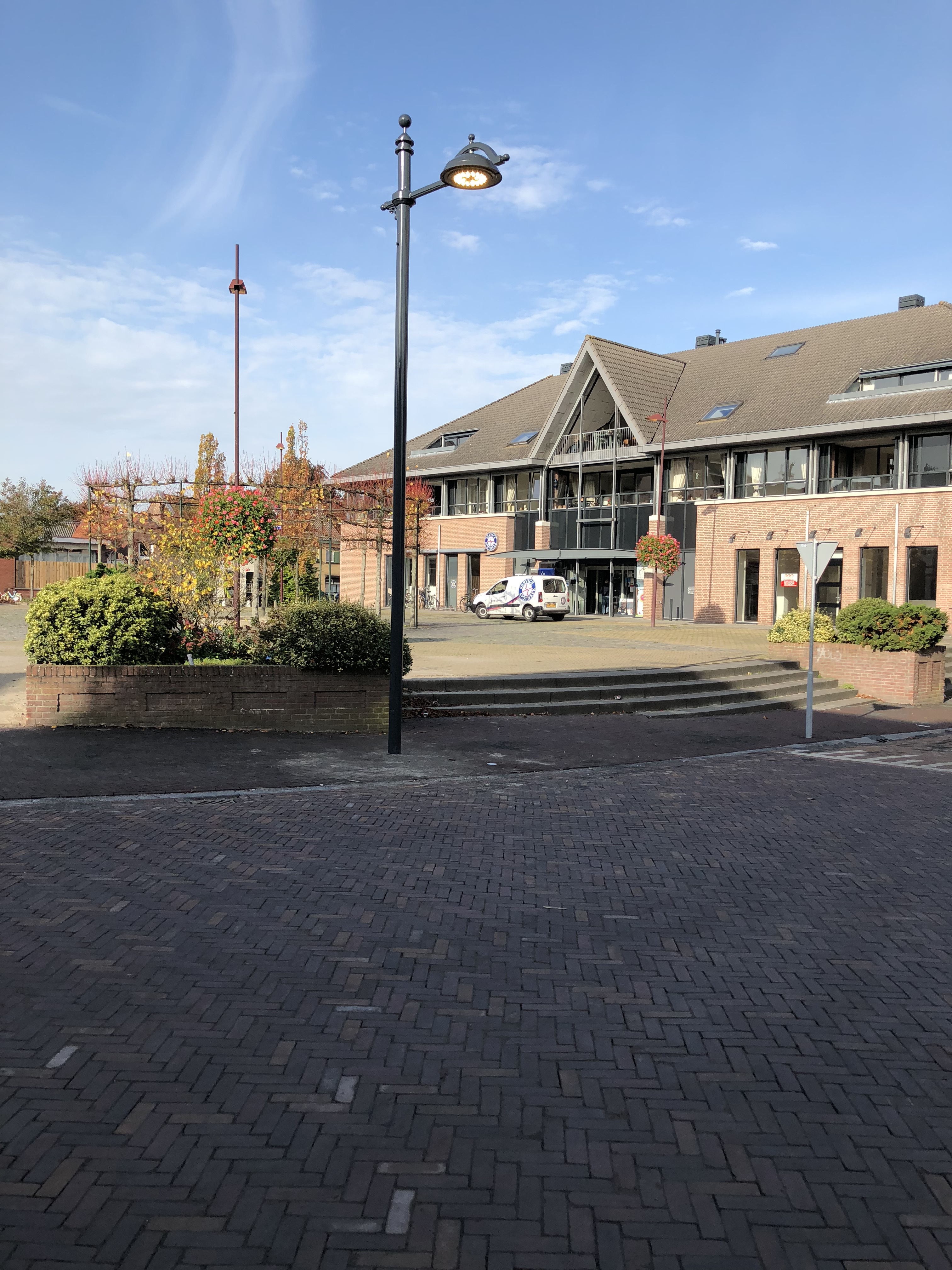

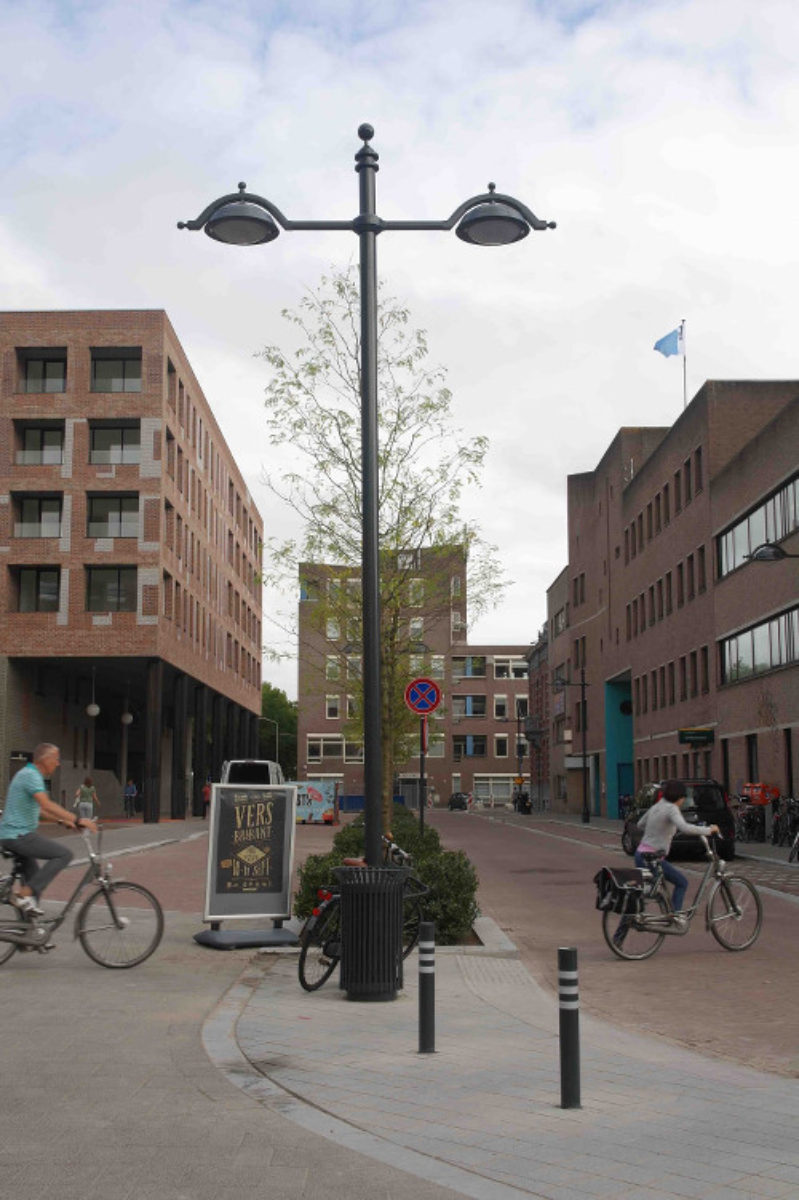

This luminaire fits naturally into the outskirts of towns and villages as well as in city centres. The luminaire is suitable for suspended or lateral mounting, and there is also a STIRRUP (U-bracket) for stylish adaptation to pole-top mounting.

In its LED version, INDICE CONIC takes the ORALED 2 or SEOLED 2 LED modules.

APPLICATIONS

Cycle paths

Footpaths

Residential streets

Residence areas

APPLICATIONS

• Mounting: suspended, lateral, U-bracket
• Urban streets, pedestrian walkways, cycle paths and squares
• Recommended heights: 6 to 8 m

DESCRIPTION

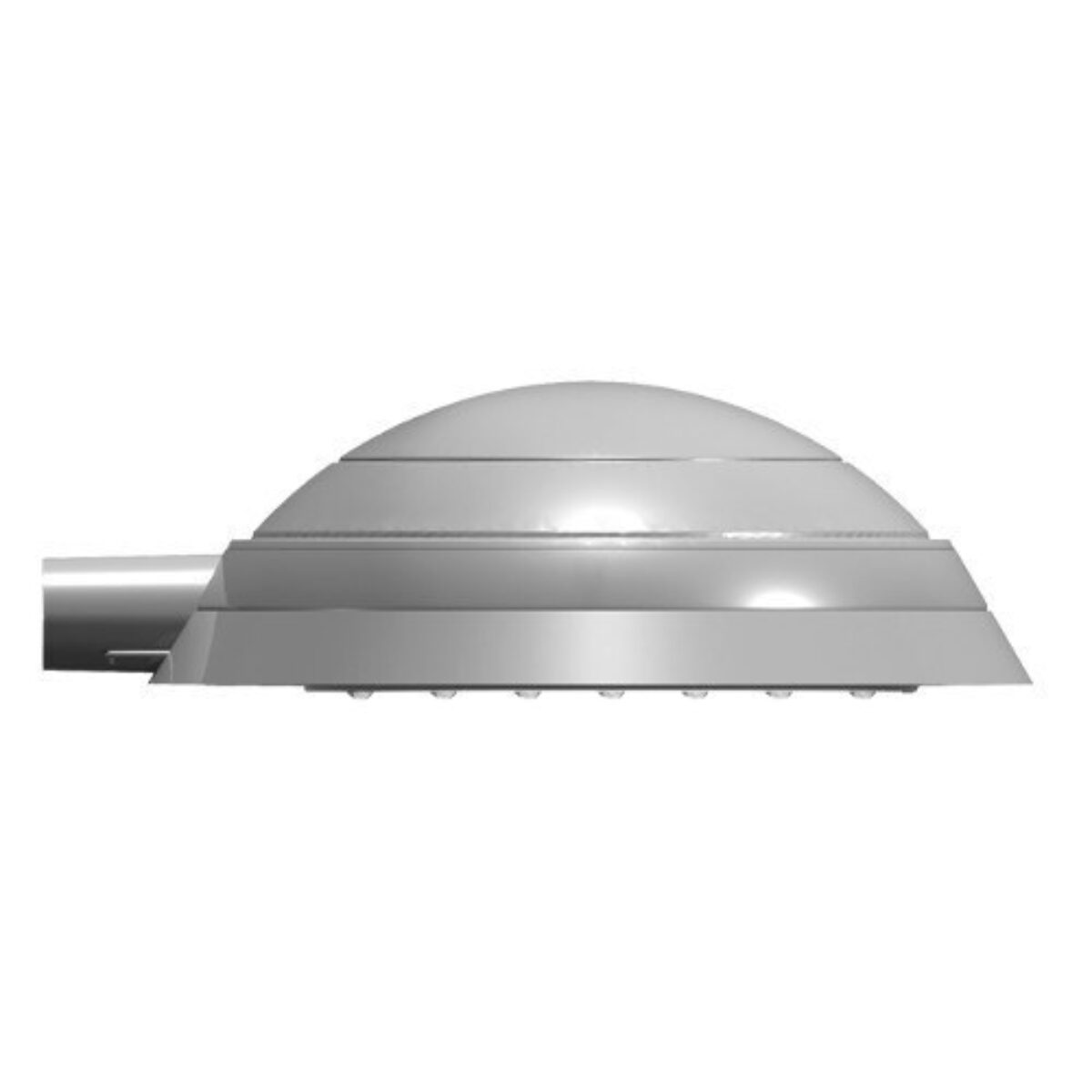

• Injection die-cast aluminium body
• Spun aluminium dome
• Polyester powder coating, any colour available
• IP 66
• IK 08
• Class I or II
• Integrated control gear
• 2 types of sources:

ORALED 2 module :
- equipped with an ORALENS mono lens in PMMA/IK 08, module colour grey 2150 sanded or 2900 sanded
- colour temperature: 4000 K and 3000 K

SEOLED 2 module:
- equipped with BLS with QUADRALENS lenses and glass bowl/IK 08, module colour grey 2150 sanded or 2900 sanded
- colour temperature: 2400 K, 2700 K, 3000 K or 4000 K

CITIZEN REFERENCE POINTS

• Materials used:
- Indice Conic Led: Aluminium 88%, Other 5%, Steel 4%, Plastiques 3%.
- Indice Conic Led Lyre: Aluminium 91%, Other 4 %, Steel 3%, Plastiques 2%
• Complies with the RoHS directive.
• High recyclability rate

WATERPROOFING

• IP 66 waterproofing in accordance with the standard EN 60 529
• Pneumatic silicone gasket
• Cable gland with anchoring device
• Breathing system with activated carbon filter

MECHANICAL INTERFACES

• Indice Conic suspended version: with swivel joint and Ø 3⁄4” thread for female boss
• Indice Conic lateral version: for Ø 60 mm bracket
• Indice Conic U-bracket: for spigot Ø 49 mm, L 70 mm
• U-bracket trim for Ø 76 mm
• U-bracket trim for Ø 90 mm
