LIKE

design by Eclatec

LIKE is a welcome guest.

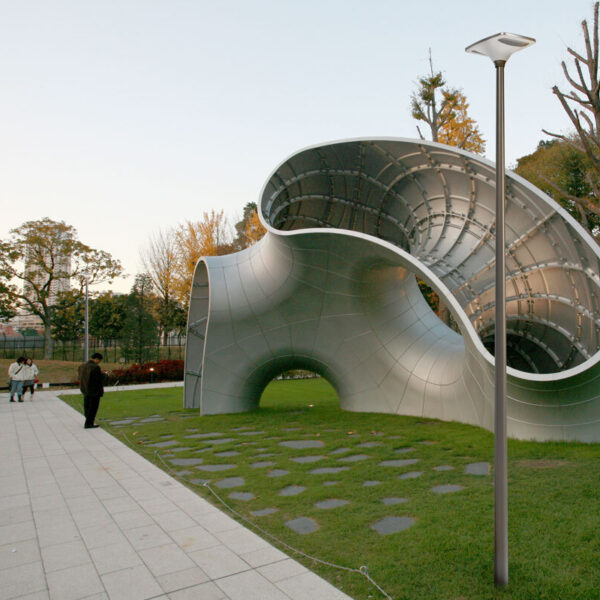

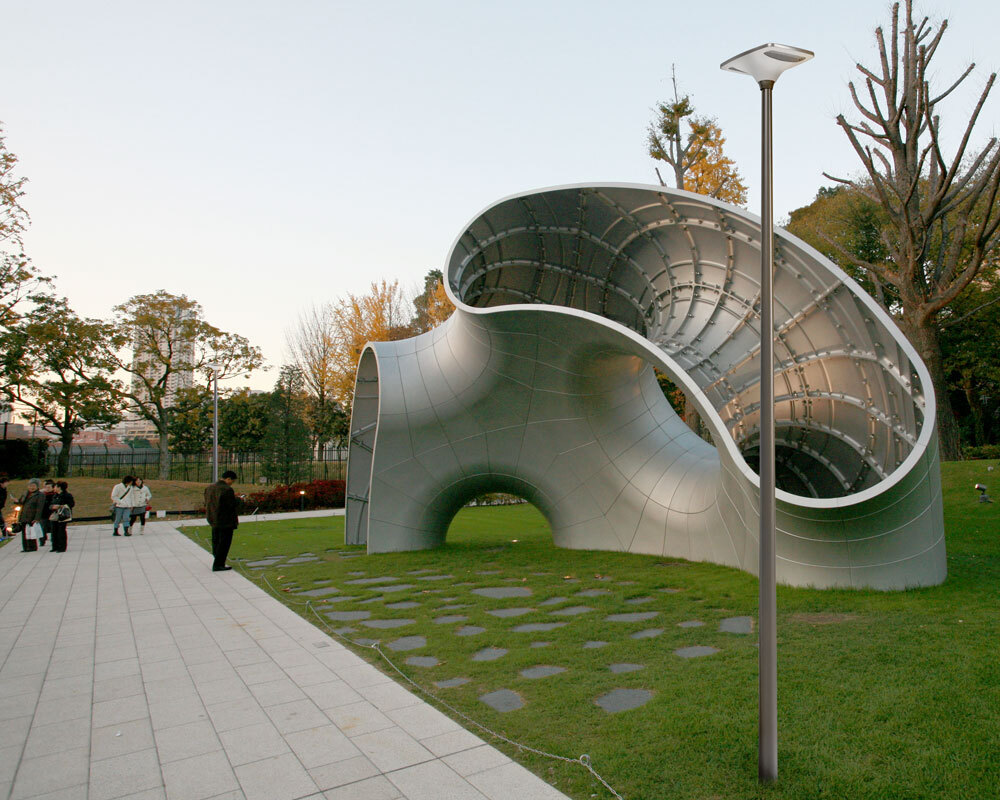

Its silhouette fits spontaneously in pedestrian lighting applications, parks, in housing developments or on cycle paths.

The inhabitants will recognise, at first sight, its simplicity and, during the day or night, approve its efficiency; the eye accepts its presence in an instant.

LIKE, you love it instantly, immediately, at the speed of a click, like a LIKE

APPLICATIONS

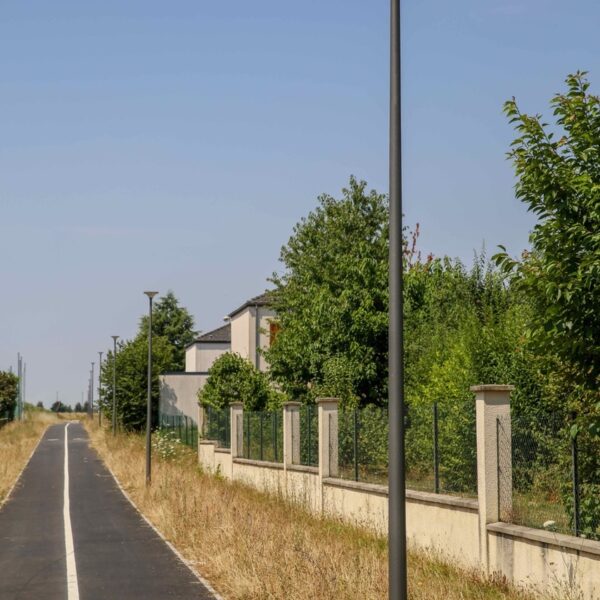

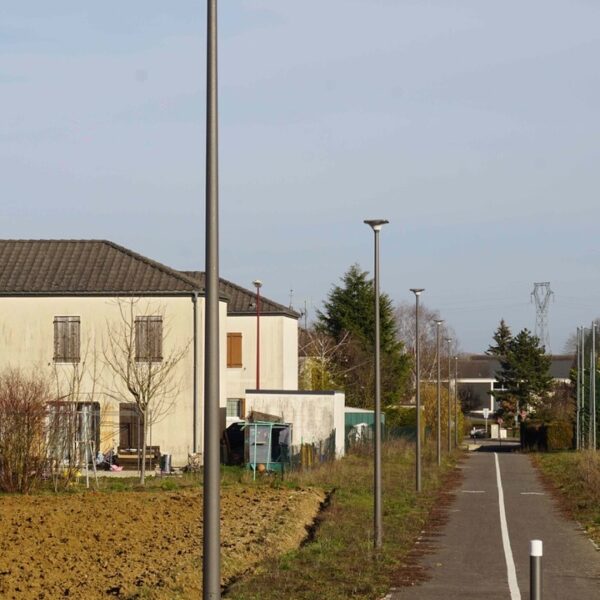

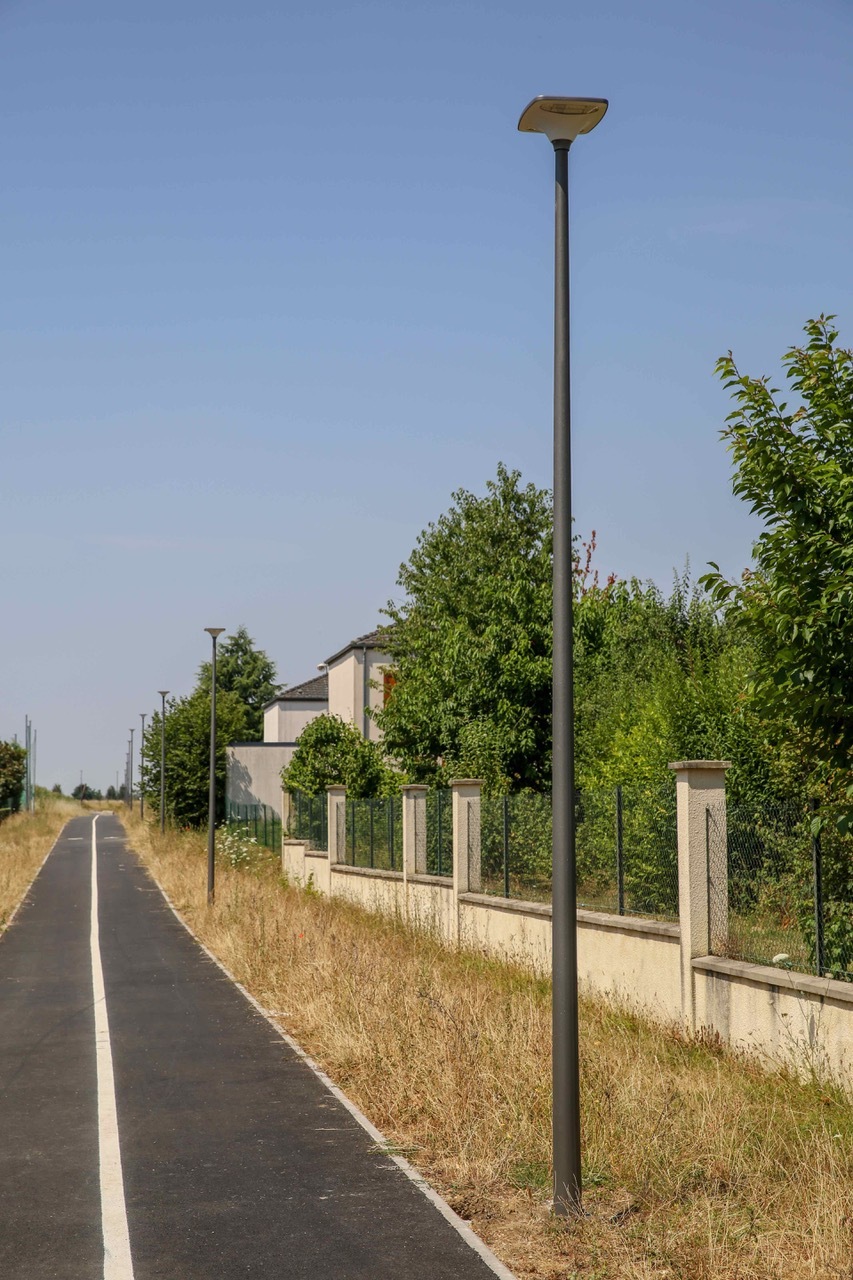

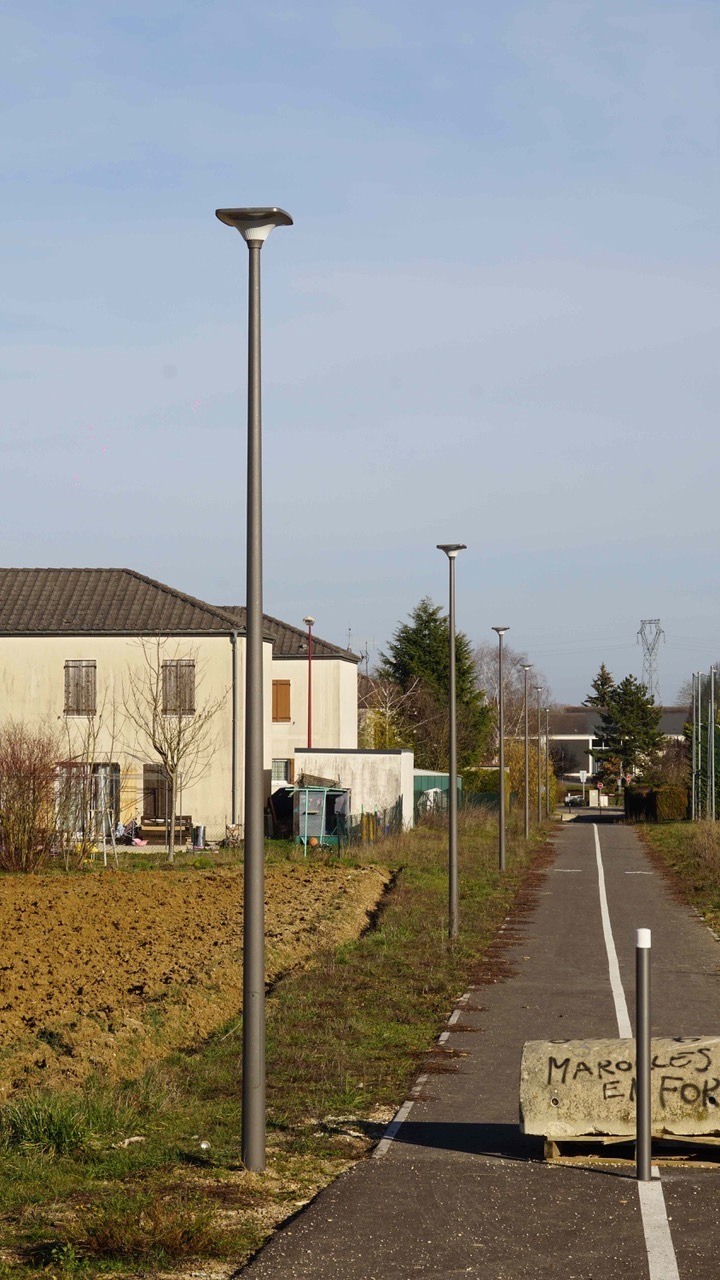

Icon cycle-paths

Cycle paths

Icon Footpaths

Footpaths

Icon Residential streets

Residential streets

Icon Residence areas

Residence areas

Icon Parking lots

Parking lots

APPLICATIONS

APPLICATIONS

• Mounting: top
• Carparks, parks and gardens, pedestrian paths, cycle paths. • Recommended heights: 3,5 to 6 m

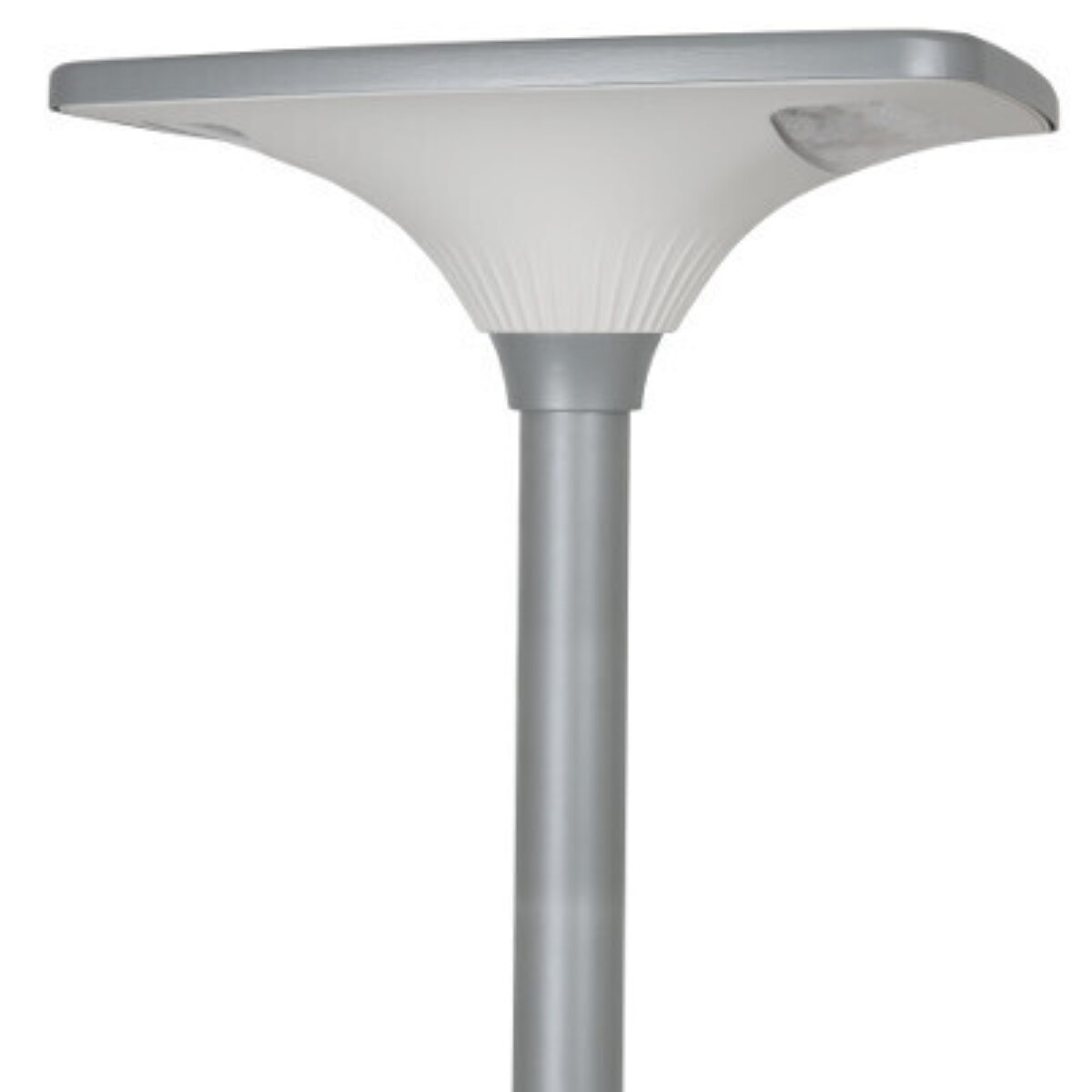

DESCRIPTION

  • Injected die cast aluminium bottom and canopy
  • Two-material polycarbonate white and clear bowl
  • Polyester powder coating, any colour available (depending on level)
  • IP 66
  • IK 10
  • Class I or II
  • LIKE source with specific lenses
  • Colour temperature: 4000 K and 3000 K

CITIZEN REFERENCE POINTS

• Materials used:
- Aluminium 66%, Other 3%, Steel 7%, Plastic 24%
• Complies with the RoHS directive
• High recyclability rate

WATERPROOFING

• IP 66 waterproofing in accordance with the standard EN 60 529
• Extruded pneumatic silicone gasket
• Cable gland with anchoring device
• Breathing system with activated carbon filter

MECHANICAL INTERFACES

• Post-top fixation for pole Ø 60/62 mm, fastened by 3 screws
• For standard Ø 76 mm pole, C tip available as an option

DIMENSIONS

Length: 500mm Width: 380mm Height:185mm​
Weight: 4,3kg​
Scx: 0,04m2

CONNECTIVITY

• 0-10V
• DALI
• SR+Zhaga (D4I)
• Bluetooth
