MURENA

• Mounting: top and side entry
• Recommended heights: 4 to 10 m
• Urban routes, pedestrian walkways, cycle paths, squares, parks and pedestrian areas

• Injection die-cast aluminium body
• Luminaire opens without tools
• Polyester powder coating, any colour available • IP 66
• Class I or II
• 2 types of sources:
TABLED 2 module:
- with a TABLENS mono lens in PMMA, IK 07 - colour temperature: 4000 K and 3000 K

BLS strips:
- equipped with QUADRALENS lenses and bowl in thermally toughened and printed glass, IK 10
- colour temperature: 2400K, 2700K, 4000 K and 3000 K

• The TABLED 2 module can be used to equip Murena luminaires that were initially equipped with discharge lamps

• Materials used:
- TABLED 2: Aluminium 85%, Plastic 5%, Other 7%, Steel 3%
- BLS: Aluminium 73%, Glass 10%, Steel 12%, Plastic 4%, Other 1%

• Complies with the RoHS directive
• High recyclability rate

• IP 66 waterproofing in accordance with the standard EN 60 529
• Extruded pneumatic silicone gasket
• Cable gland with anchoring device
• Breathing system with activated carbon filter

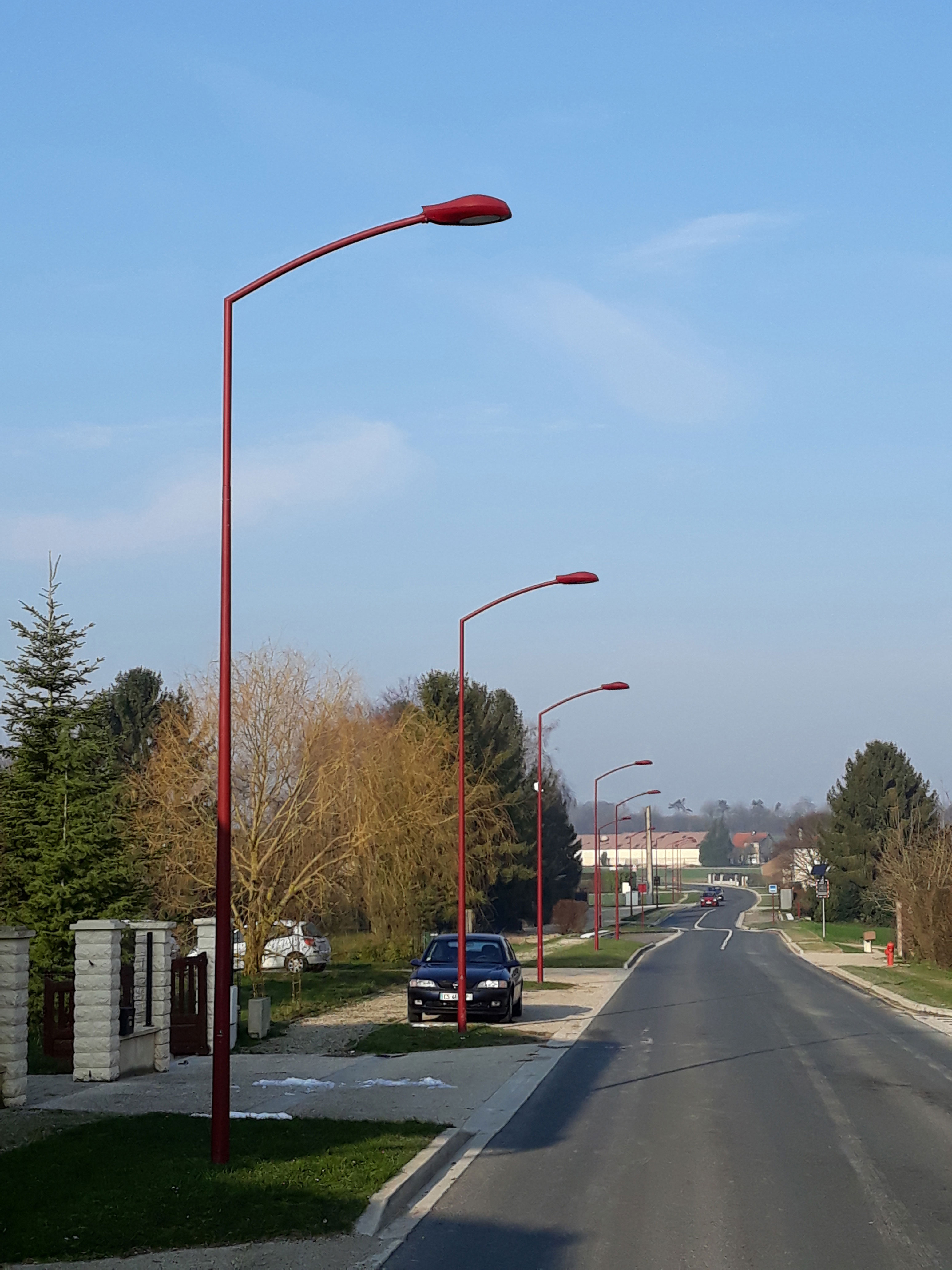

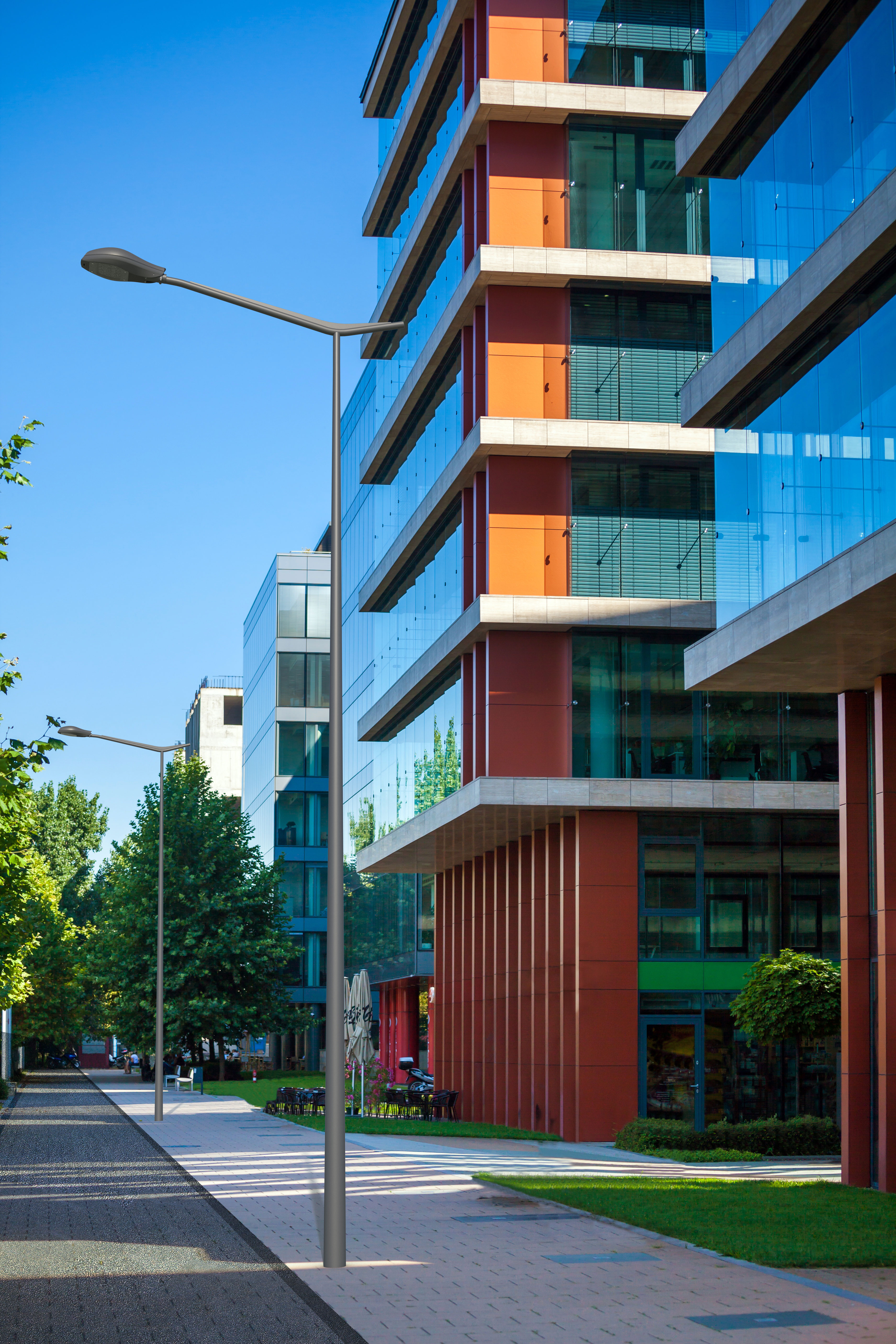

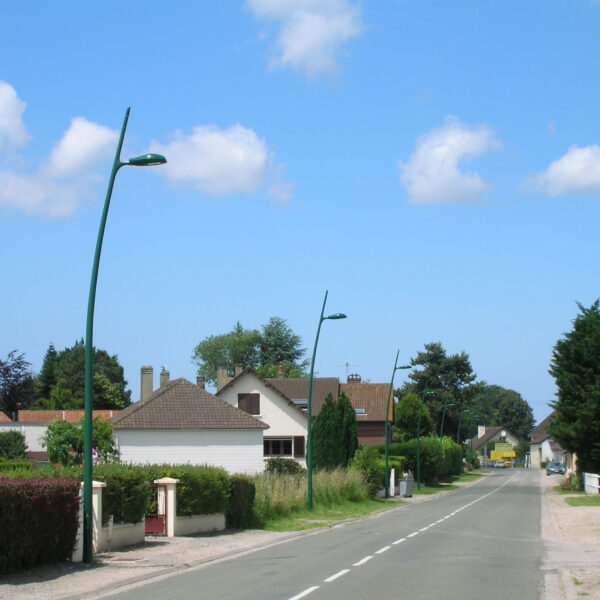

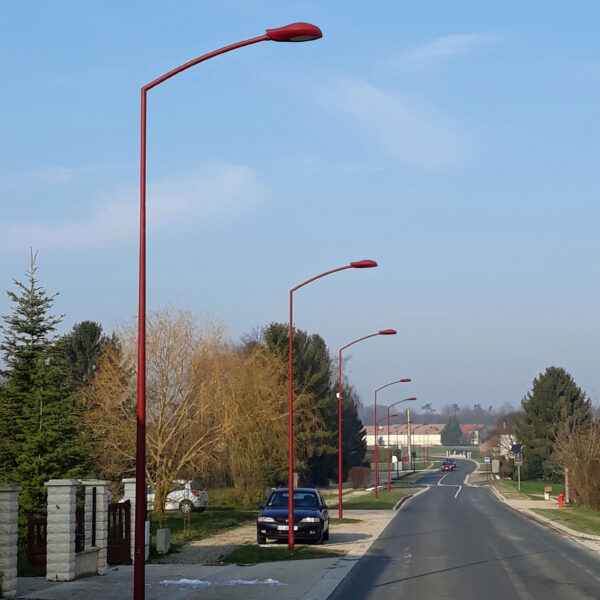

• Luminaire post top mounted on pole Ø 60/62 mm
For pole Ø 76 mm top, optional spigot A (see page 278) Tilts 0° and 10°
• Luminaire lateral mounted on bracket Ø 60 mm Tilts 0°, -5° and -15°
Moving from the side entry to the post top version by a convertible sleeve (2 screws fixation)
• Decorative trim for Murena

Length: 681mm Width: 351mm Height: 183mm
Weight: 11,5kg
Scx: 0,075m2

• 0-10V
• DALI
• SR+Zhaga (D4I)
• Bluetooth
