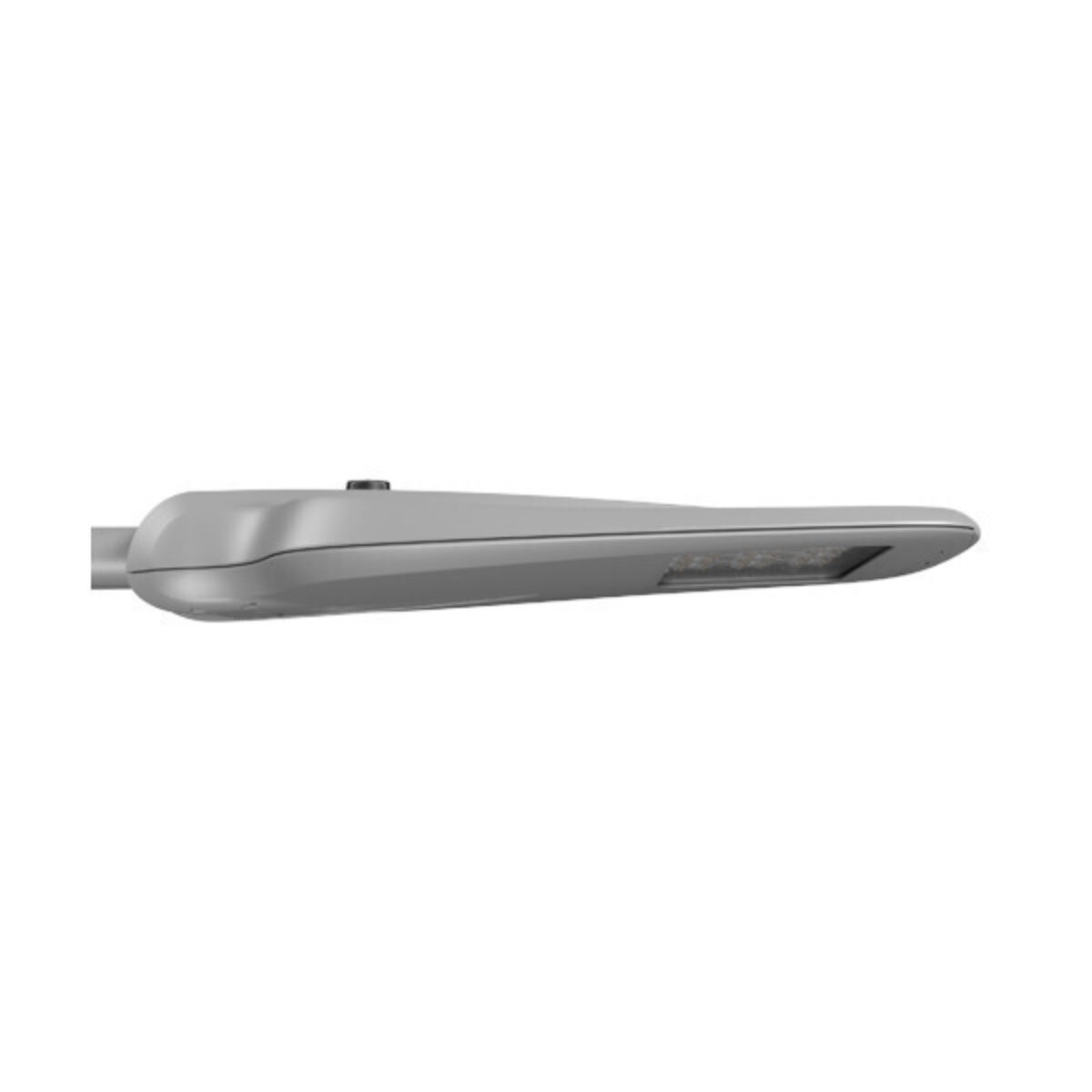

NOA combines all the expected qualities of a modern streetlight.

Its mechanical designs simplifies its assembly (Easylink® directional pivot) and makes maintenance easier: no tools are needed to open the street lamp and it is easy to separate the upper plate that contains the source and the equipment; if necessary, a light limiter can be fitted on site without needing tools.In its Smart-ready® version, NOA is predesigned to offer specific standard remote management features. NOA is available in two sizes

APPLICATIONS

Cycle paths

Footpaths

Residential streets

Main roads

Terrain lighting

Residence areas

Highways

Parking lots

APPLICATIONS

Mounting: top and side entry

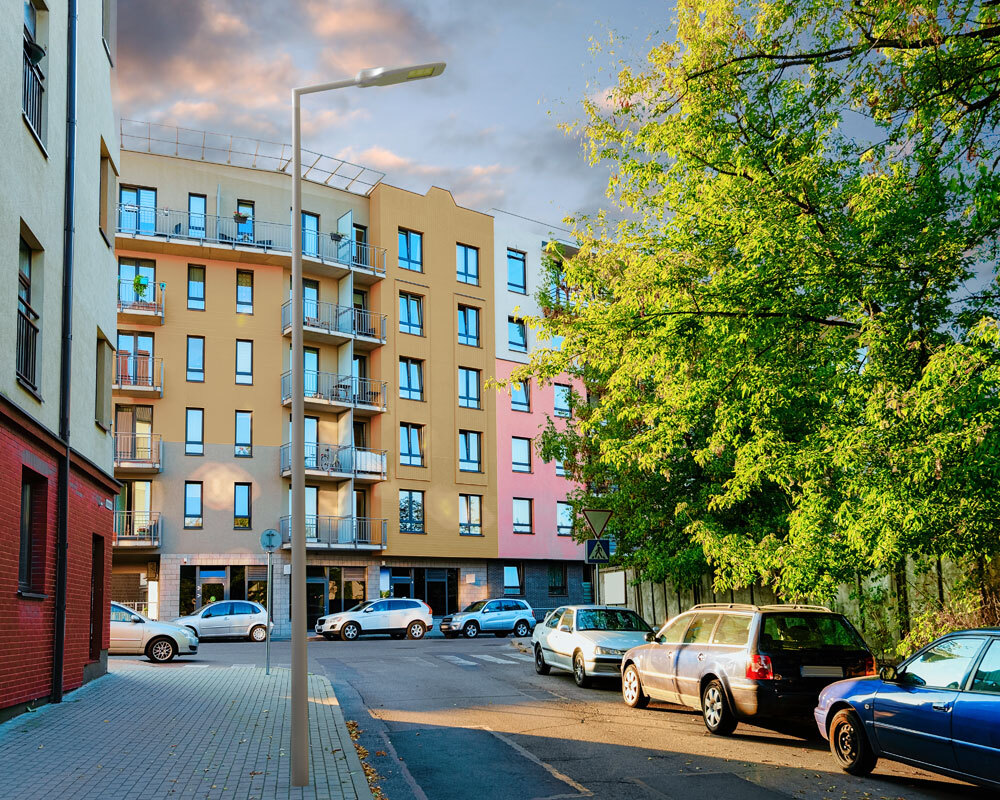

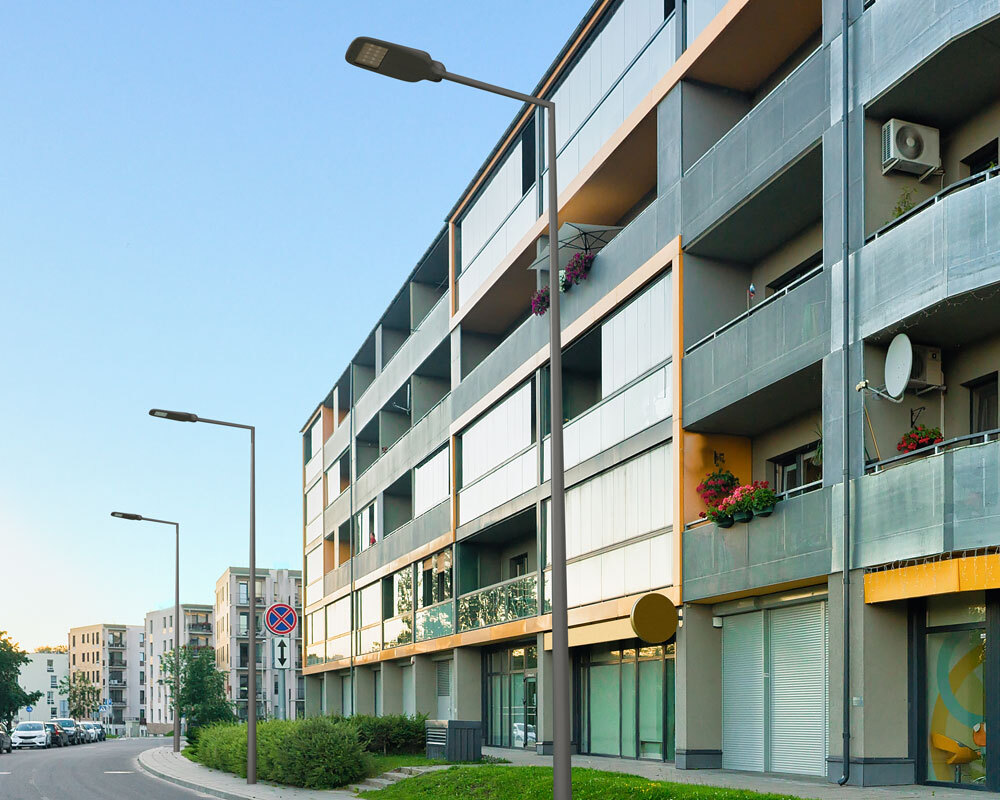

Noa 1: Pedestrian areas, cycle paths, residential areas, street lighting

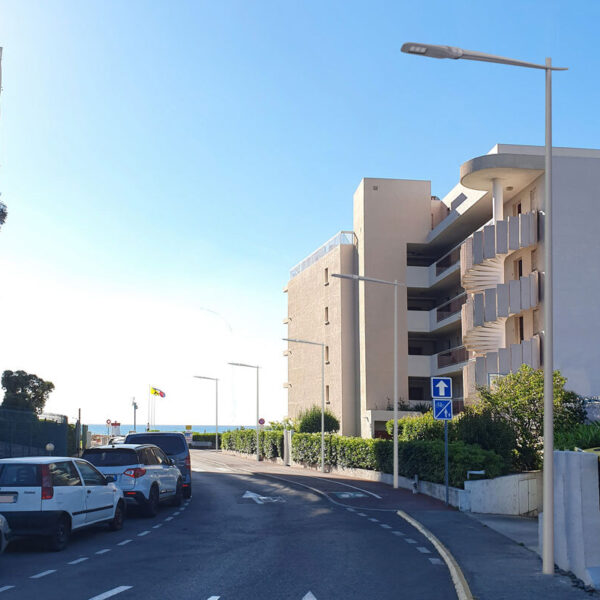

Noa 2: Roads, secondary urban and inter-urban streets
Recommended heights:
Noa 1: 4 to 6 m
Noa 2: 7 to 12 m

DESCRIPTION

2 sizes available: NOA 1 and NOA 2
X Version: with opening paddle; S version: screw closure
Body, cover and sleeve in die-cast aluminium
Bowl in thermally tempered and screen printed glass
Polyester powder coating, any colour available
IP 66
IK 09
Class I or II
Standard BLS LED strips equipped with QUADRALENS lenses
Colour temperatures:
- 2400 K, 2700 K, 3000 K or 4000 K

CITIZEN REFERENCE POINTS

• Materials used:
- Noa 1: Aluminium 72%, Glass 8%, Steel 6%, Plastic 1%, Other 13%
- Noa 2: Aluminium 72%, Glass 8%, Steel 6%, Plastic 1%, Other 13%
• Complies with the RoHS directive • High recyclability rate

WATERPROOFING

• IP 66 waterproofing in accordance with the standard EN 60 529
• Extruded silicone gasket
• Cable gland
• Breathing system with activated carbon filter

MECHANICAL INTERFACES

Top rotating arm built into the luminaire
- Top or Side Ø 60 mm, Ø 49 mm
- Top Ø 76 mm
Tilts:
- TOP: 0°; +5°; +10°;+15°; +20°
- SIDE 0°; -5°; -10°;-15°; -20°
Locking using 2 pressure screws

DIMENSIONS

• NOA 1: Lenght 679 mm, Width 375 mm, Height 115 mm
• NOA 2: Lenght 779 mm, Width 457 mm, Height 115 mm
• Weight NOA 1: 8,1 kg
• Weight NOA 2: 10,2 kg
• Scx NOA 1: 0,12m2
• Scx NOA 2: 0,16m2
