Lighting

SAGA

design by Cecile Planchais

SAGA writes a new page in the story of urban lighting.

Its arch, subtly contemporary, carries the history of a luminaire born of the happy combination of form and technology.

By day, the silhouette of SAGA discretely recounts the story of a gentle compromise combining modernity and timelessness. By night, SAGA accompanies the inhabitants with its presence, both protective and benevolent.

APPLICATIONS

Icon cycle-paths

Cycle paths

Icon Footpaths

Footpaths

Icon Residential streets

Residential streets

Icon Residence areas

Residence areas

APPLICATIONS

APPLICATIONS

  • Mounting: top

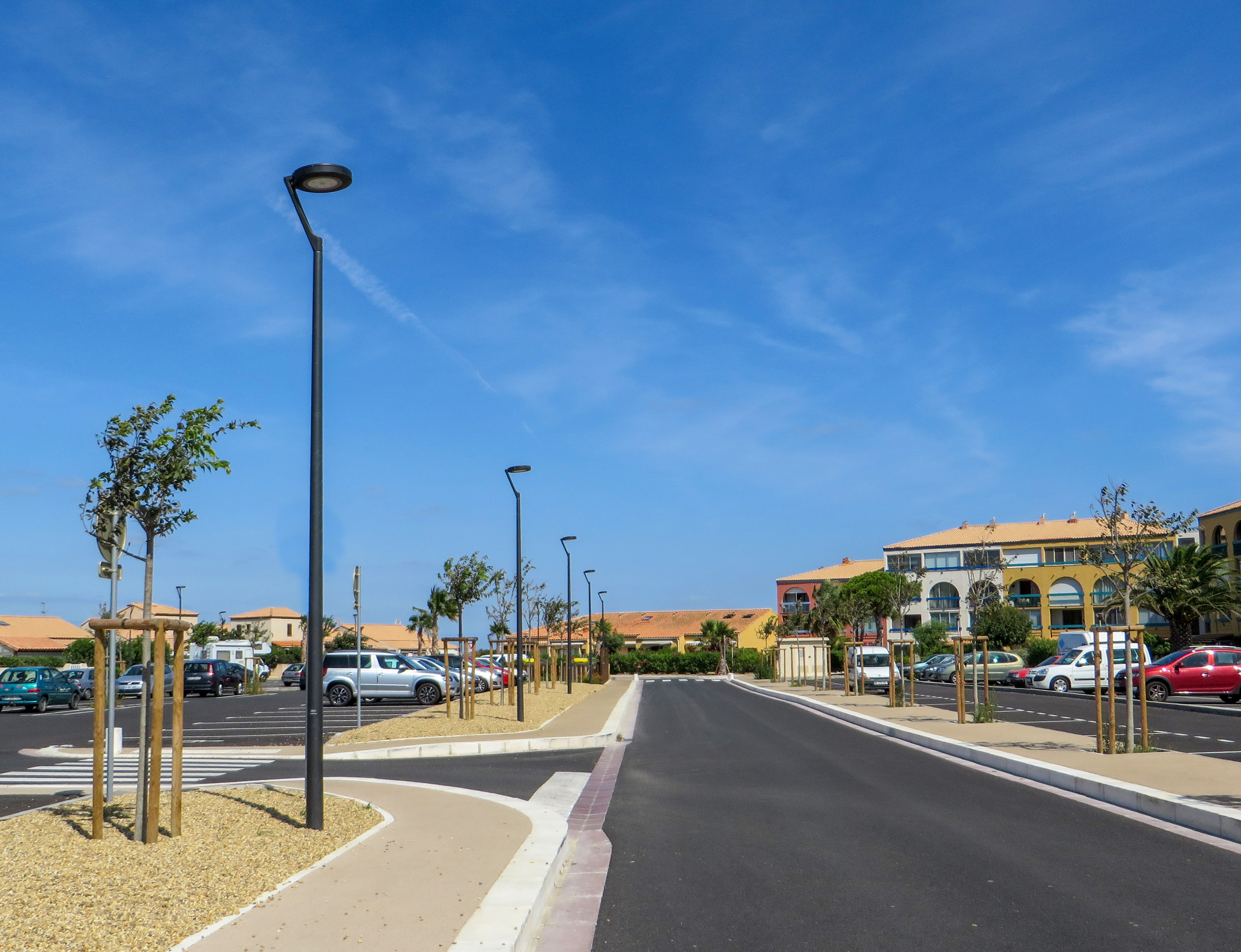

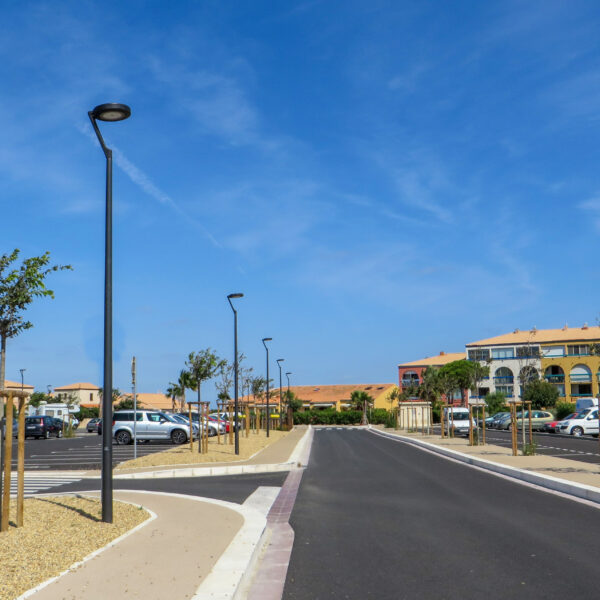

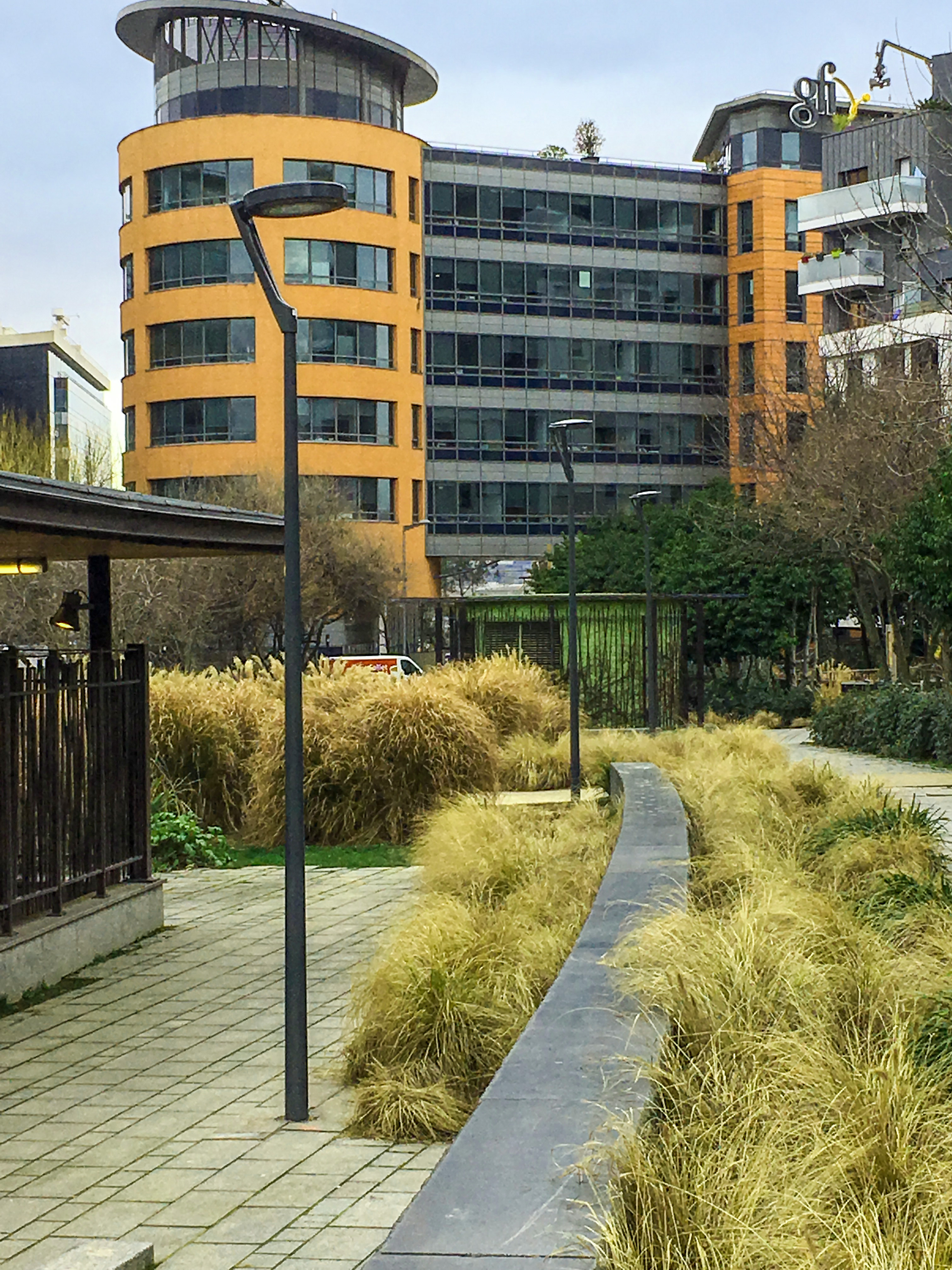

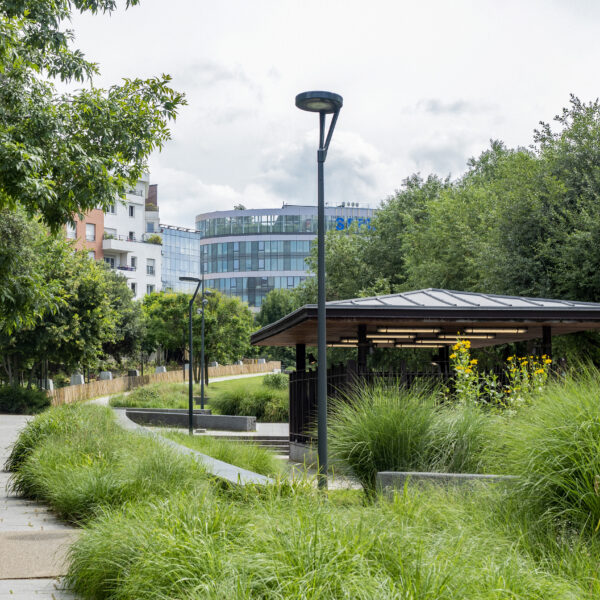

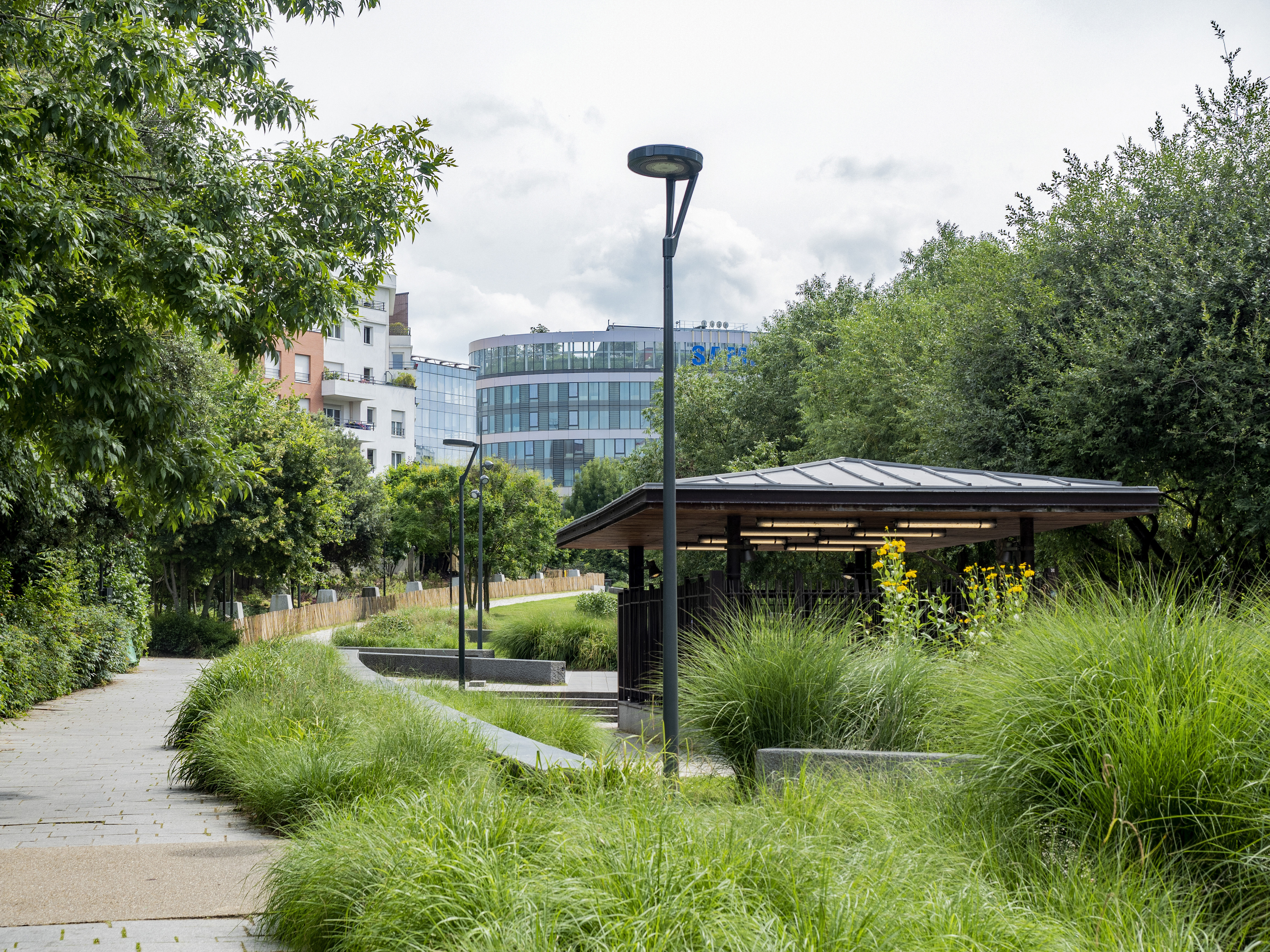

  • Urban routes, pedestrian walkways, cycle paths, squares, parks and pedestrian areas.
  • Recommended heights: 4 to 6 m

DESCRIPTION

  • Injected die-cast aluminium body, canopy, push-strip and module
  • Polyester powder coating, any colour available
  • IP 66
  • IK 08
  • Class I or II
  • 2 types of sources:

    ORALED 1 Module:
    - equipped with an ORALENS mono lens in PMMA/IK 08, module colour grey 2150 sanded or 2900 sanded
    - colour temperature: 4000 K and 3000 K

    SEOLED 1 Module:
    - equipped with BLS with QUADRALENS lenses and glass bowl/IK 08, module colour grey 2150 sanded or 2900 sanded
    - colour temperature:
    2400 K, 2700 K, 3000 K or 4000 K

CITIZEN REFERENCE POINTS

• Materials used:
- Aluminium 88%, Other 5%, Steel 5%, Plastic 2%
• Complies with the RoHS directive
• High recyclability rate

WATERPROOFING

• IP 66 waterproofing in accordance with the standard EN 60 529
• Extruded pneumatic silicone gasket
• Cable gland with anchoring device
• Breathing system with activated carbon filter

MECHANICAL INTERFACES

• Cover fixation at the top of the Ø 60/62 mm pole
• Cover fixation at the top of the Ø 76 mm specific pole with an adaptor Ø 60 mm/ l=85 mm, spigot C
• Luminaire pre-set at 5°

DIMENSIONS

Ø: 503mm Height: 710mm
Weight: 13kg
Scx: 0,15m2

CONNECTIVITY

• 0-10V
• DALI
• SR+Zhaga (D4I)
• Bluetooth
