SONATA

Lighting
← →

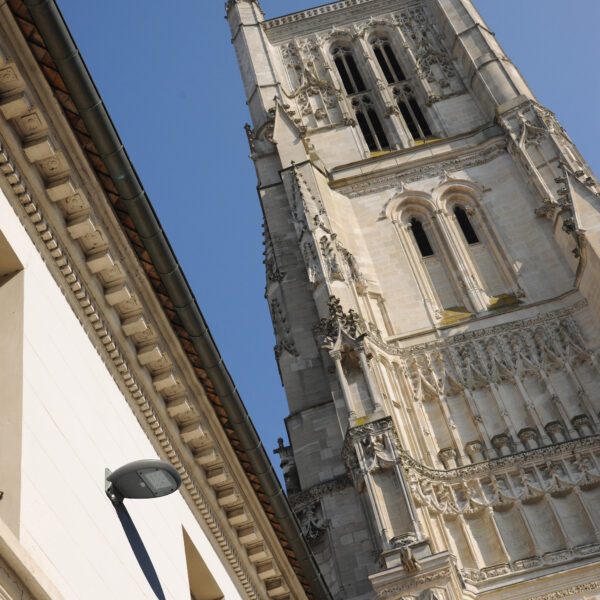

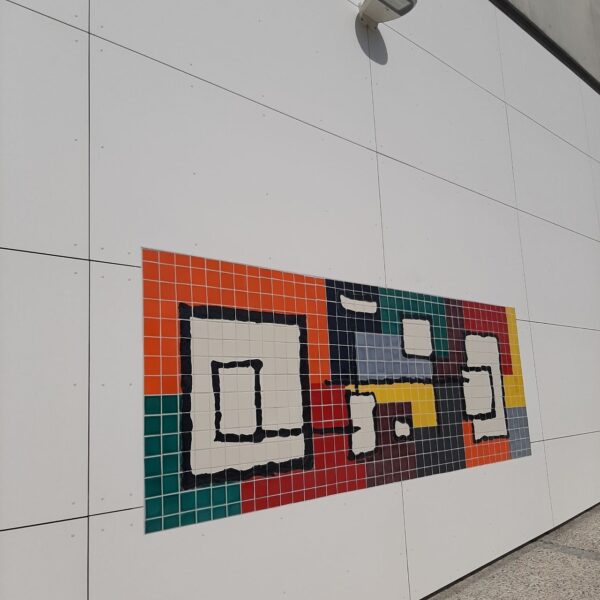

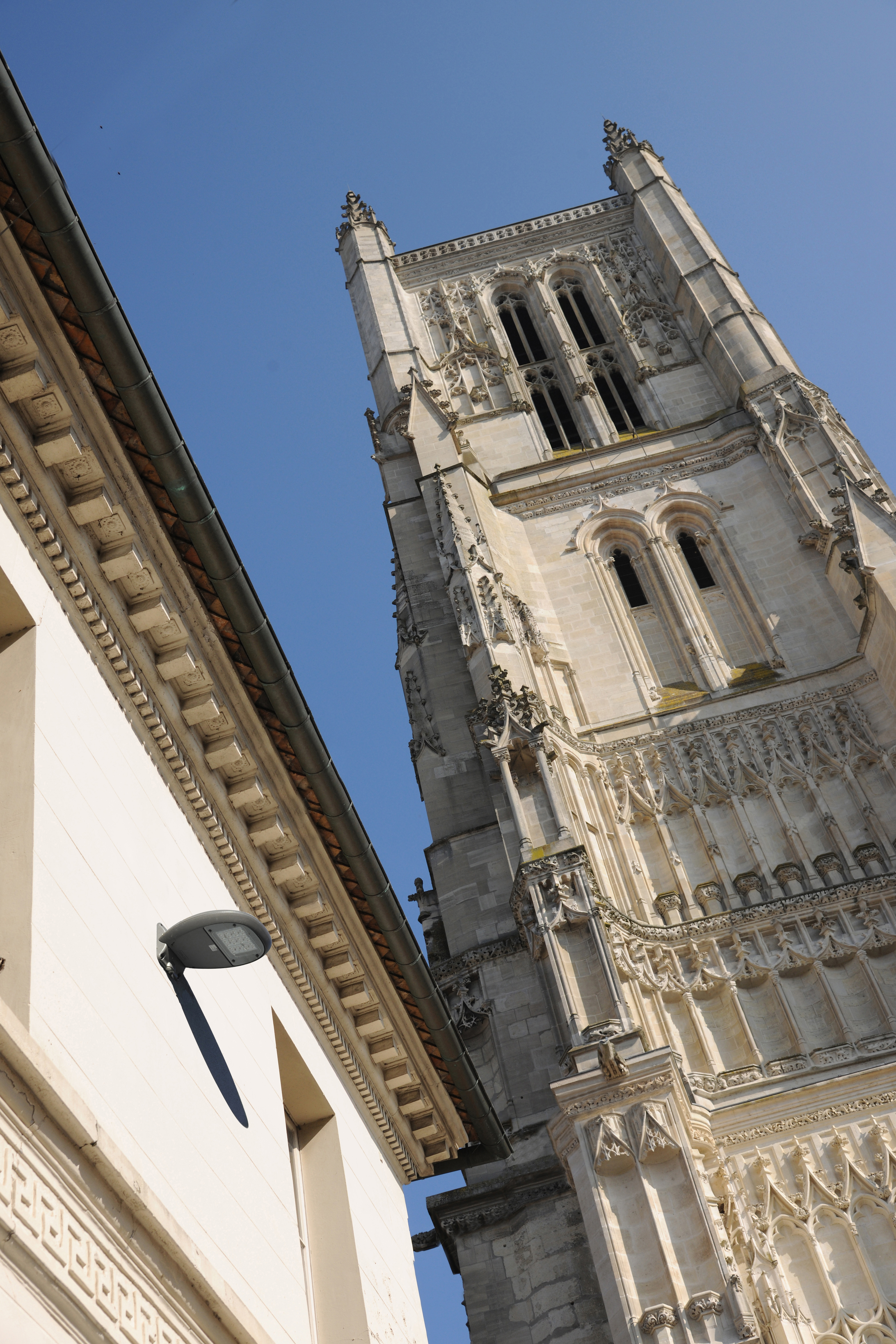

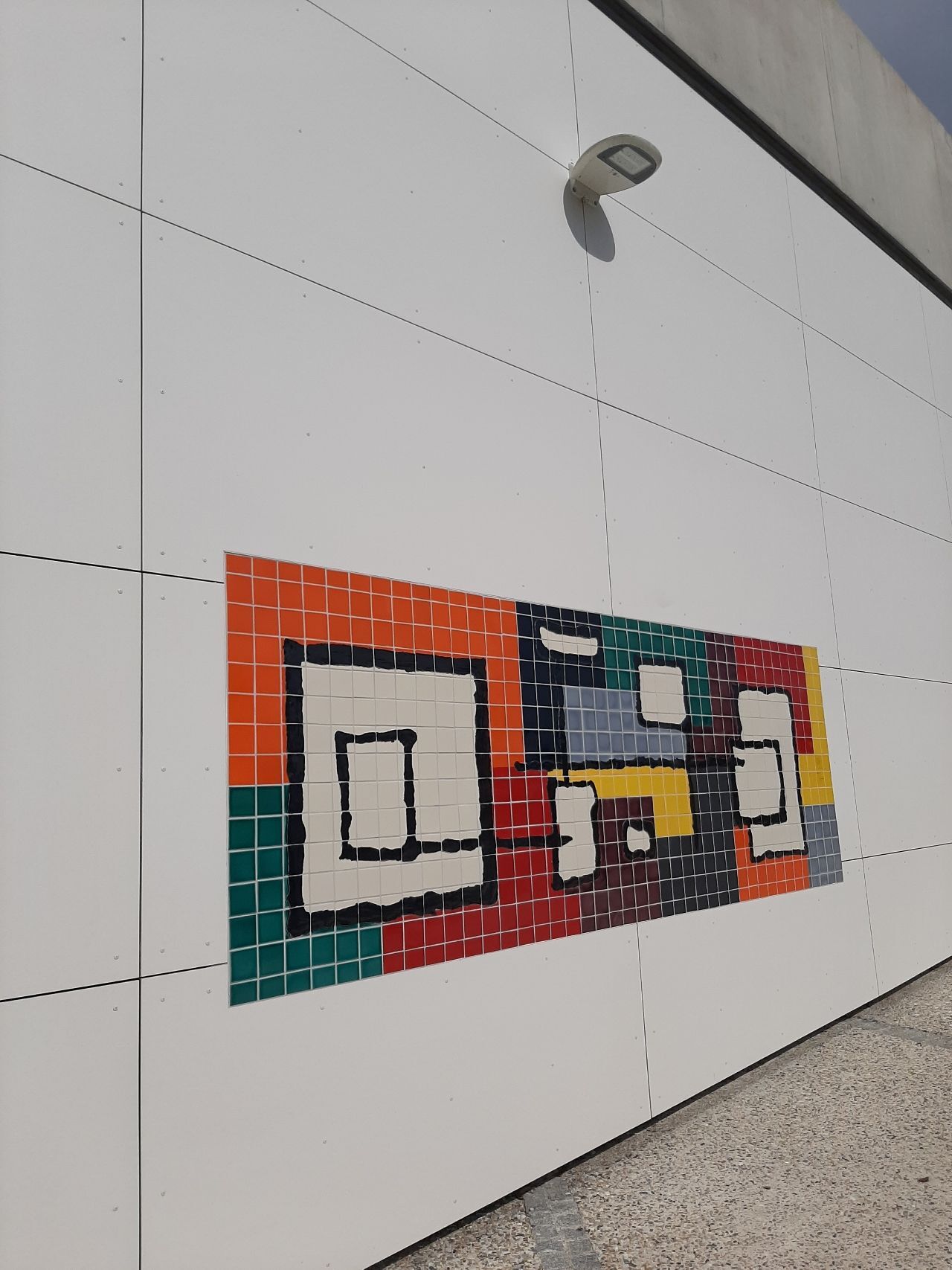

Primarily designed for bracket mounting on facades, SONATA has been designed like a light and discrete partition. Its lines, elusive and slender, melt with discretion into various urban scenario’s. SONATA excels in narrow streets, mounted on brackets and thus without impact on pedestrian routes, SONATA lights roadways up to 9 metres wide.

SONATA is equipped with an integrated connection box and a reversible mounting base which adapts to various connection cases and therefore avoids ugly electrical connections.

Optionally, the upper face of SONATA can accept a retro-lighting module for facades, controlled by an astronomical clock where necessary, so as to comply with nocturnal shutoff regulations without requiring double cabling.

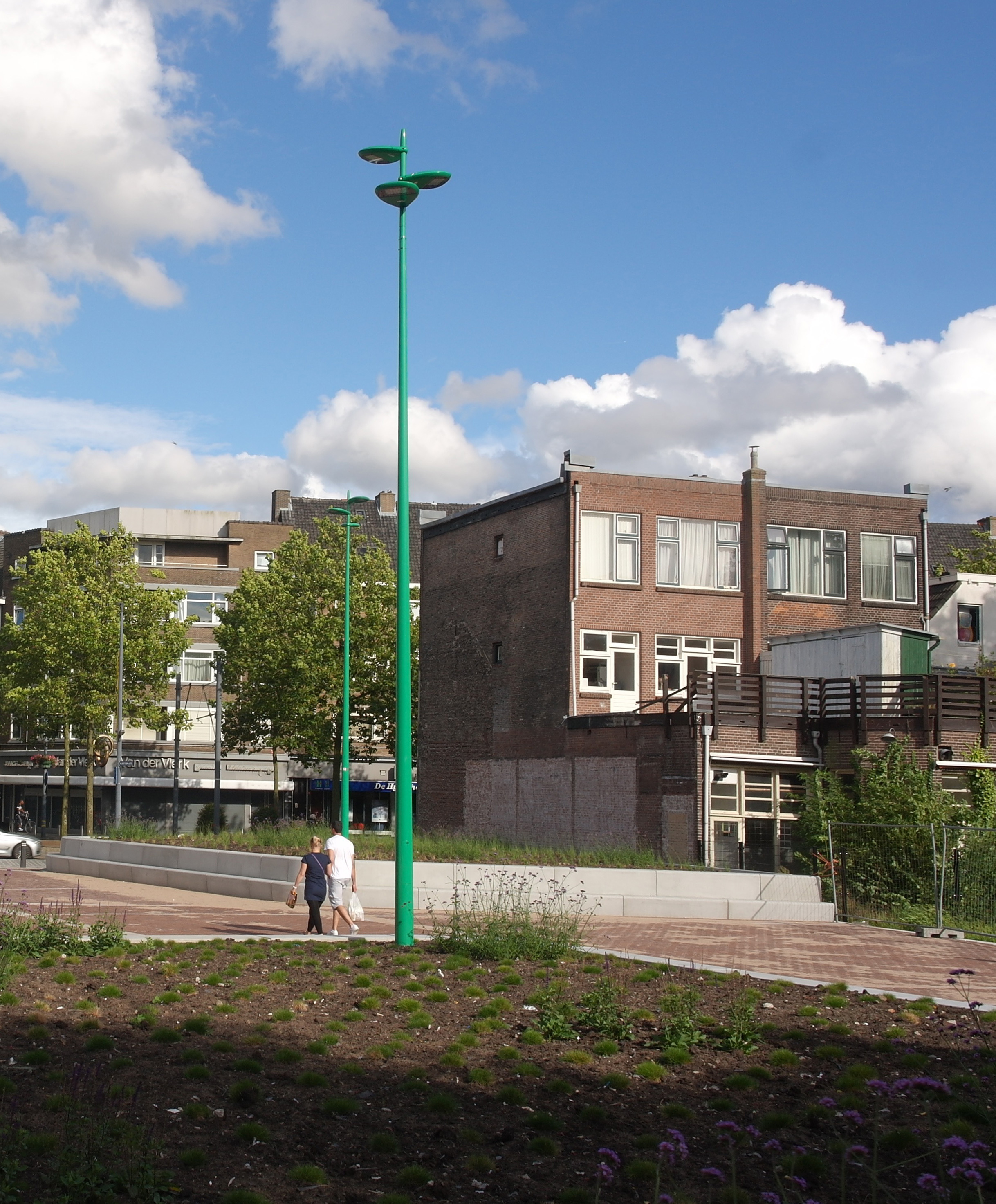

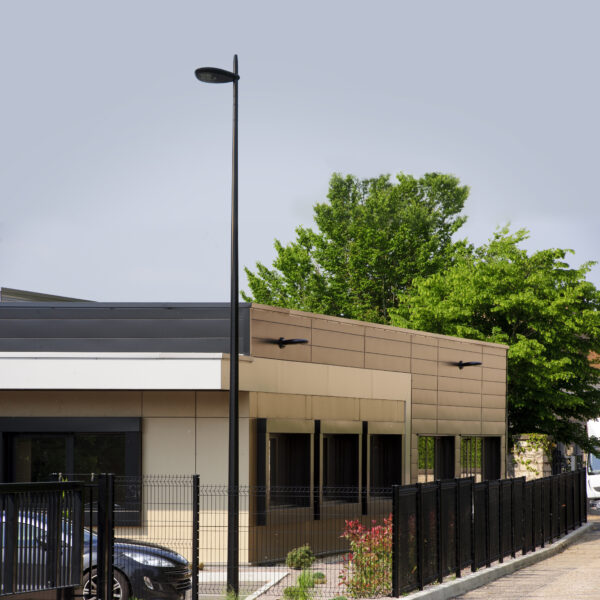

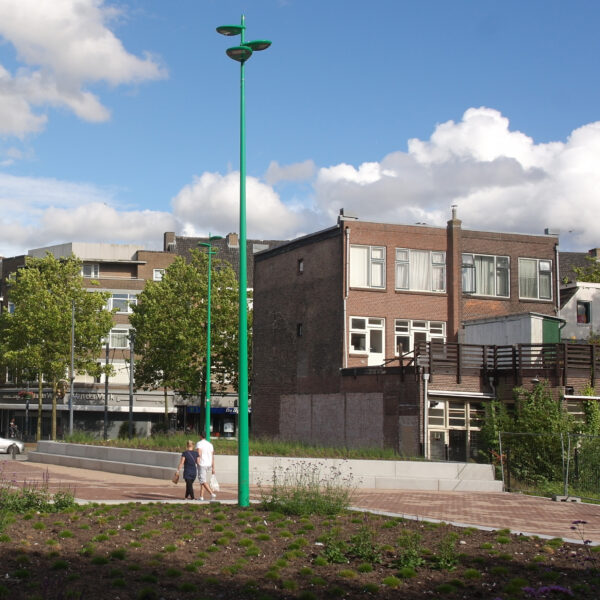

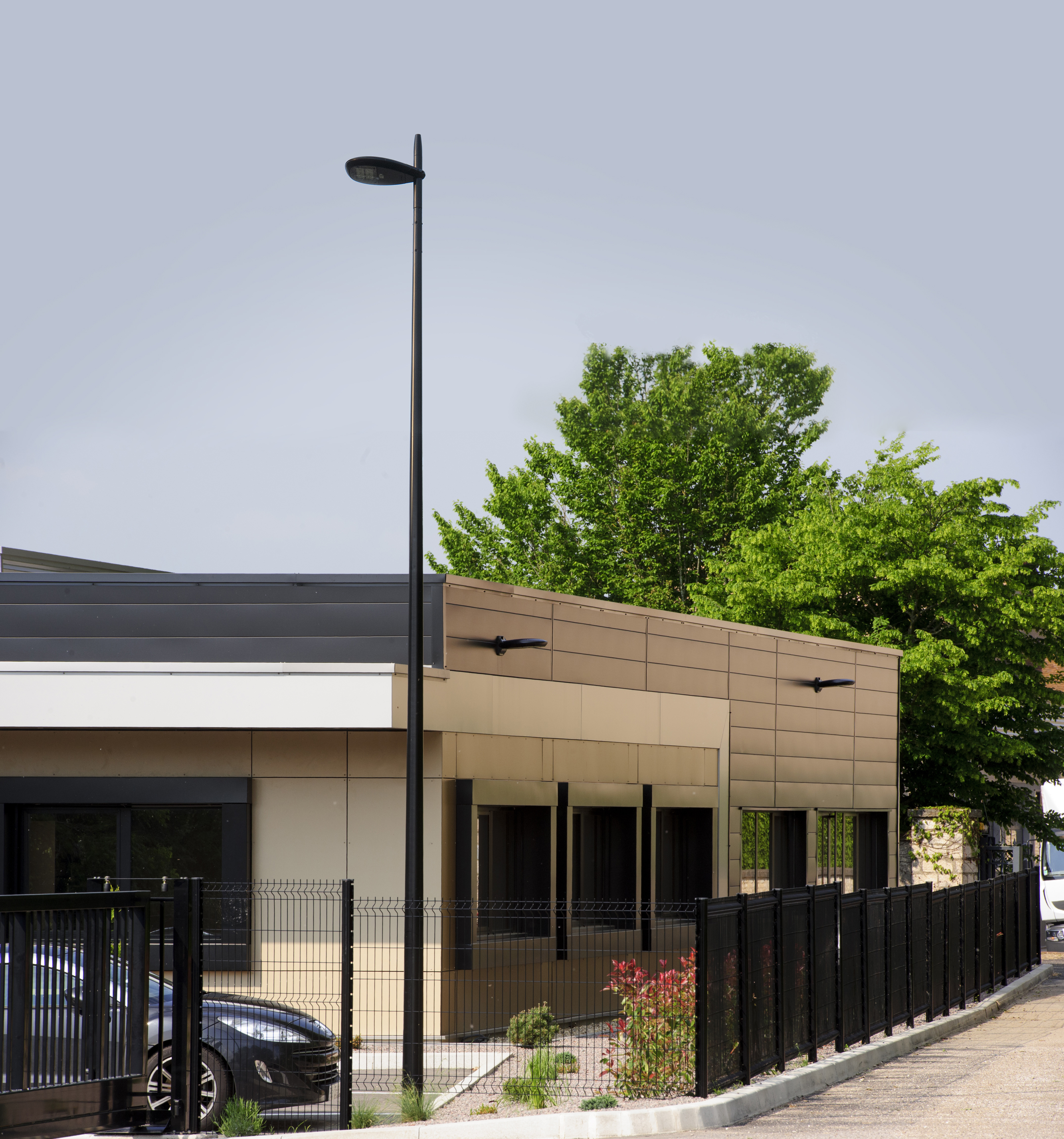

The SONATA luminaire is also suitable for pole mounting with an original mounting extending the pole upwards for 1 to 3 superimposed lights.

APPLICATIONS

Cycle paths

Footpaths

Residential streets

Residence areas

Parking lots

APPLICATIONS

Mounting: wall-mounted, top
Urban streets, pedestrian routes, cycle paths, residential lighting, town-centre, architectural emphasis
Recommended heights: 4 to 6 m

DESCRIPTION

Body, canopy and plate made of injected die-cast aluminium
Silkscreen printed, thermally toughened flat glass
Polyester powder coating, any colour available
IP 66 / IK 10 / Class I or II
Convertible wall-mounted plate for guiding cable from above or from the underside
Standard BLS LED strips equipped with QUADRALENS lenses
Colour temperature: 2400 K, 2700 K, 3000 K or 4000 K
Option: protective device against overcurrent and short circuits and / or integrated fuse holder in the luminaire
BACKLIGHTING (VERSION O)
op-mounted RGBW LED in the luminaire cover, adjustable from 0° to 10° with external setting.
PC bowl
Narrow or wide beam with ORALENS lenses
Externally adjustable optical unit for more precise adjustment
DMX control (through wiring with 2 extra dedicated cable glands), multitude of colours and variations
Dedicated power supply: backlighting switched off programmatically (cf. decree of 25 January 2013 relating to the night lighting of non-residential buildings)

CITIZEN REFERENCE POINTS

• Materials used:
-Aluminium 65%, Other 16%, Glass 10%, Steel 8%, Plastic 1%
• Complies with the RoHS directive
• High recyclability rate

WATERPROOFING

• IP 66 waterproofing in accordance with the standard EN 60 529
• Extruded silicone gasket
• 2 anchored cable glands (through wiring possible)
• Breathing system with activated carbon filter

MECHANICAL INTERFACES

Wall-mounted bracket: 4 holes Ø 12 space between centers 180 mm x140 mm
- Tilt 0°, 2.5°, 5°, 7.5° and 10°
- Luminaire tilted at 2°
Post top version with 1 to 3 arms: male bracket fastening Ø 60/Ø 62 mm
- Tilt 7°

DIMENSIONS

SONATA:
Length: 446mm Width: 428mm Height: 83mm
Weight: 7,5kg
Scx: 0,05m2

SONATA O:
Length: 446mm Width: 428mm Height: 95mm
Weight: 7,5kg
Scx: 0,05m2
