STELIUM

design by Eclatec

STELIUM comes from a long tradition of ECLATEC luminaires devoted to road lighting.

Polyvalent, equipped with a wide choice of variants and options, STELIUM has all the advantages that allow it to stand amongst the recognised stars of road lighting and town approaches.

Functional in its essence, STELIUM is also distinguished by its balanced lines and measured volumes and consequently fits well into urban perspectives without clashing, respecting, by its general shape, the usual landmarks of the inhabitants.

APPLICATIONS

Icon cycle-paths

Cycle paths

Icon Footpaths

Footpaths

Icon Residential streets

Residential streets

Icon Main roads

Main roads

Icon Terrain lighting

Terrain lighting

Icon Residence areas

Residence areas

Icon Parking lots

Parking lots

APPLICATIONS

APPLICATIONS

• Mounting: top and side entry
• Recommended heights:
- Stelium 1: 4 to 8 m
- Stelium 2: 6 to 10 m
• Stelium 1: Pedestrian areas, cycle paths, residential areas, street lighting
Stelium 2: Roads, secondary urban and inter-urban streets

DESCRIPTION

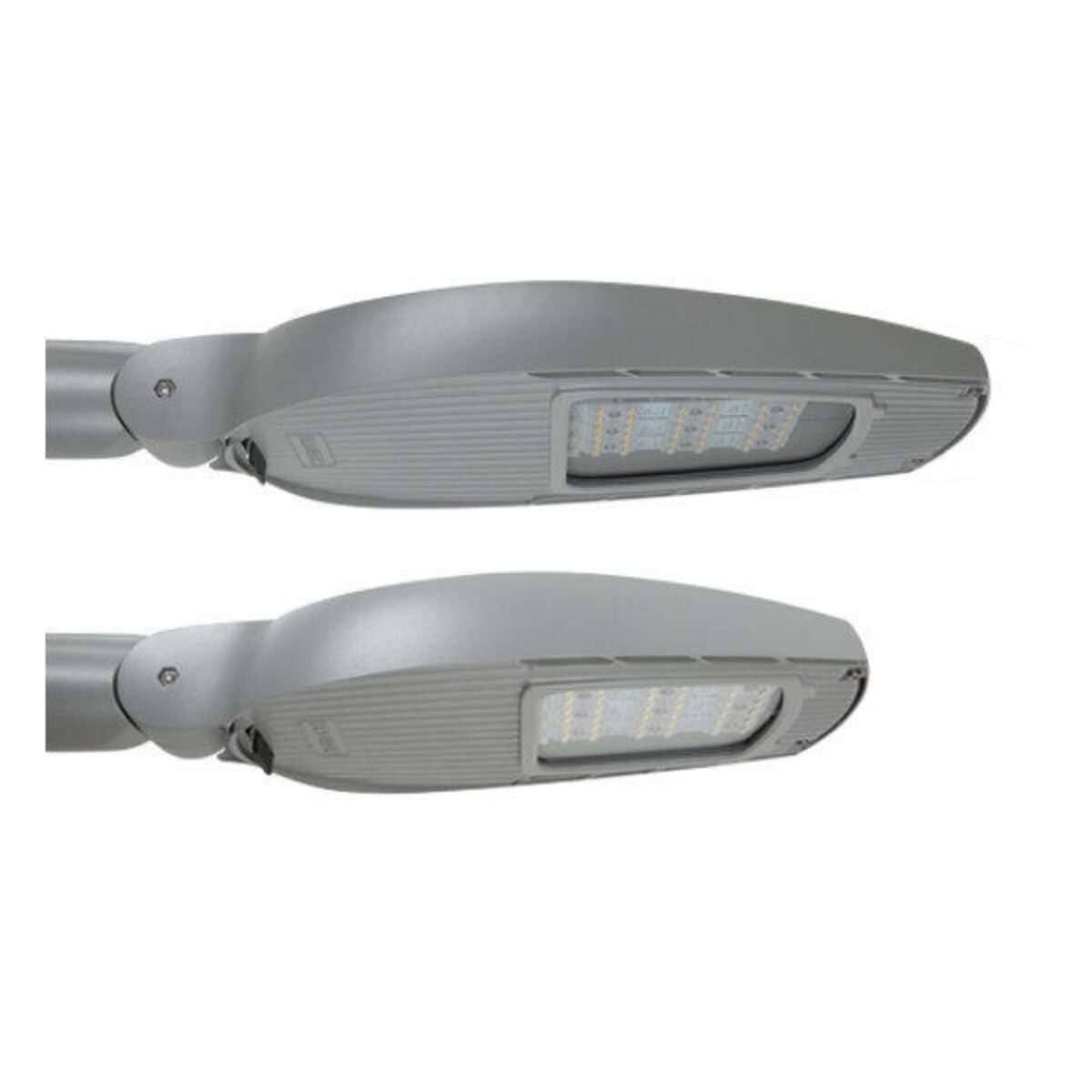

• Luminaire available in 2 sizes: Stelium 1 and Stelium 2
• Injection die-cast aluminium body
• Polyester powder coating, any colour available
• Version S: bi-material grey and transparent bowl in IK 10 polycarbonate
• Version X: Articulated arch in injection-moulded aluminium and bowl in IK 10 thermally tempered glass
• IP 66
• Class I or II
• Standard BLS LED strips equipped with QUADRALENS lenses
• Colour temperatures:
2200, 2400 K, 2700 K, 3000 K or 4000 K

CITIZEN REFERENCE POINTS

• Materials used:
- Stelium S1:
Aluminium 70%, Other 10%, Plastic 11%, Steel 9%
- Stelium S2:
Aluminium 64%, Other 15%, Plastic 13%, Steel 8%
- Stelium X1:
Aluminium 72%, Other 10%, Plastic 1 %, Steel 9%, Glass 8% - Stelium X2:
Aluminium 68%, Other 13%, Plastic 1%, Steel 8%, Glass 10%
• Complies with the RoHS directive
• High recyclability rate

WATERPROOFING

• IP 66 waterproofing in accordance with the standard EN 60 529
• Extruded silicone seal
• Cable gland
• Breathing system with activated carbon filter

MECHANICAL INTERFACES

Pivoting sleeves:
- Top or Lateral wrapping Ø 60 mm, Ø 49 mm
- Lateral Penetrating Ø 60 mm
- Top wrapping Ø 76 mm
• Tilts:
- TOP: 0° ; +5° ; +10° ;+15° ; +20°
- LAT: 0° ; -5° ; -10° ;-15° ; -20°

DIMENSIONS

STELIUM S1 / X1
• Lenght 649 mm, Width 320 mm, Height 95mm
• Weight S1: 4,8 kg / X1: 5,8 kg
• Scx 0,05m2

STELIUM S2 / X2
• Lenght 749 mm, Width 380 mm, Height 95mm
• Weight S2: 6,6 kg / X2: 7,8 kg
• Scx 0,06m2

CONNECTIVITY

• 0-10V
• DALI
• SR+Zhaga (D4I)
• Bluetooth
