Ghm Eclatec

Lighting
← →

Three decades ago, the WILMOTTE firm designed the ELIPT luminaire, an example of balance that became the icon of street lighting: the many versions of this timeless street lamp are still the preferred choice of urban planners and operators alike. In 2019, the WILMOTTE firm decided to extend this urban adventure by designing the TEO streetlight. TEO perpetuates the main ELIPT qualities updated with the best current trends and technology.

TEO’s well designed and fluid qualities will make it a must for urban development. A wide range of mast arms and accessories completes the offer. TEO is available in an S and X version for both sizes.

APPLICATIONS

Cycle paths

Footpaths

Residential streets

Residence areas

Applications

• Mounting: top, suspended, bitop and side entry
• Teo 45: Pedestrian areas, cycle paths, residential areas, street lighting
• Teo 55: Roads, secondary urban and inter-urban streets
• Recommended heights:
Teo 45: 4 to 6 m
Teo 55: 6 to 10 m

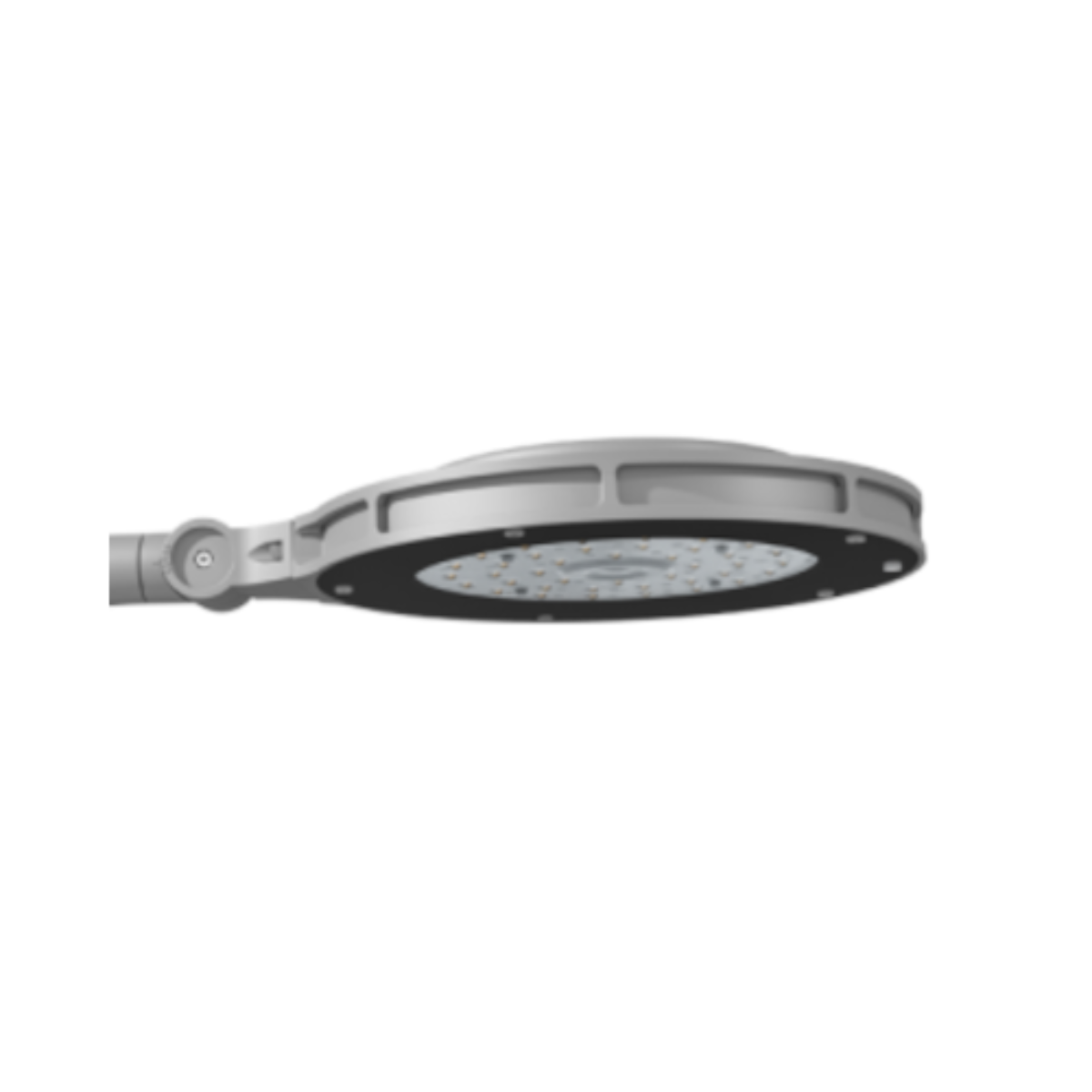

Description

• Luminaire available in 2 sizes: Teo 45 and Teo 55
• Body and frame in injected die-cast aluminium
• Spun aluminium dome
• Polyester powder coating, any colour available
• IP 66
• Class I or II
• 2 types of sources:
ORALED 1 and 2 modules :
- equipped with an ORALENS mono lens in PMMA, IK 08, module colour grey 2150 sanded or 2900 sanded
- colour temperature: 3000 K or 4000 K

BLS modules :
- equipped with BLS with QUADRALENS lenses and PC bowl, IK 10, module colour grey 2900 sanded
- colour temperature: 2,4 K, 2,7 K, 3 K or 4 K

Citizen Reference Points

• Materials used:
- Teo 45: Aluminium 59%, Other 10%, Steel 8%, Glass 20%, Plastic 3%
- Teo 55: Aluminium 60%, Other 8%, Steel 7%, Glass 22%, Plastic 3%
• Complies with the RoHS directive
• High recyclability rate

Montage mogelijkheden

• Standaard voor top Ø 60/62mm masten
• Optioneel voor top Ø 76mm masten
• Overspanning, Pendel, Wandarm: TEO catenary support

Afscherming en afdichting

• Kabelwartel
• Pneumatische siliconen afdichting
• Ademend door middel van een actief filter

Connectiviteit

• 0-10V
• DALI
• SR+Zhaga (D4I)
• Bluetooth

Dimensies

TEO 45:
• Ø 435 mm, Height 90 mm
- Weight: 8,6 kg
- Scx: 0,10m2

TEO 55:
• Ø 510 mm, Height 90 mm
- Weight: 10,7kg
- Scx: 0,13m2

Opties

• Voorzien met 6, 9 of 13 mtr kabel HO7RNF
• Zeewaterbestendige coating
• Diverse koppelstukken
• Overspanning mogelijkheden
• Back Light Shields
• Bijpassende masten, uithouders en wandarmen
