TILT T

Lighting
← →

TILT opened the road to medium height lighting in a refined style; this pioneer is essential when mounting on top of the pole is required and it therefore remains available in its original design.

Added to this original luminaire, the new TILT T range applies, with its four models, the arguments of top or lateral mounting, thanks to a reversible sleeve and also the argument of modularity and easy intervention.

In effect, the four luminaires in the TILT T1, T2, T3 and T4 range accept an easily interchangeable PADLED module and are designed to facilitate rapid access to the equipment.

The nominal flux range scales from 2,000 lm up to 28,000 lm.

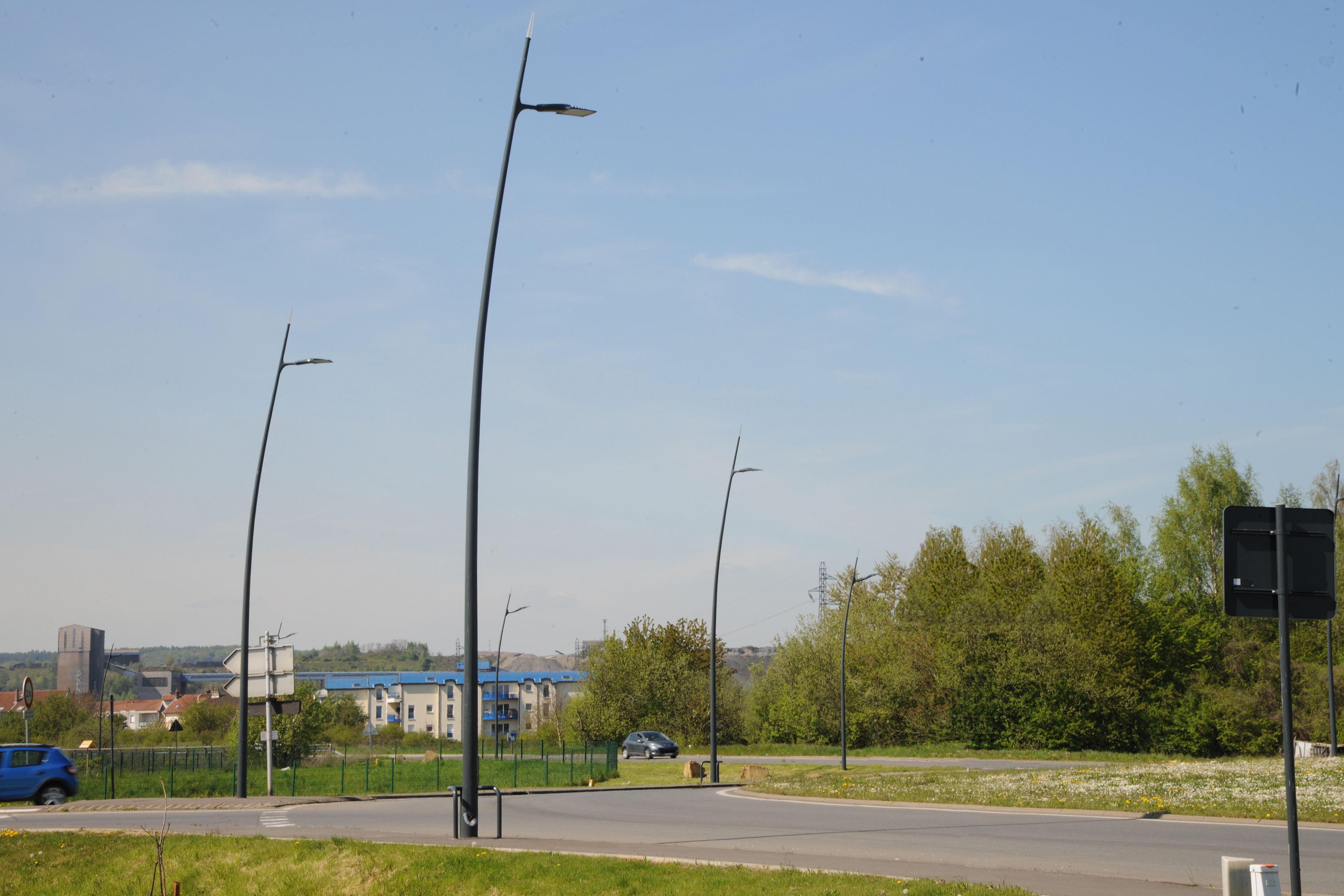

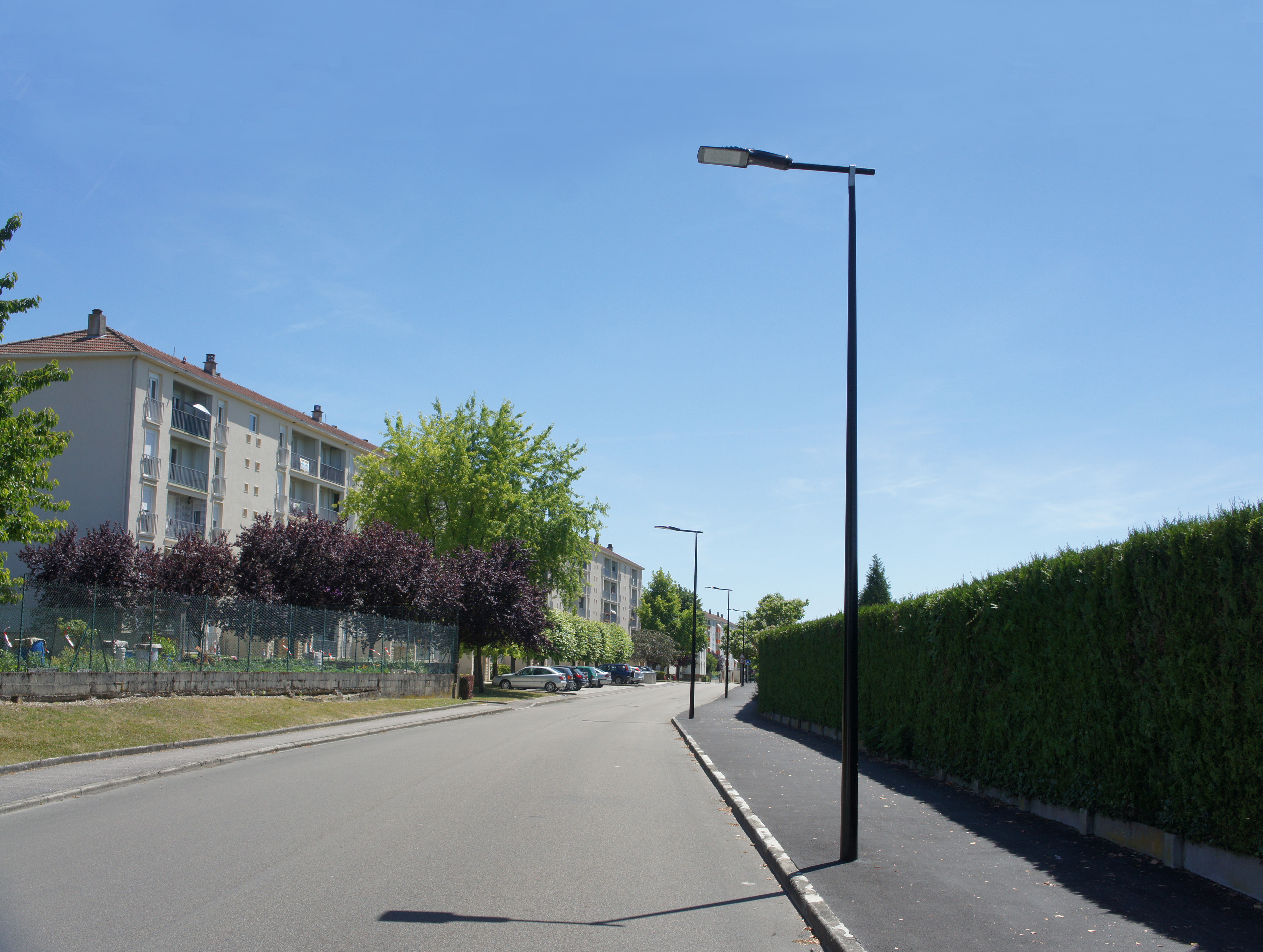

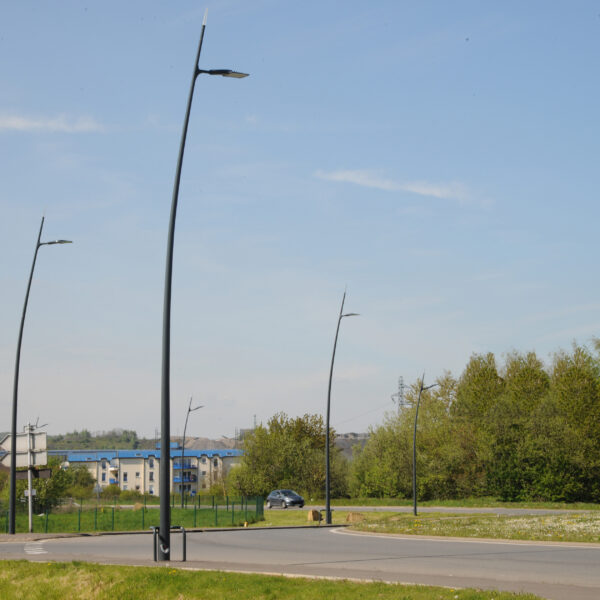

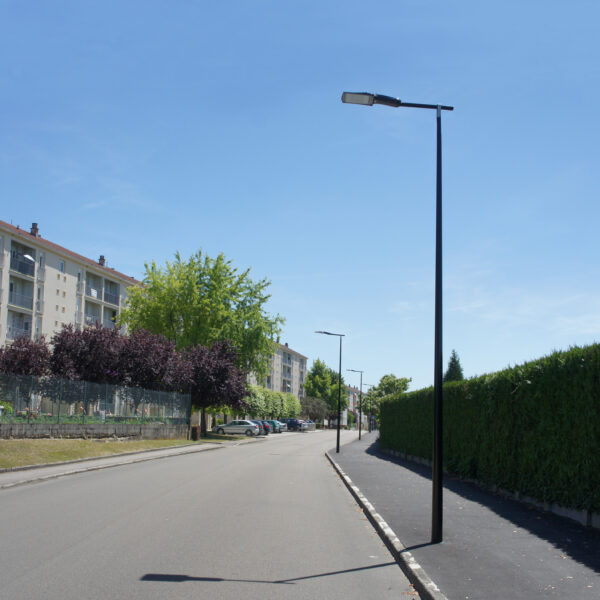

APPLICATIONS

Cycle paths

Footpaths

Residential streets

Main roads

Terrain lighting

Residence areas

Parking lots

APPLICATIONS

• Mounting: top, bitop and side entry
• Recommended heights:
TiltT1: 4to6m
TiltT2: 6to8m
TiltT3: 7to10m
Tilt T4: 7 to 12m
• Tilt T1: Pedestrian areas, cycle paths, residential areas, street lighting
• Tilt T1/ T2/T3/T4: Roads, secondary urban and inter-urban streets

DESCRIPTION

• Luminaire available in 4 sizes: Tilt T1, Tilt T2, Tilt T3 and Tilt T4
• body and cover made of injected die-cast aluminium
• Polyester powder coating, any colour available
• IP 66
• IK 09
• Class I or II
• PADLED modules equipped with BLS with QUADRALENS lenses and bowl in thermally toughened and printed glass
• Colour temperature: 2400, 2700, 3000 K and 4000 K

CITIZEN REFERENCE POINTS

• Tilt T1:
- Aluminium 65%, Glass 13%, Other 16%, Steel 5%, Plastic 1%
• Tilt T2:
- Aluminium 63%, Glass 17%, Other 13%, Steel 6%, Plastic 1%
• Tilt T3:
- Aluminium 62%, Glass 19%, Other 13%, Steel 5%, Plastic 1%
• Tilt T4:
-Aluminium 68%, Glass 23%, Plastic 6%, Steel 2%, Other 1%
• Complies with the RoHS directive

WATERPROOFING

• IP 66 waterproofing in accordance with the standard EN 60 529
• Extruded silicone gasket
• Cable gland
• Breathing system with activated carbon filter

MECHANICAL INTERFACES

• Top 60 and Top 76: post top fastening Ø 60 mm and Ø 76 mm, male bracket fastening for Ø 60 mm
• L60 and L76: side female for Ø 60 mm and Ø 76 mm
• LL54: side male mounting for Ø 60 mm steel bracket
• LL48: side male mounting for Ø 60 mm aluminium bracket
• Tilts:
- Top: 0°, 5°, 10° and 15°
- Side: 0°, -5°, -10° and -15°

DIMENSIONS

TILT T1:
Length: 730mm Width: 309mm Height:142mm
Weight: 7kg
Scx: 0,06m2

TILT T2:
Length: 883mm Width: 339mm Height:162mm
Weight: 10kg
Scx: 0,07m2

TILT T3:
Length: 957mm Width: 389mm Height:162mm
Weight: 11,5kg
Scx: 0,08m2

TILT T4:
Length: 998mm Width: 389mm Height:162mm
Weight: 13,5kg
Scx: 0,058m2
