TSANA

Lighting
← →

Does the design of TSANA square the circle?

With TSANA, today’s technical solutions marry an intangible, immutable form, all contained within the magic ratio of a perfect circle.

Compact and discrete, the silhouette of TSANA, enriched by combinations heightening its sober geometry, becomes urban. Available in the most simple of trim, TSANA is also suitable for applications where functionality dominates.

TSANA accepts ORALED modules 1 and 2 or REOLED modules 1 and 2. In X version, TSANA X receives XEOLED modules 1 and 2.

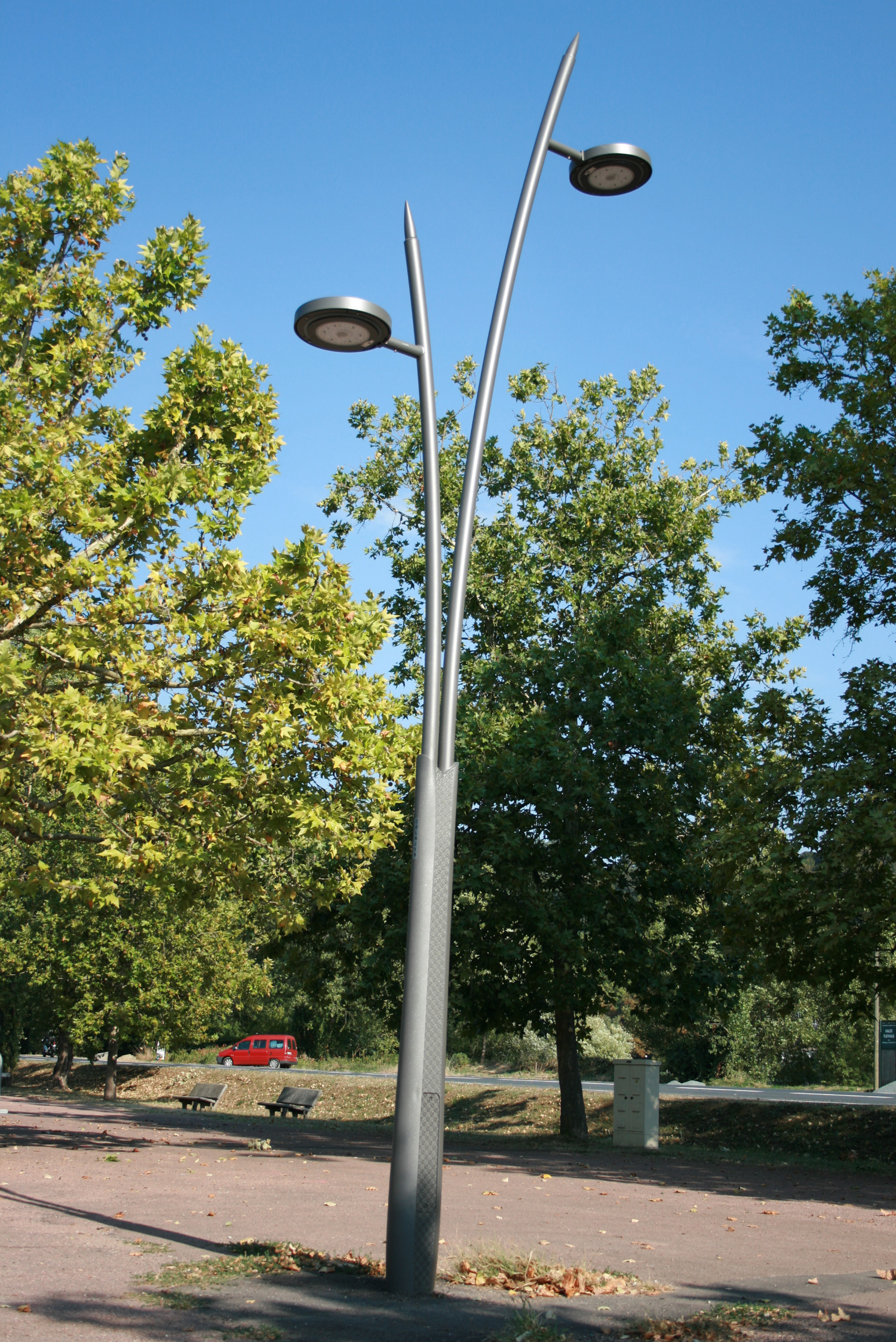

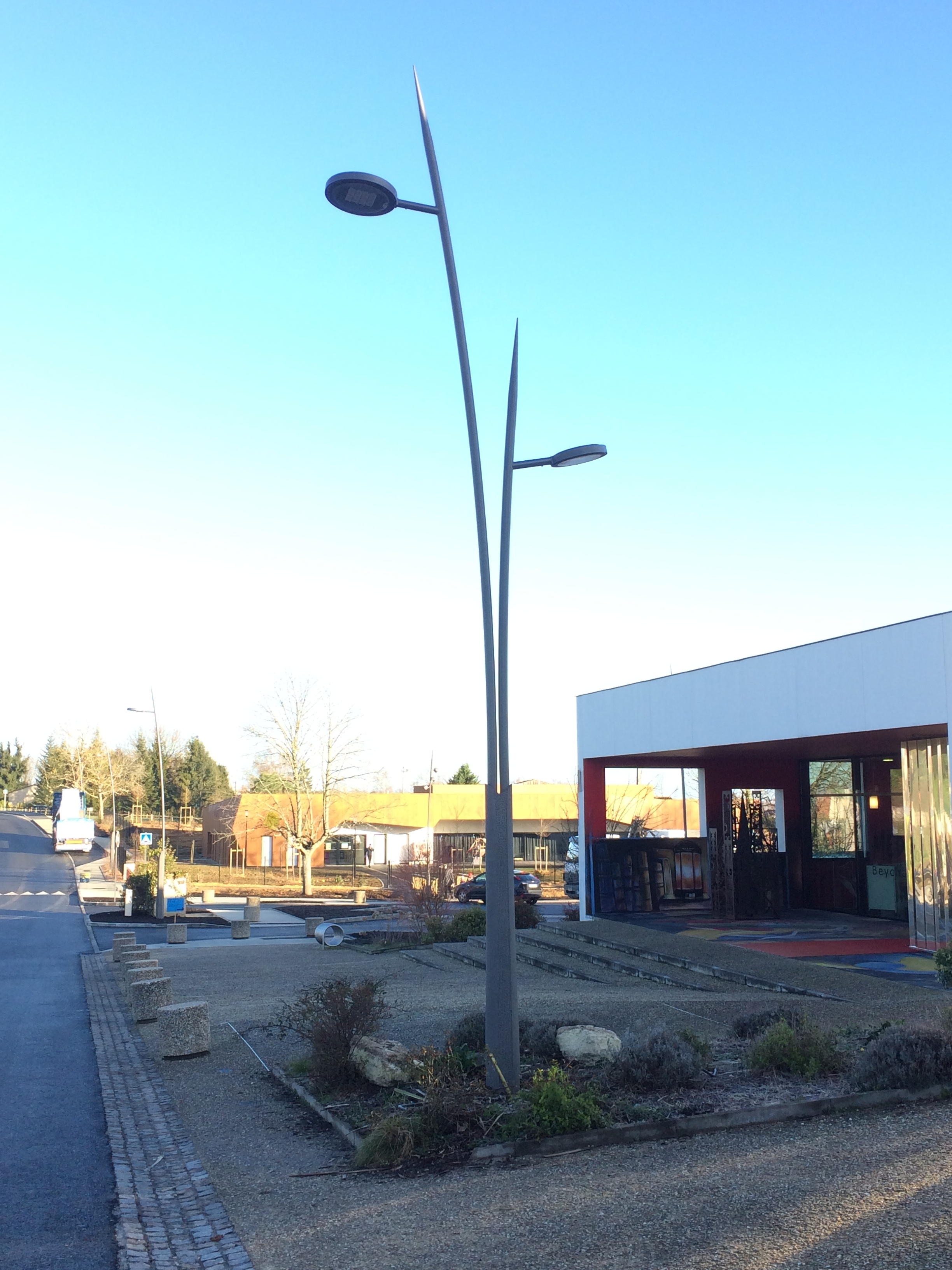

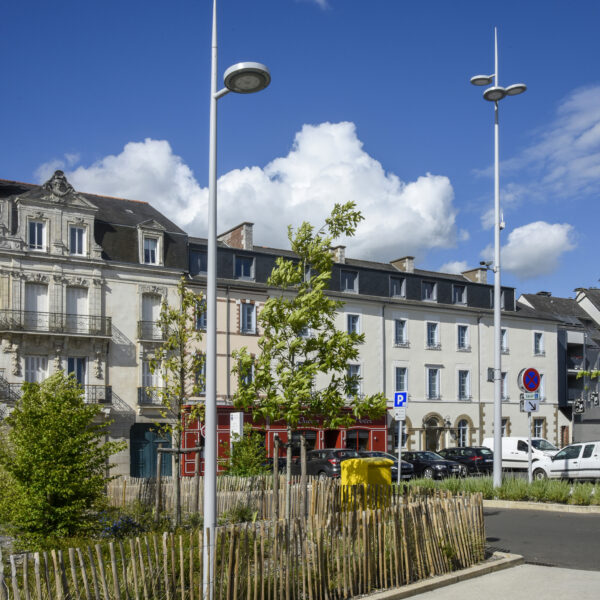

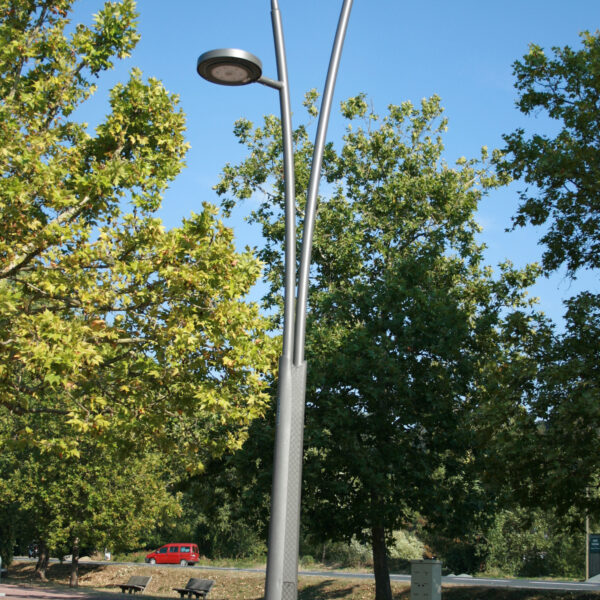

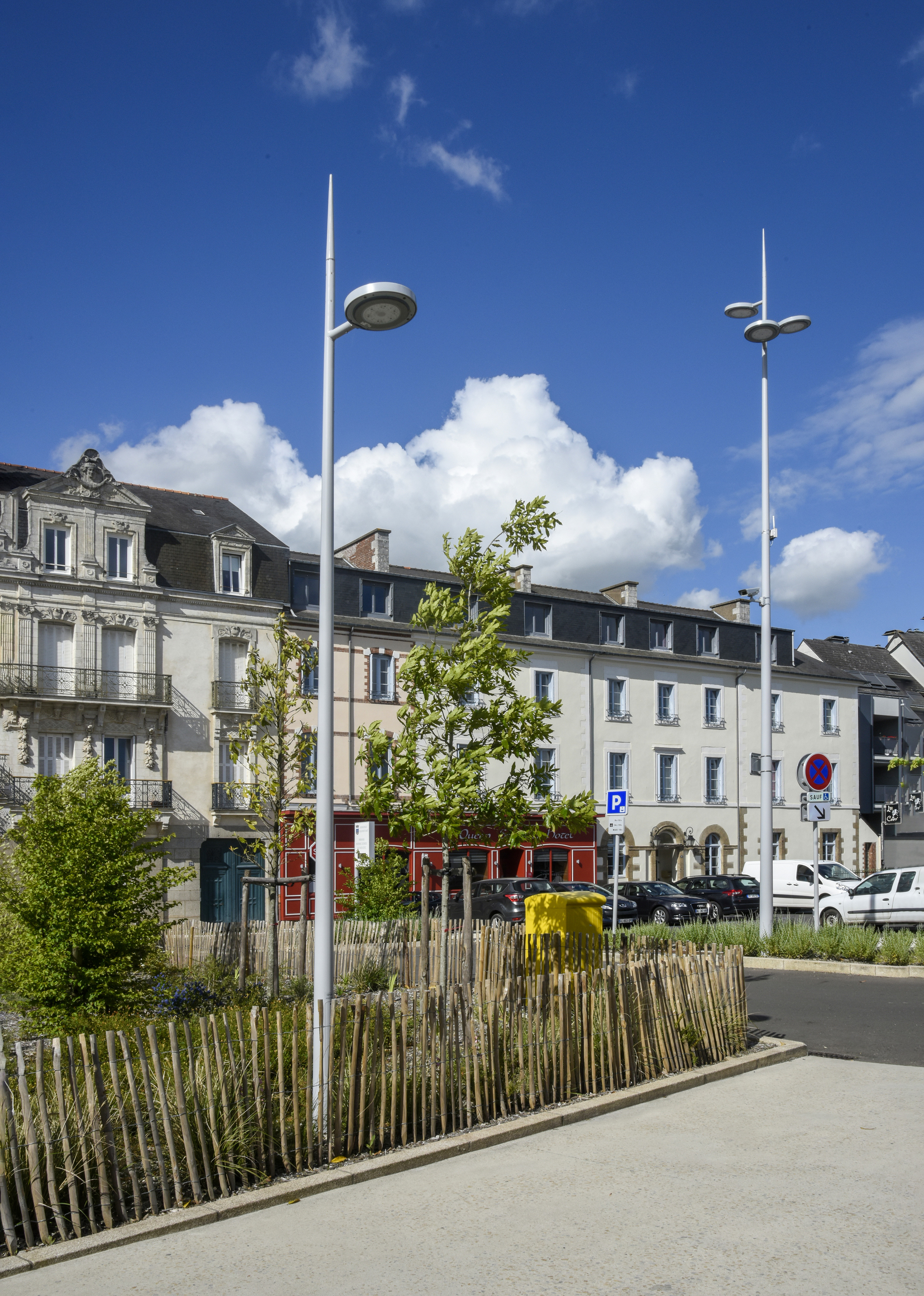

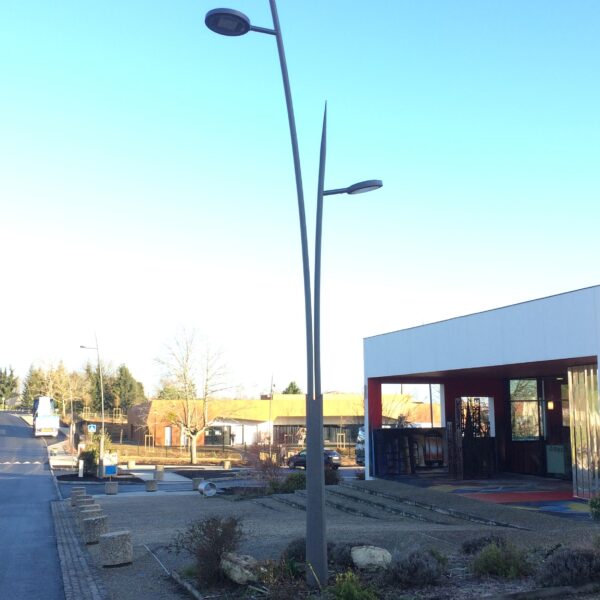

APPLICATIONS

Cycle paths

Footpaths

Residential streets

Residence areas

APPLICATIONS

• Mounting: top, bitop and side entry
• Tsana 45: Pedestrian areas, cycle paths, residential areas, street lighting
• Tsana 55: Roads, secondary urban and inter-urban streets
• Recommended heights:
Tsana 45: 4 to 6 m
Tsana 55: 6 to 10 m

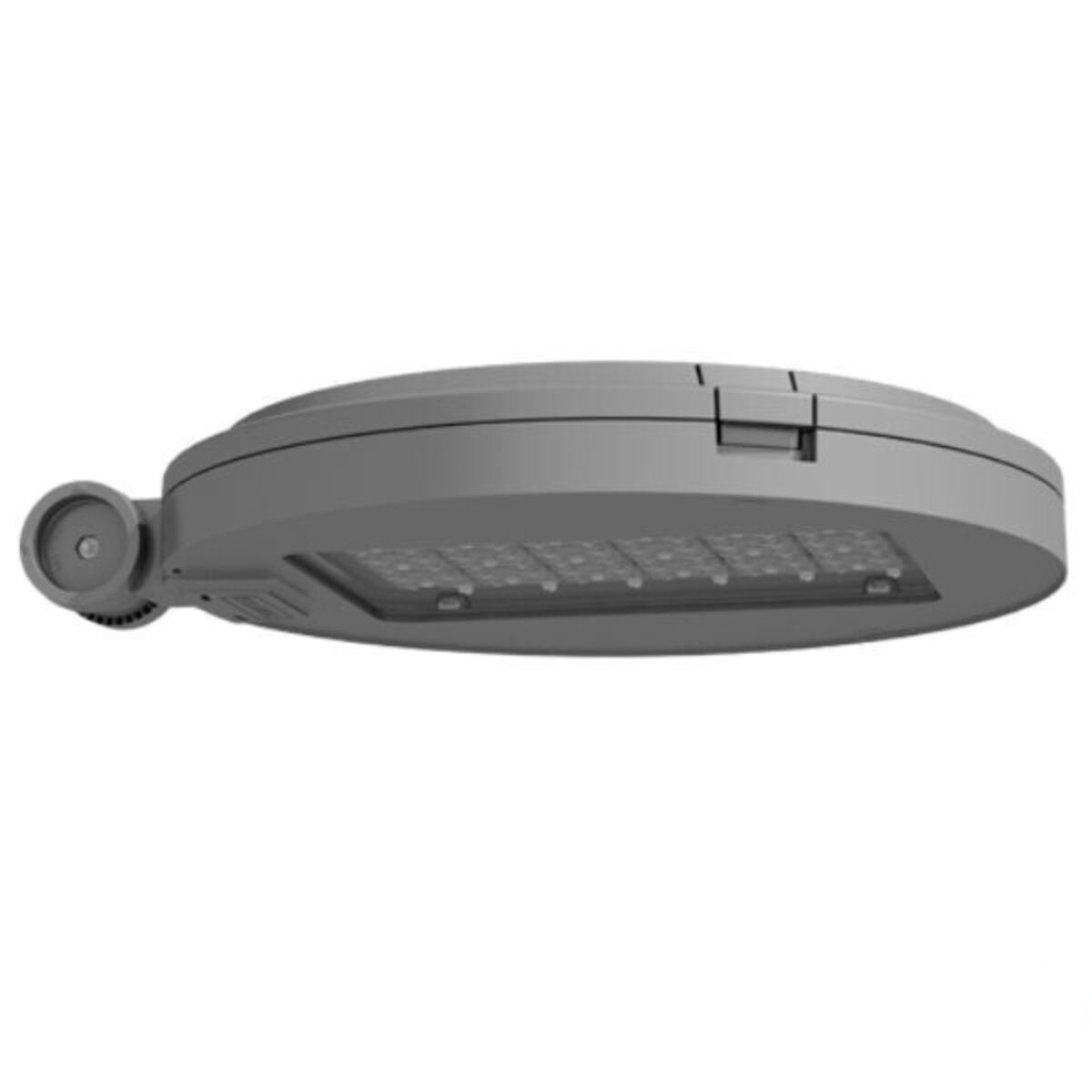

DESCRIPTION

• Luminaire available in 2 sizes: Tsana 45 and Tsana 55
• Body and frame in injected die-cast aluminium
• Spun aluminium dome
• Polyester powder coating, any colour available
• IP 66
• Class I or II
• 2 types of sources:
ORALED 1 and 2 modules :
- equipped with an ORALENS mono lens in PMMA, IK 08, module colour grey 2150 sanded or 2900 sanded
- colour temperature: 3000 K or 4000 K

REOLED 1 and 2 modules:
- equipped with BLS with QUADRALENS lenses and PC bowl, IK 10, module colour grey 2900 sanded
- colour temperature: 2400 K, 2700 K, 3000 K or 4000 K

CITIZEN REFERENCE POINTS

• Materials used:
- Tsana 45: Aluminium 84%, Other 9%, Steel 4%, Plastic 3%
- Tsana 55: Aluminium 86%, Other 7%, Steel 4%, Plastic 3%
• Complies with the RoHS directive
• High recyclability rate

WATERPROOFING

• IP 66 waterproofing in accordance with the standard EN 60 529
• Pneumatic silicone gasket
• Cable gland with anchoring device
• Breathing system with activated carbon filter
