DESCRIPTION

  • Injected cast aluminium body, module and mechanical interfaces
  • Thermally tempered glass
  • Finish in polyester powder coating, in a choice of colours
  • IP 66
  • XEON 1: IK 09, XEON 2 and 3: IK 10
  • Class I or II
  • Pre-wired flexible cable
  • RoHS compliant
  • High recyclability rate

WATERPROOFING

• IP 66 ingress protection
• Extruded silicon joint
• Cable gland
• Light ventilation through active charcoal filter

MECHANICAL INTERFACES

• Attachment for conical or cylindro-conical pole
• Wall light via specific slider Spacing: 140 mm
• Lateral bracket attachment

DIMENSIONS

XEON 1:
Height: 200/178 mm
Weight: 3.3 KG
Scx: 0,03m2

XEON 2:
Height: 240/209 mm
Weight: 3.9 kg
Scx: 0,04m2

XEON 3:
Height: 300/262 mm
Weight: 5.5kg
Scx: 0,06m2

CONNECTIVITY

• 0-10V
• DALI
• SR+Zhaga (D4I)
• Bluetooth

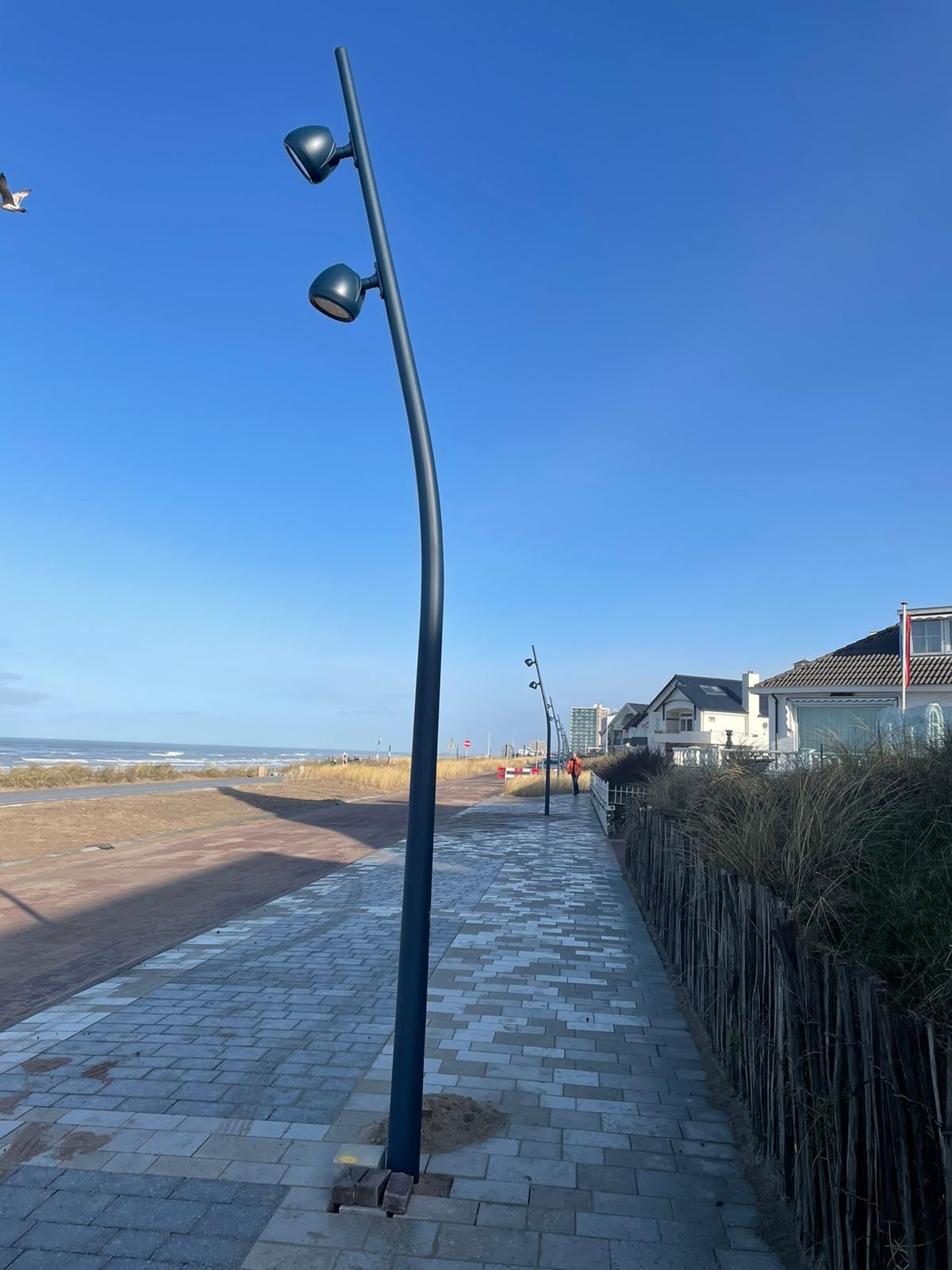

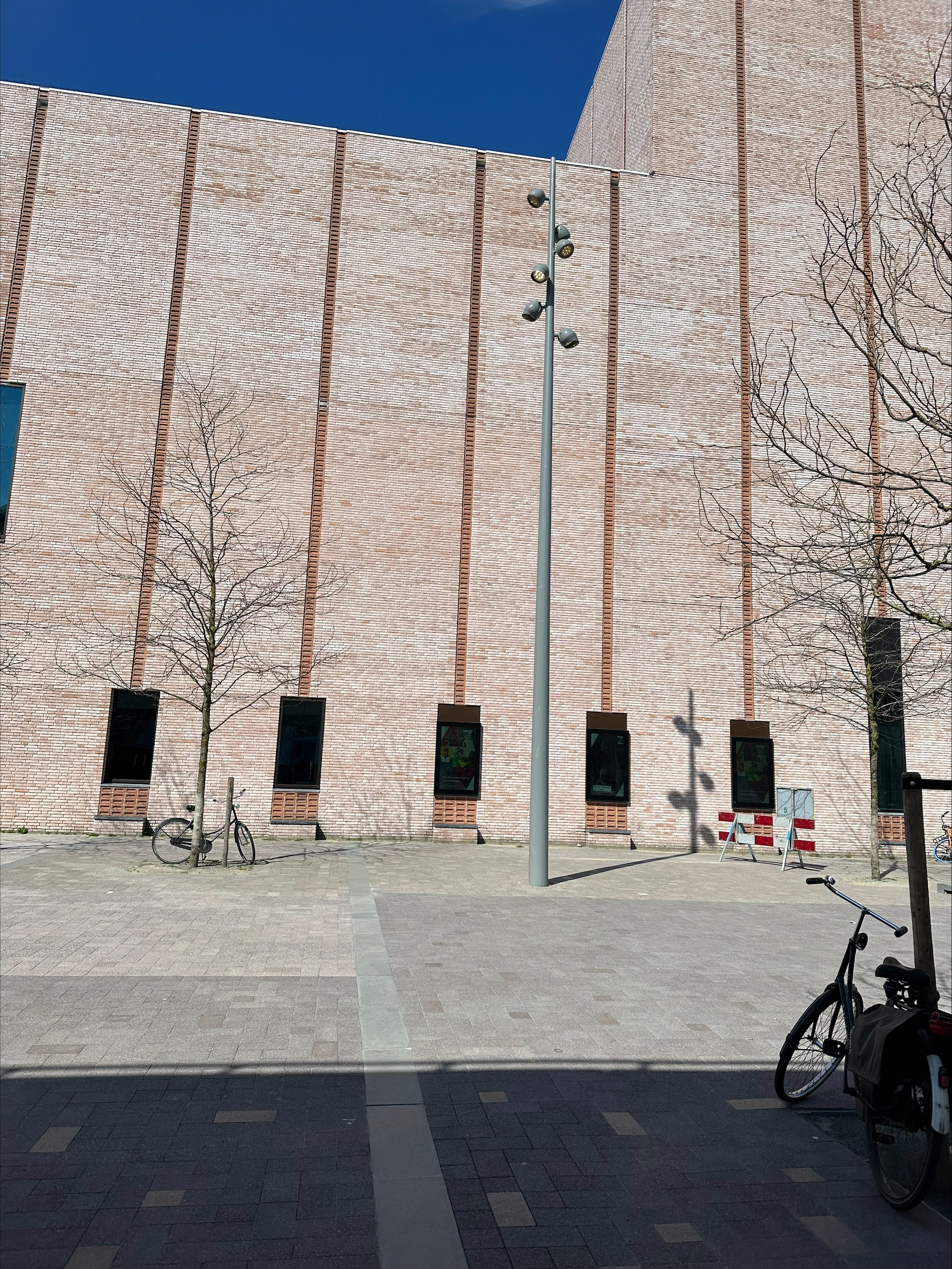

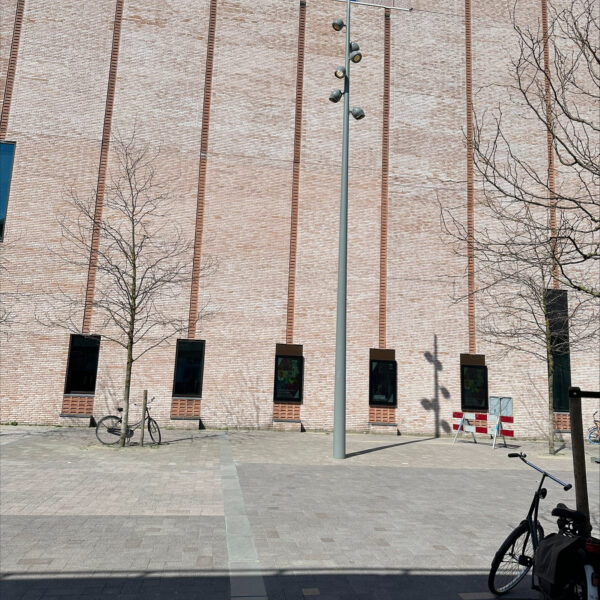

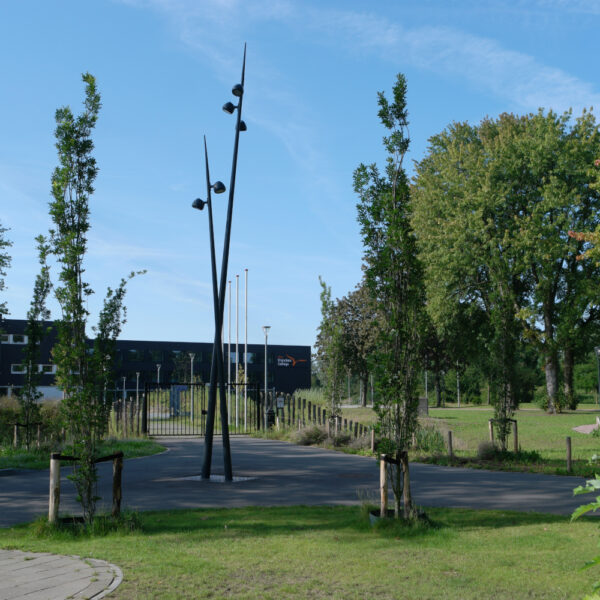

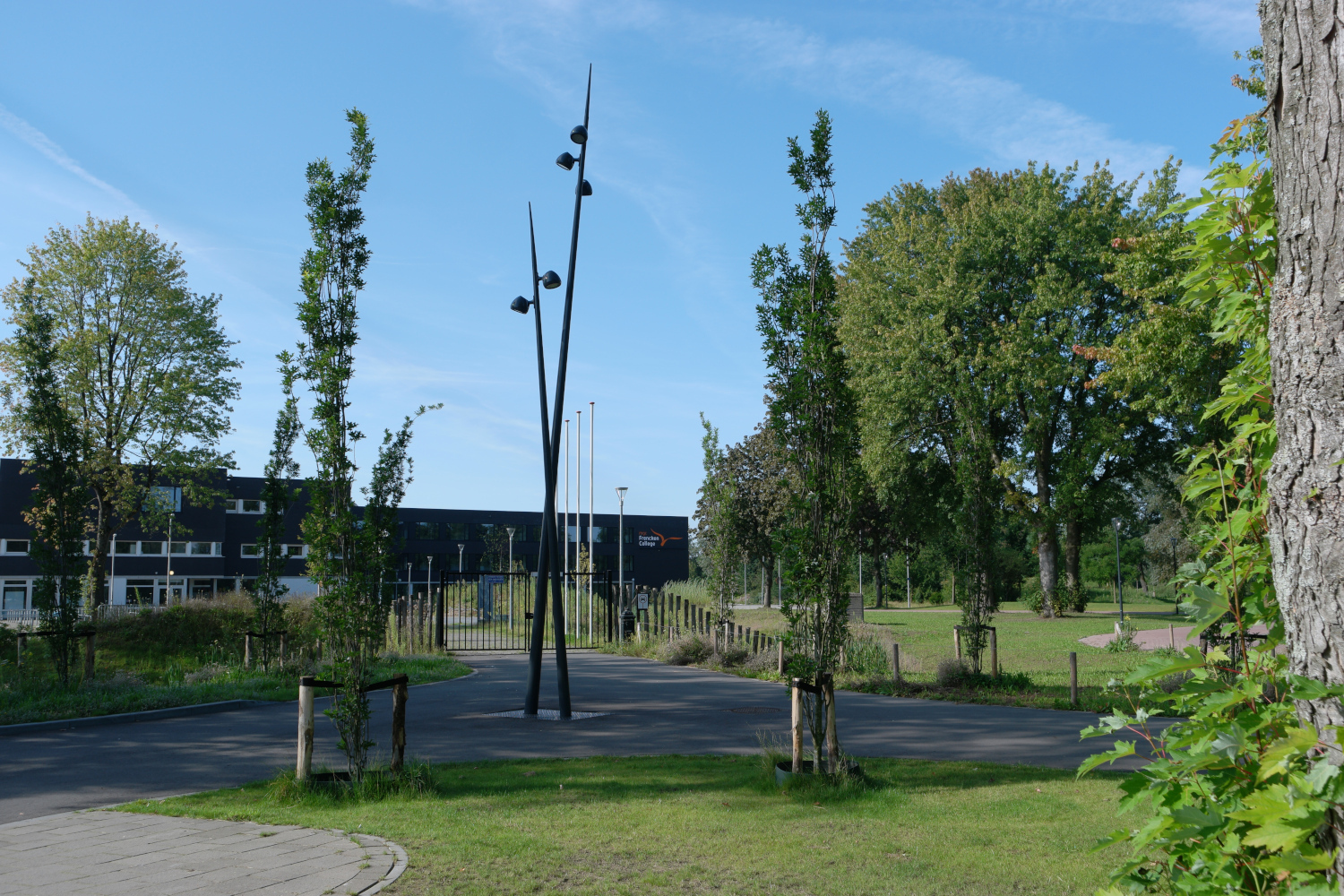

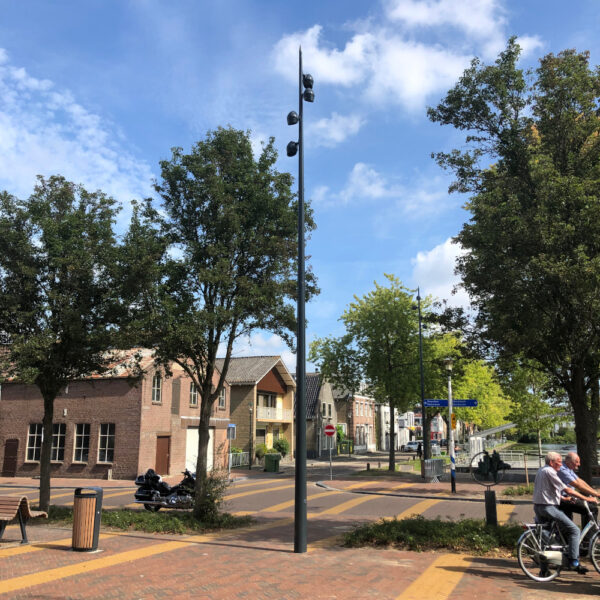

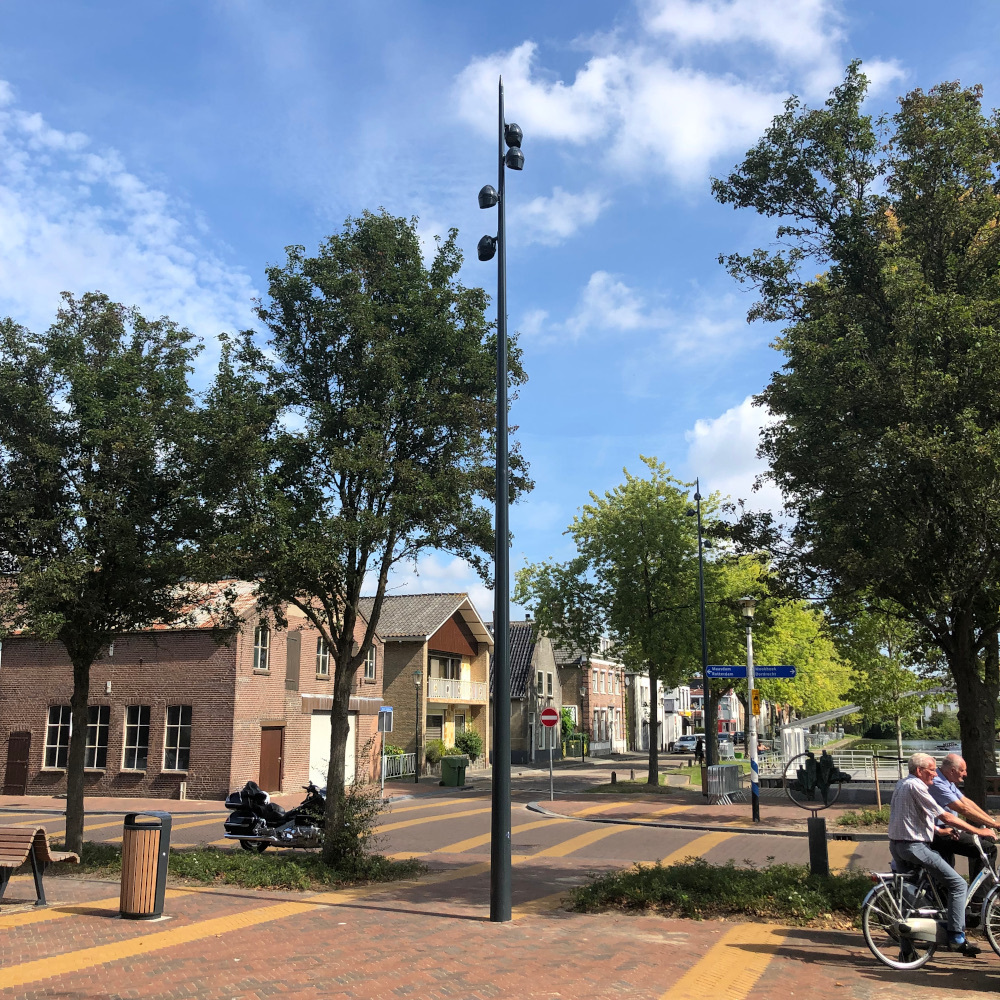

References
