YSALIS

design by GHM

The YSALIS design originates from a streamlined, modernised vision of traditional forms found in GHM catalogues in the 1930s. In its own way, this luminaire thus perpetuates the familiar silhouettes found in the collective subconscious of citizens.

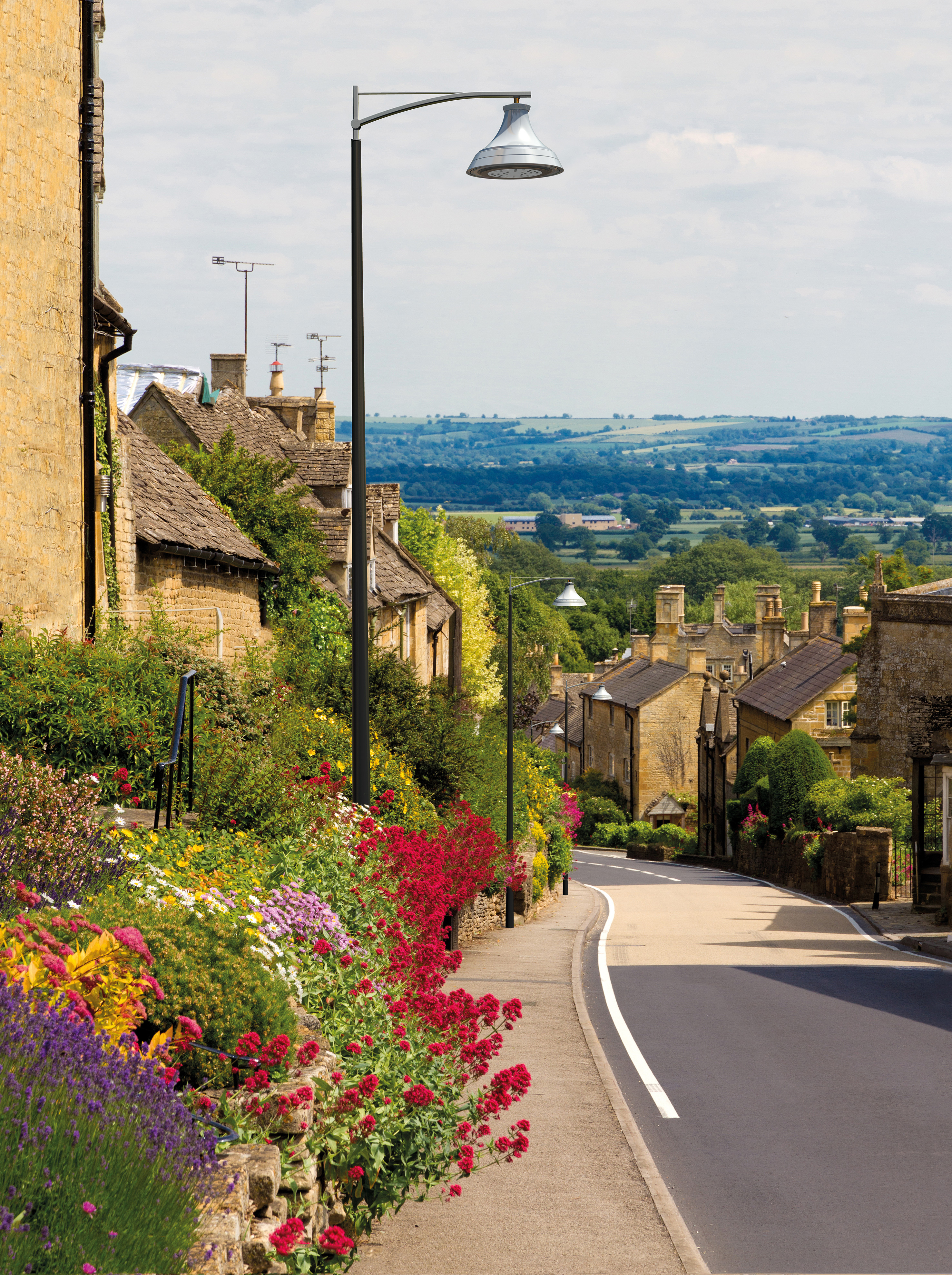

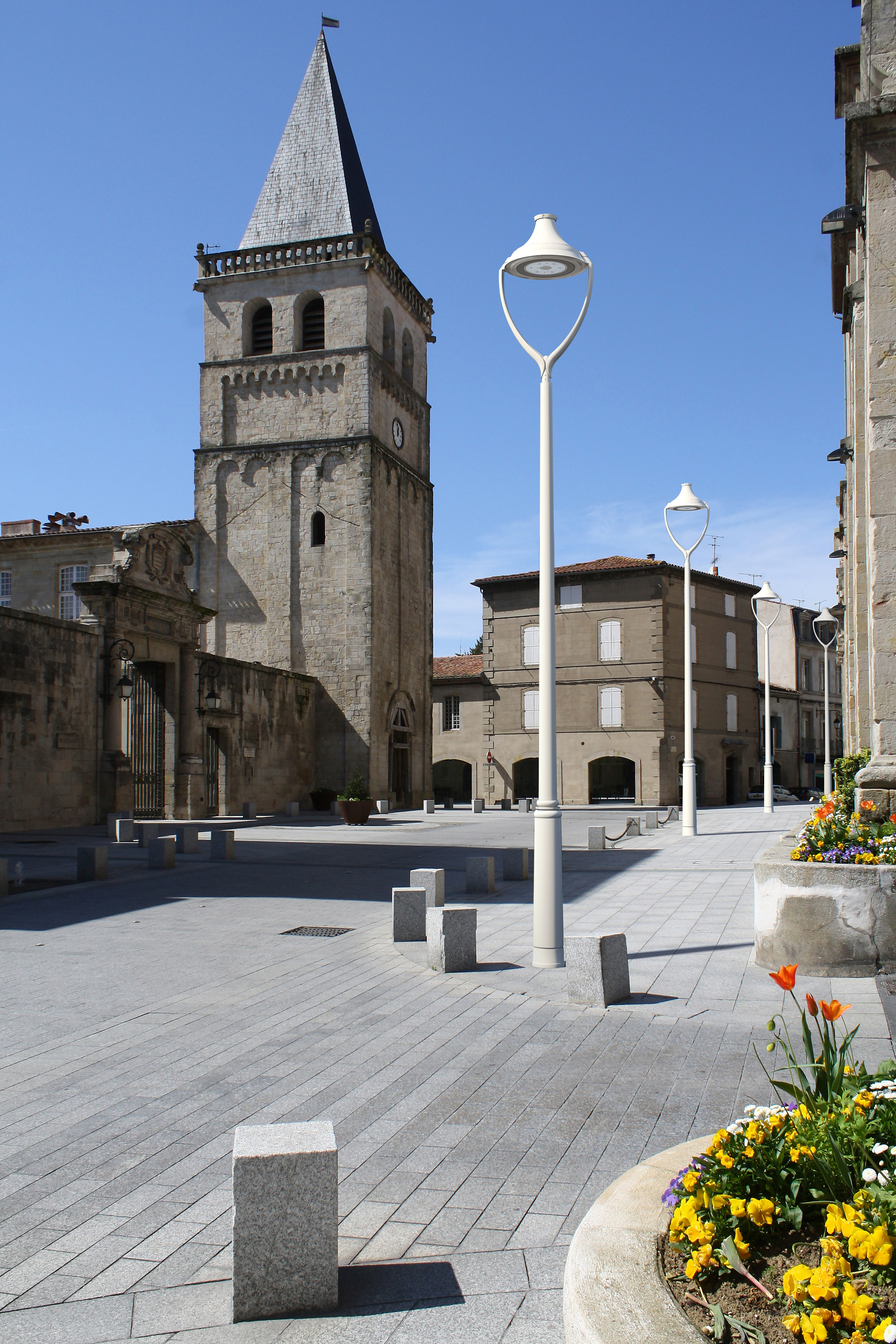

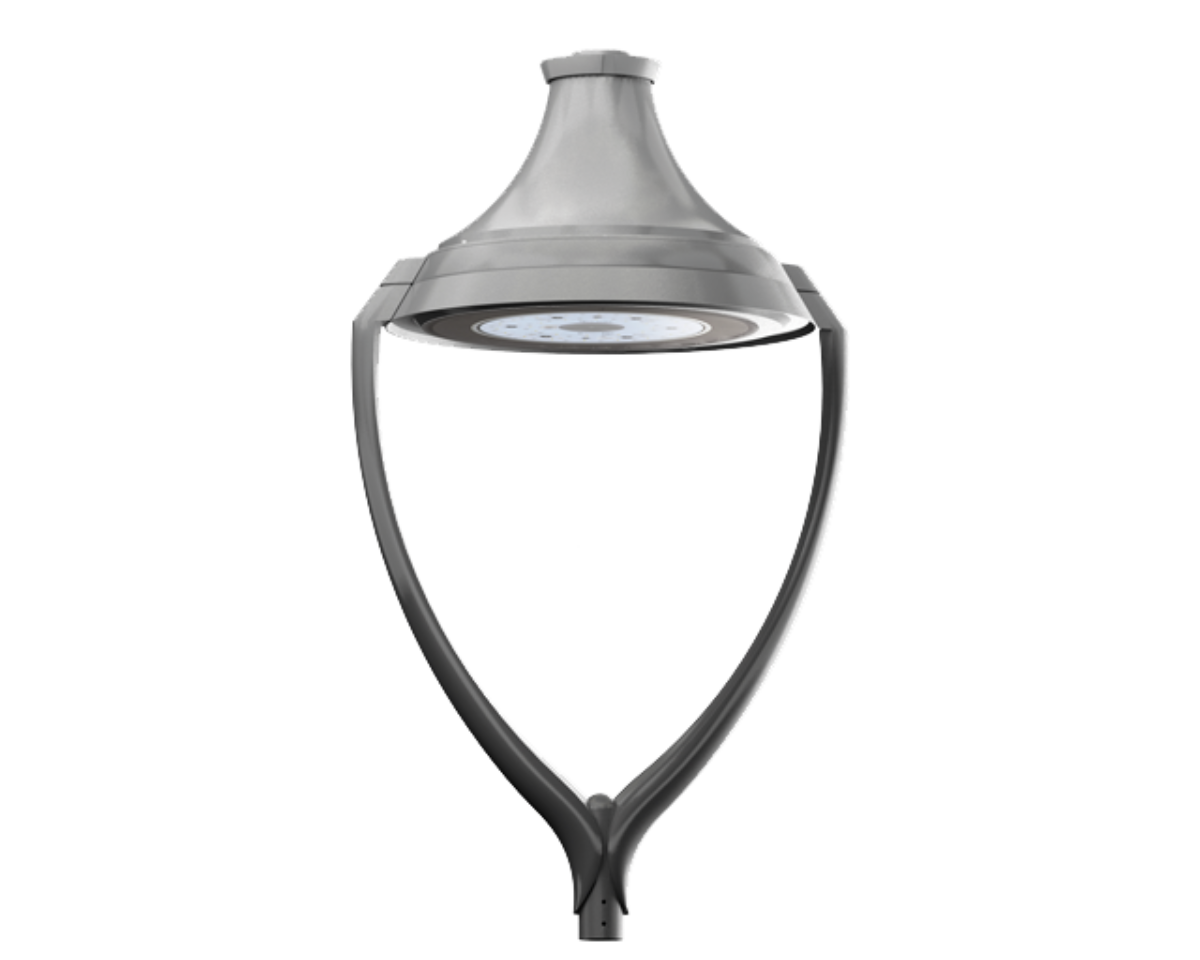

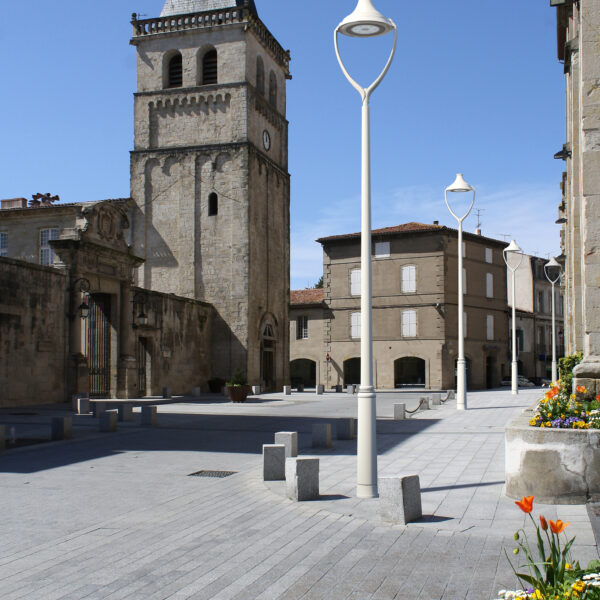

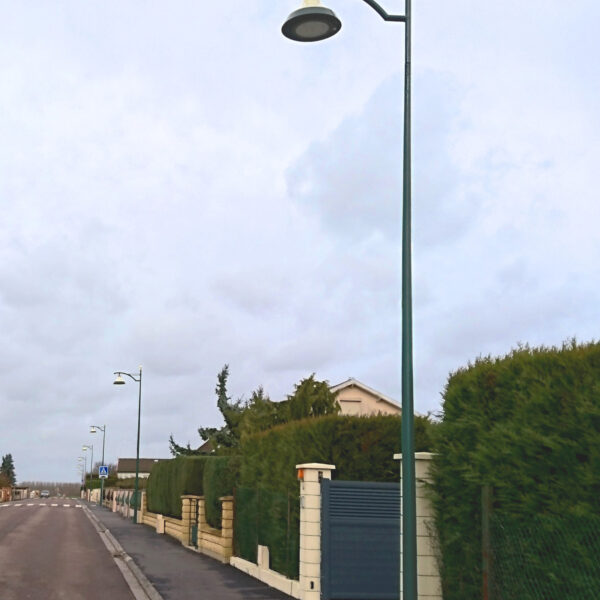

This luminaire, originally designed for top- mounting, can also be combined with a STIRRUP (U-bracket) for pole-top mounting. A wide range of decorative accessories is also available, giving you the option of truly classical versions.

This restyling keeps up with modern technology: in its LED version, YSALIS takes an ORALED 2 oder an SEOLED 2 module.

APPLICATIONS

Icon cycle-paths

Cycle paths

Icon Footpaths

Footpaths

Icon Residential streets

Residential streets

Icon Residence areas

Residence areas

APPLICATIONS

APPLICATIONS

• Mounting: suspended and U-bracket
• Recommended heights: 6 to 8 m
• Urban streets, pedestrians, cycle paths, squares

DESCRIPTION

  • Available in 3 versions: C1, C2 and C3
  • C1, C2 (upper decorative arrangement made of die cast aluminium)
  • C3 (upper and lower decorative arrangements made of die cast aluminium)
  • Die-cast aluminium body
  • Spun aluminium dome
  • Polyester powder coating, any colour available
  • IP 66
  • IK 07
  • Class I or II
  • 2 types of sources:

    ORALED 2 module:
    - equipped with an ORALENS mono lens in PMMA/IK 08, module colour grey 2150 sanded or 2900 sanded
    - colour temperature: 4000 K and 3000 K

    SEOLED 2 module:
    - equipped with BLS with QUADRALENS lenses and glass bowl/IK 08, module colour grey 2150 sanded or 2900 sanded
    - colour temperature: 2400 K, 2700 K, 3000 K or 4000 K

CITIZEN REFERENCE POINTS

• Materials used:
- Aluminium 73%, Steel 19%, Plastic 6%, Other 2%
• Complies with the RoHS directive
• High recyclability rate

WATERPROOFING

• IP 66 waterproofing in accordance with the standard EN 60 529
• Extruded silicone gasket
• Breathing system with activated carbon filter

MECHANICAL INTERFACES

• Suspended with threaded Nipple Ø 34 pdg (G1’’), L 32 mm
• Top mounted with male bracket fastening Ø 49 mm L 70 mm

DIMENSIONS

Ø: Ysalis: 600 mm / Ysalis U-bracket: 690 mm
Height: Ysalis: 400 mm / Ysalis U-bracket: 1230 mm
Weight: 8kg
Scx: 0,17m2

CONNECTIVITY

• 0-10V
• DALI
• SR+Zhaga (D4I)
• Bluetooth
