Lighting

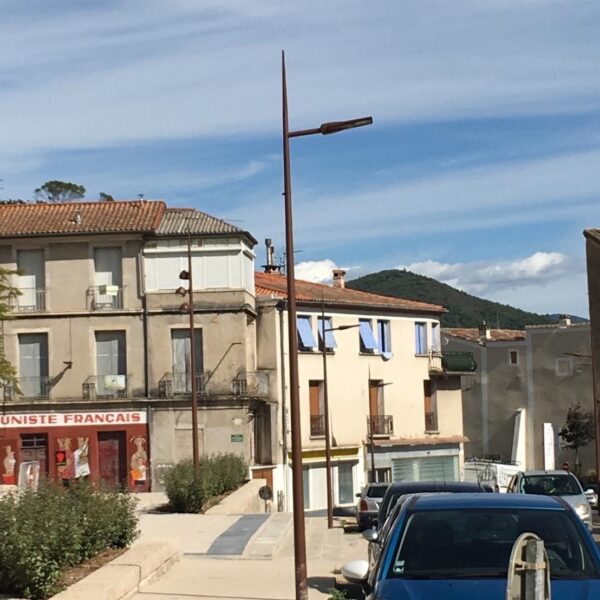

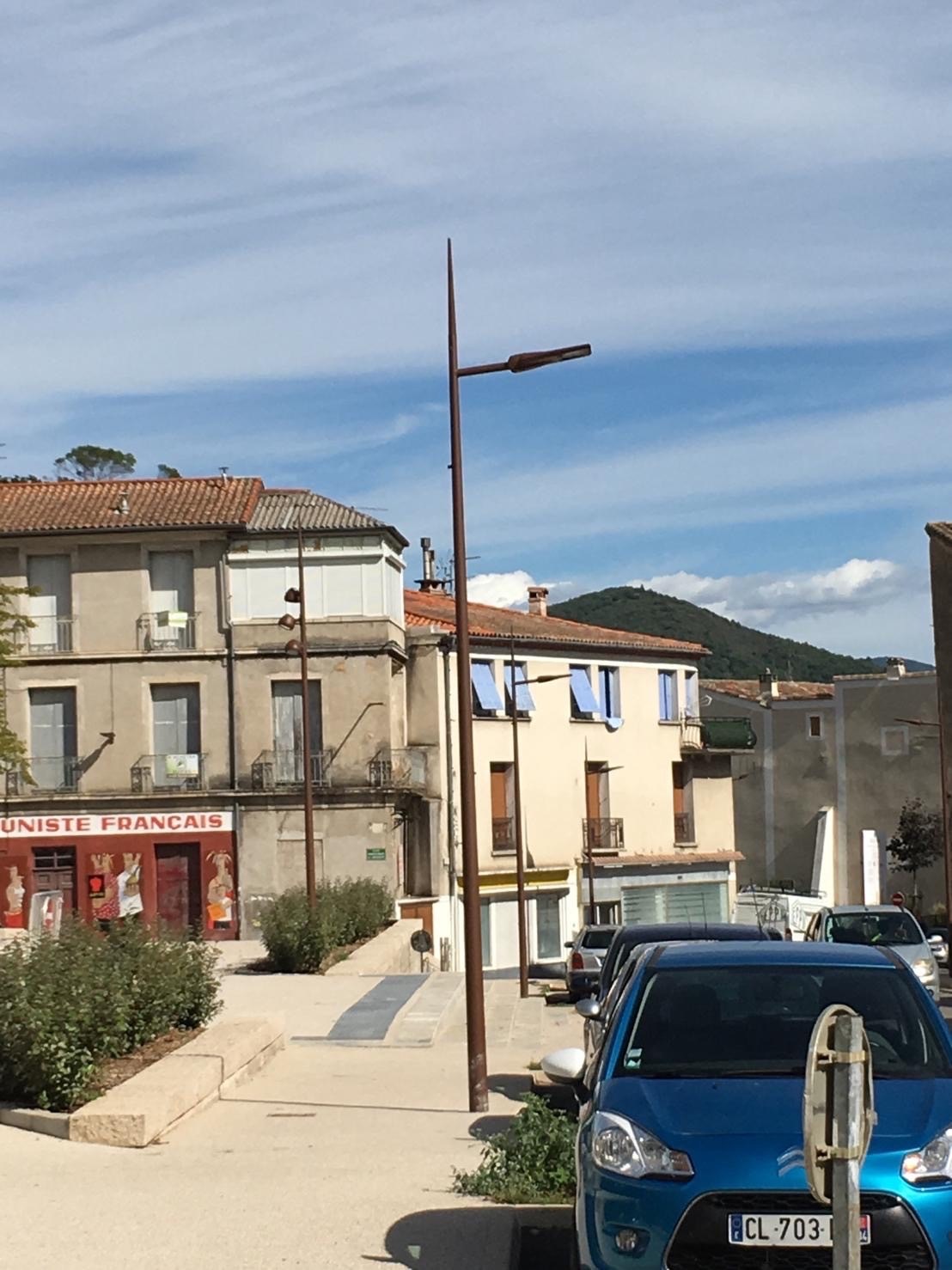

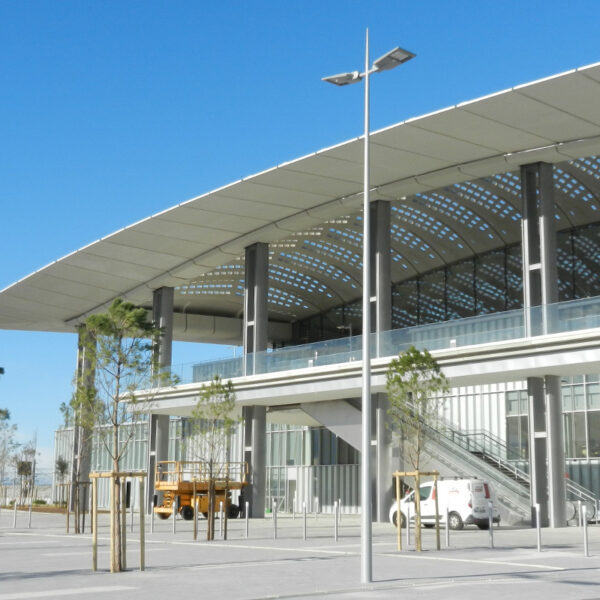

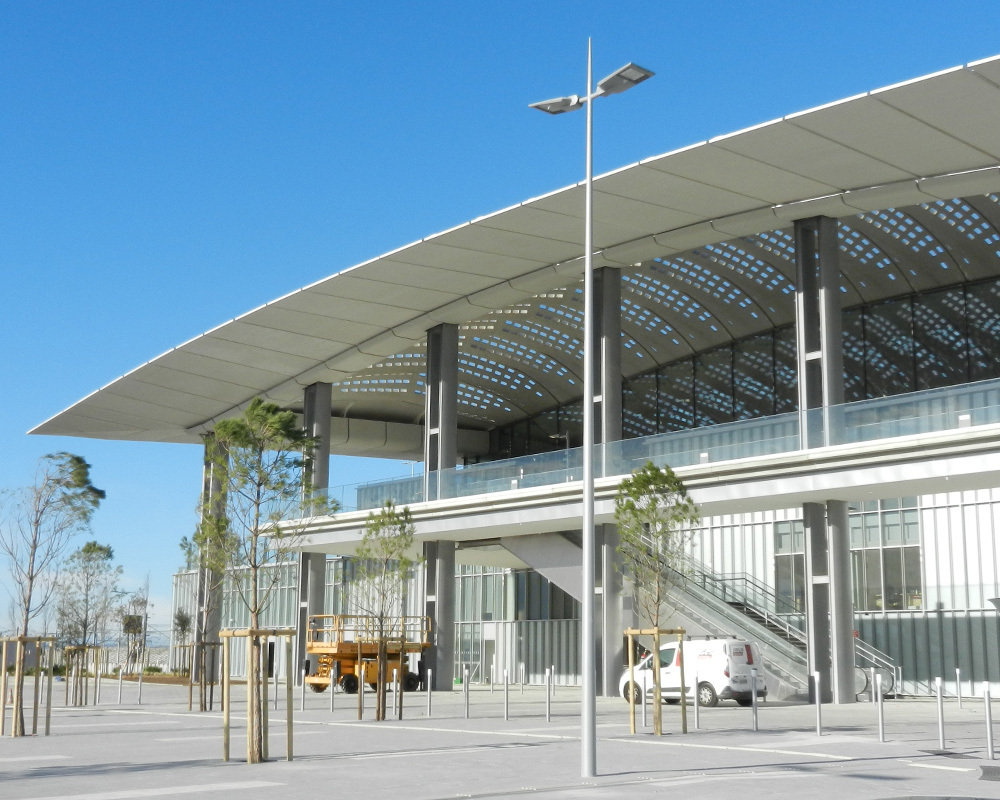

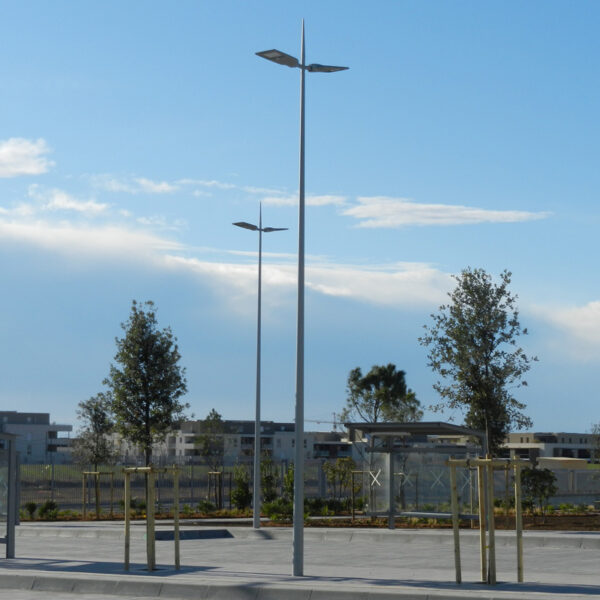

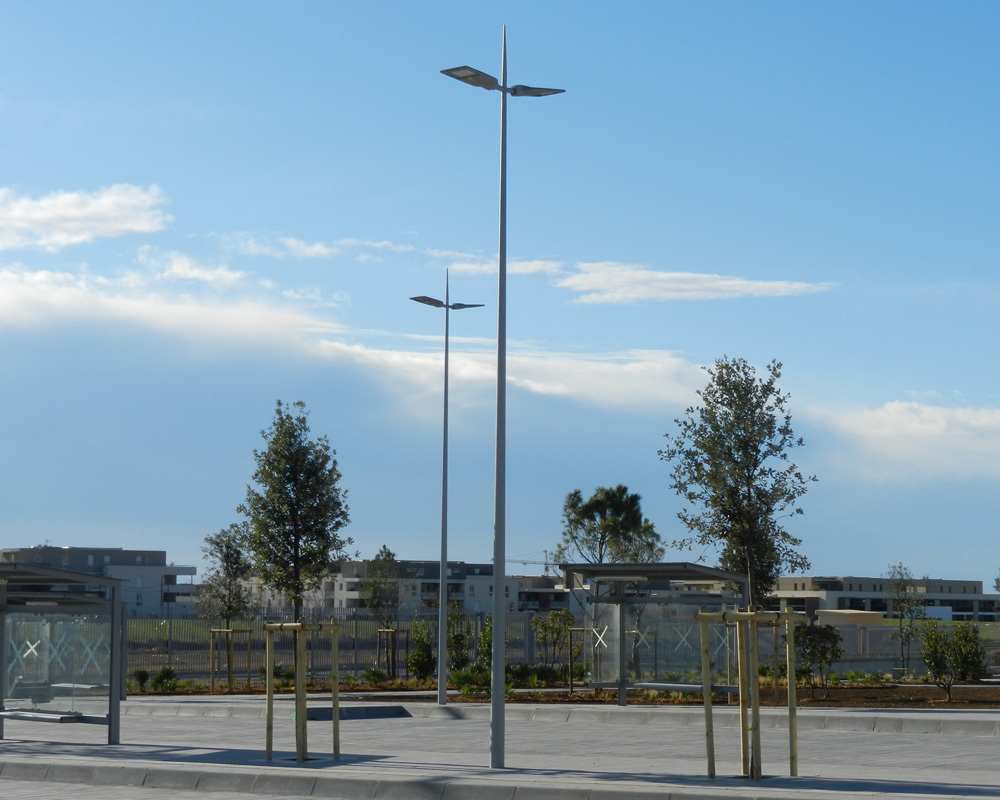

ZELDA

design by Eclatec

The ZELDA luminaire is part of the LED technology adventure; it even constitutes a successful outcome in terms of simplicity, efficiency and performance.

Its integrated ball (Easylink ®) ensures rapid and elegant adaptation to top or lateral mounting. The upper cover, removable and interchangeable, accepts all LED sources and control equipment.

ZELDA is available in three sizes and two finishes (S, essential and X, excellence). The S level meets the demand for a maintenance- free fixture whereas the X version allows easy maintenance without tools.

ZELDA, when art walks hand-in-hand with technological progress.

APPLICATIONS

Icon cycle-paths

Cycle paths

Icon Footpaths

Footpaths

Icon Residential streets

Residential streets

Icon Main roads

Main roads

Icon Terrain lighting

Terrain lighting

Icon Residence areas

Residence areas

Icon Highways

Highways

Icon Parking lots

Parking lots

APPLICATIONS

APPLICATIONS

• Mounting: top and side entry
• Zelda 1: Pedestrian areas, cycle paths, residential areas, street lighting Zelda 2 and 3: Roads, secondary urban and inter-urban streets
• Recommended heights:
- Zelda 1: 4 to 6 m
- Zelda 2: 7 to 10 m
- Zelda 3: 7 to 12 m

DESCRIPTION

  • Luminaire available in 3 sizes: Zelda 1, Zelda 2 and Zelda 3
  • Bottom and canopy X Version: with opening paddle; S version: screw closure
  • Body, cover, sleeve and paddle (X version) in die-cast aluminium
  • Bowl in thermally tempered and screen printed glass
  • Polyester powder coating, any colour available
  • IP 66
  • IK 10
  • Class I or II
  • Standard BLS LED strips equipped with QUADRALENS lenses
  • Colour temperatures: 2400 K, 2700 K, 3000 K or 4000 K

CITIZEN REFERENCE POINTS

• Materials used:
- ZELDA 1: Aluminium 69%, Glass 9%, Steel 5%, Plastic 1%, Other 16%
- ZELDA 2: Aluminium 66%, Glass 11%, Steel 4%, Plastic 2%, Other 17%
- ZELDA 3: Aluminium 67%, Glass 12%, Steel 2%, Plastic 1%, Other 18%
• Complies with the RoHS directive
• High recyclability rate

WATERPROOFING

• IP 66 waterproofing in accordance with the standard EN 60 529
• Extruded silicone seal
• Cable gland
• Breathing system with activated carbon filter

MECHANICAL INTERFACES

  • Top rotating arm built into the luminaire
    - Top or Side Ø 60 mm, Ø 49 mm
    - Top Ø 76 mm
    Tilts

    - TOP: 0°; +5°; +10°;+15°; +20°
    - SIDE 0°; -5°; -10°;-15°; -20°

  • Locking using 2 pressure screws

DIMENSIONS

Zelda 1
• Lenght 637 mm, Width 360 mm, Height 126mm
• Weight 7,5 kg
• Scx 0,06m2

Zelda 2
• Lenght 718 mm, Width 430 mm, Height 126mm
• Weight 9,5 kg
• Scx 0,08m2

Zelda 3
• Lenght 802 mm, Width 470 mm, Height 126mm
• Weight 13 kg
• Scx 0,08m2

CONNECTIVITY

• 0-10V
• DALI
• SR+Zhaga (D4I)
• Bluetooth
