ZESTO

design by Jean-Marie Duthilleul

Architectural luminaire par excellence, ZESTO is comfortable in all urban lighting roles.

A successful design bringing together volumes that, by nature, fusing into a configuration combining just the right amount of strength and softness; from this balance arises the soul of a well-conceived product, giving the town a signature that is both calming and up-to-date.

ZESTO is available in one size. Several specific models of cross-arms, brackets and bollards can be used with it.

APPLICATIONS

Icon cycle-paths

Cycle paths

Icon Footpaths

Footpaths

Icon Residential streets

Residential streets

Icon Residence areas

Residence areas

APPLICATIONS

APPLICATIONS

• Mounting: side and catenary
• Pedestrian areas, cycle paths, residential areas, street lighting
• Recommended heights: 4 to 8 m

DESCRIPTION

• Body and equipment compartment in die-case aluminium
• Bowl in thermally tempered and screen printed glass
• Polyester powder coating, any colour available
• IP 66
• IK 08
• Class I or II
• Luminaire pre-wired in the factory (6 m)
• Standard BLS LED strips equipped with QUADRALENS lenses
• Colour temperature: 2400 K, 2700 K, 3000 K or 4000 K

CITIZEN REFERENCE POINTS

• Materials used:
- Aluminium 66%, Glass 24%, Steel 5%, Other 5%
• Complies with the RoHS directive
• High recyclability rate

WATERPROOFING

• IP 66 waterproofing in accordance with the standard EN 60 529
• Extruded pneumatic silicone gasket
• Cable gland with anchoring device
• Breathing system with activated carbon filter

MECHANICAL INTERFACES

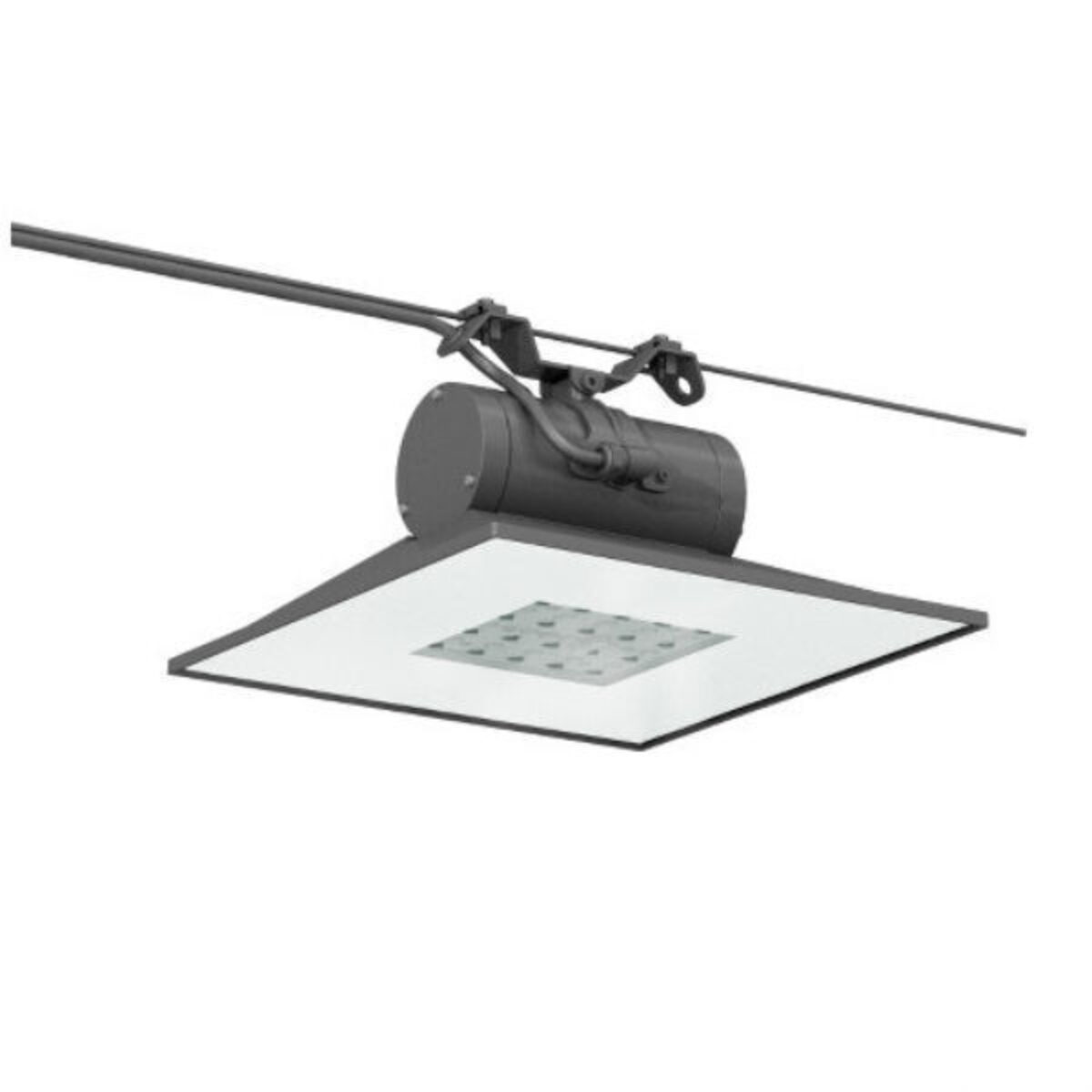

• Suspended catenary
• LL: Smooth side with pass through sleeve for Ø 60 mm arm
• Tilts from -15° to +15° in 5° steps
• Standard tilt: 0°

DIMENSIONS

Length: 520mm Width: 500mm Height: 216mm
Weight: 13kg
Scx: 0,26m2

CONNECTIVITY

• 0-10V
• DALI
• SR+Zhaga (D4I)
• Bluetooth
